Microswitch fifth bow latch: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the soft top cover.
  2. Remove the covering shell.
  3. Remove the bolts securing the microswitch.
  4. Cut the cable tie securing the connector.
  5. Unplug the connector.

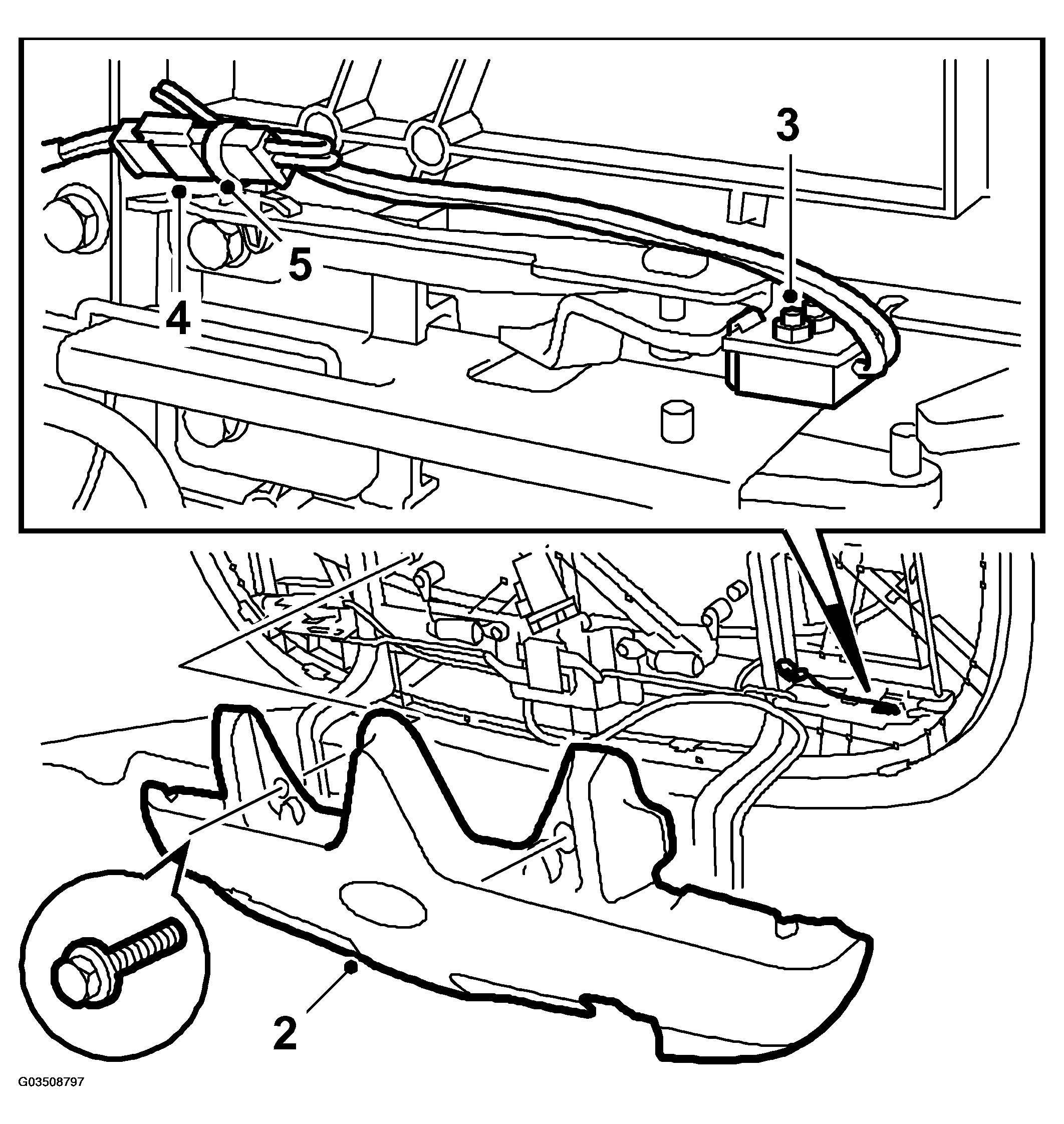

    6. Fig 1: Illustration For Steps 2-5
    G03508797Courtesy of SAAB-SCANIA OF AMERICA, INC.
