Microswitch fifth bow latch: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the microswitch and tighten the bolts.
  2. Plug in the connector.
  3. Check that the lever moves easily and comes into contact with the microswitch.
  4. Secure the connector with a cable tie.
  5. Fit the covering shell and tighten the bolts.

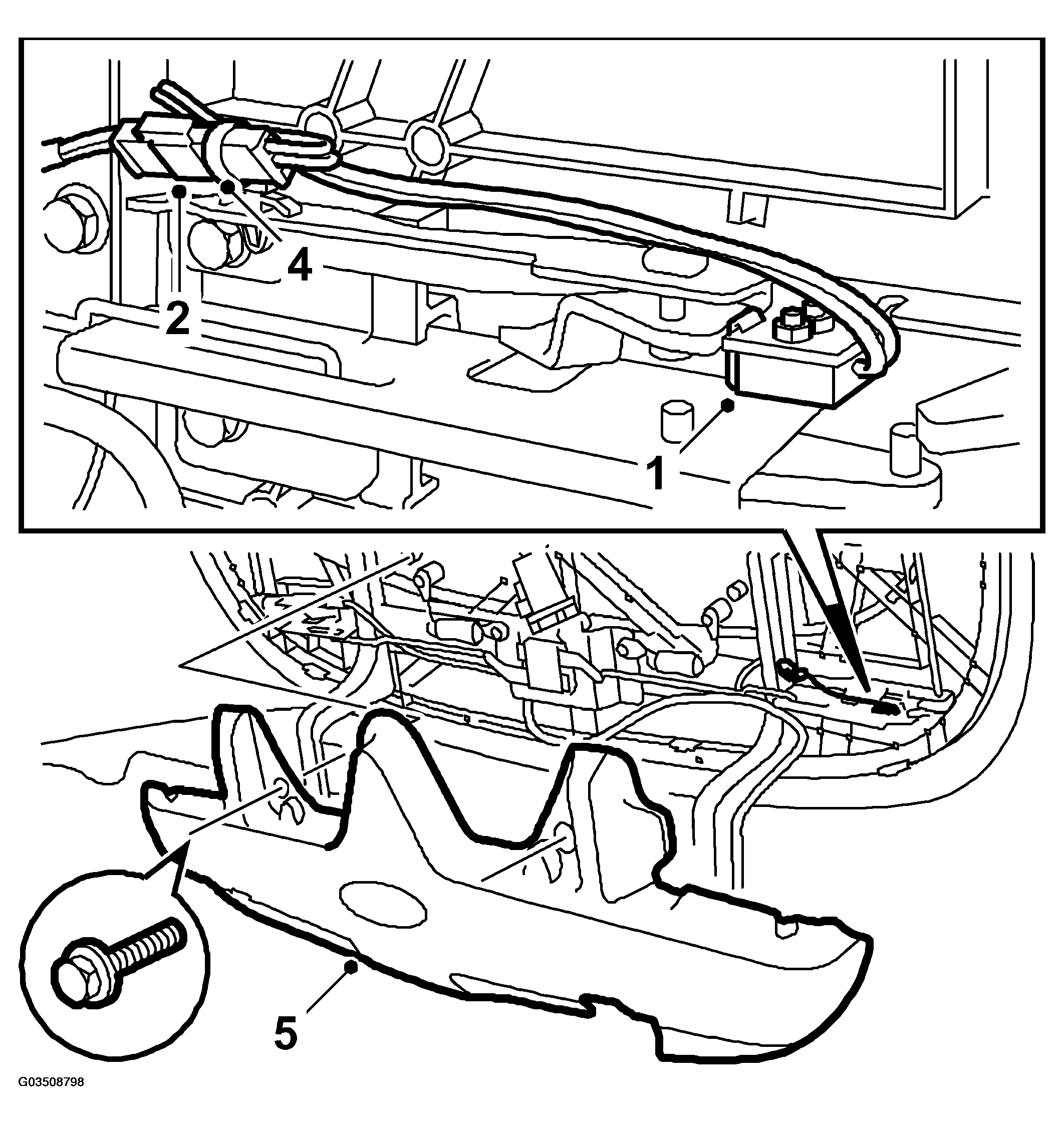

    6. Fig 1: Illustration For Steps 1-2, 4-5
    G03508798Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Connect the diagnostics tool and erase any diagnostic trouble code.
