Lock fitting/switch windscreen crossmember: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The following describes removal of the microswitch on the left side. The right microswitch is removed using the same method.

Lower the soft top.
Remove the sun visor and the visor support.
Loosen the windscreen frame seal so that the bolts securing the top part of the windscreen moulding can be accessed.
Remove the bolts.
Slightly pull down the windscreen frame moulding and

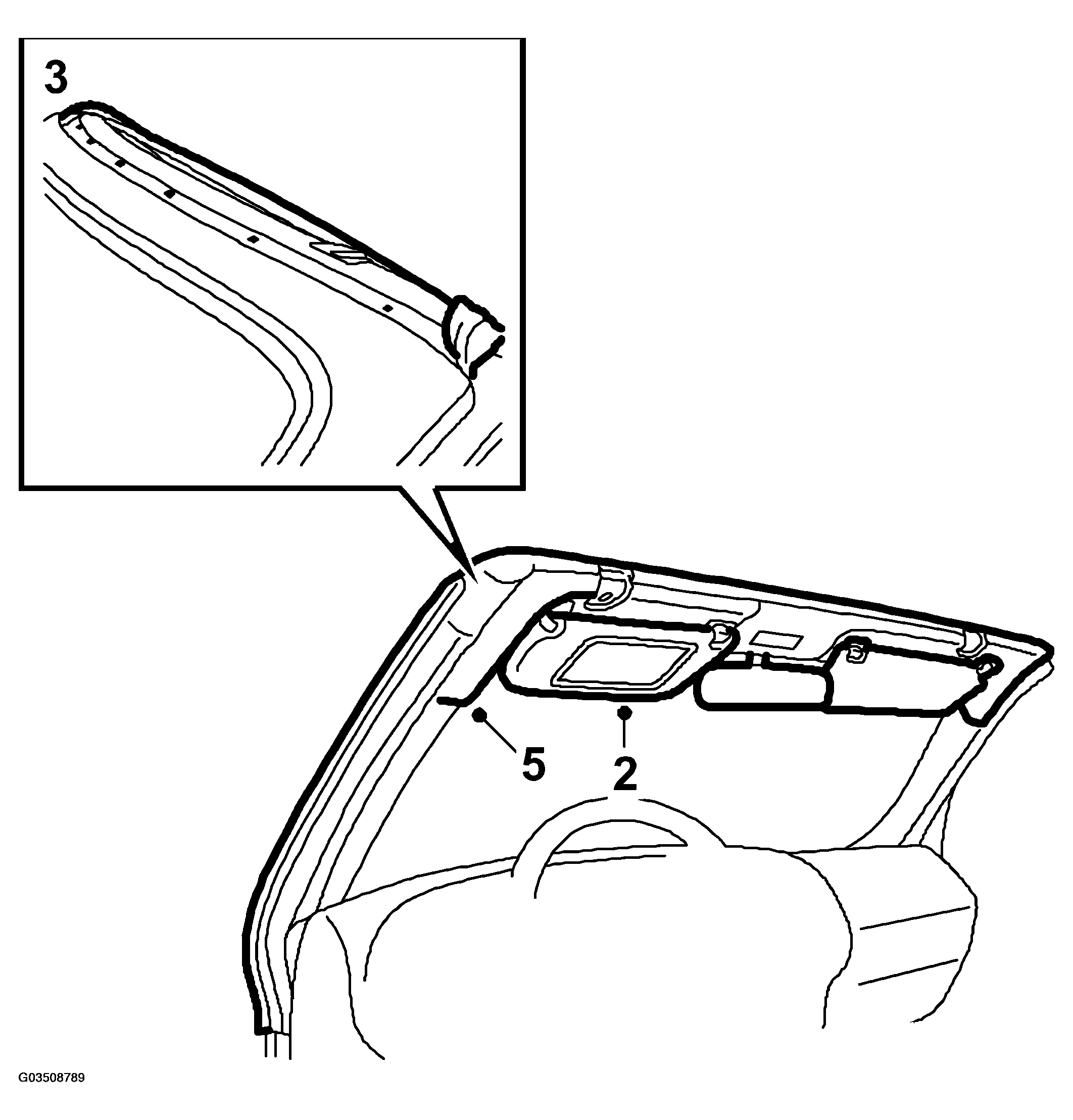

Fig 1: Illustration For Steps 2, 3 & 5

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolts that secure the lock fitting.
Unplug the connector and remove the lock fitting.
Bend out the clips and pull out the switch.

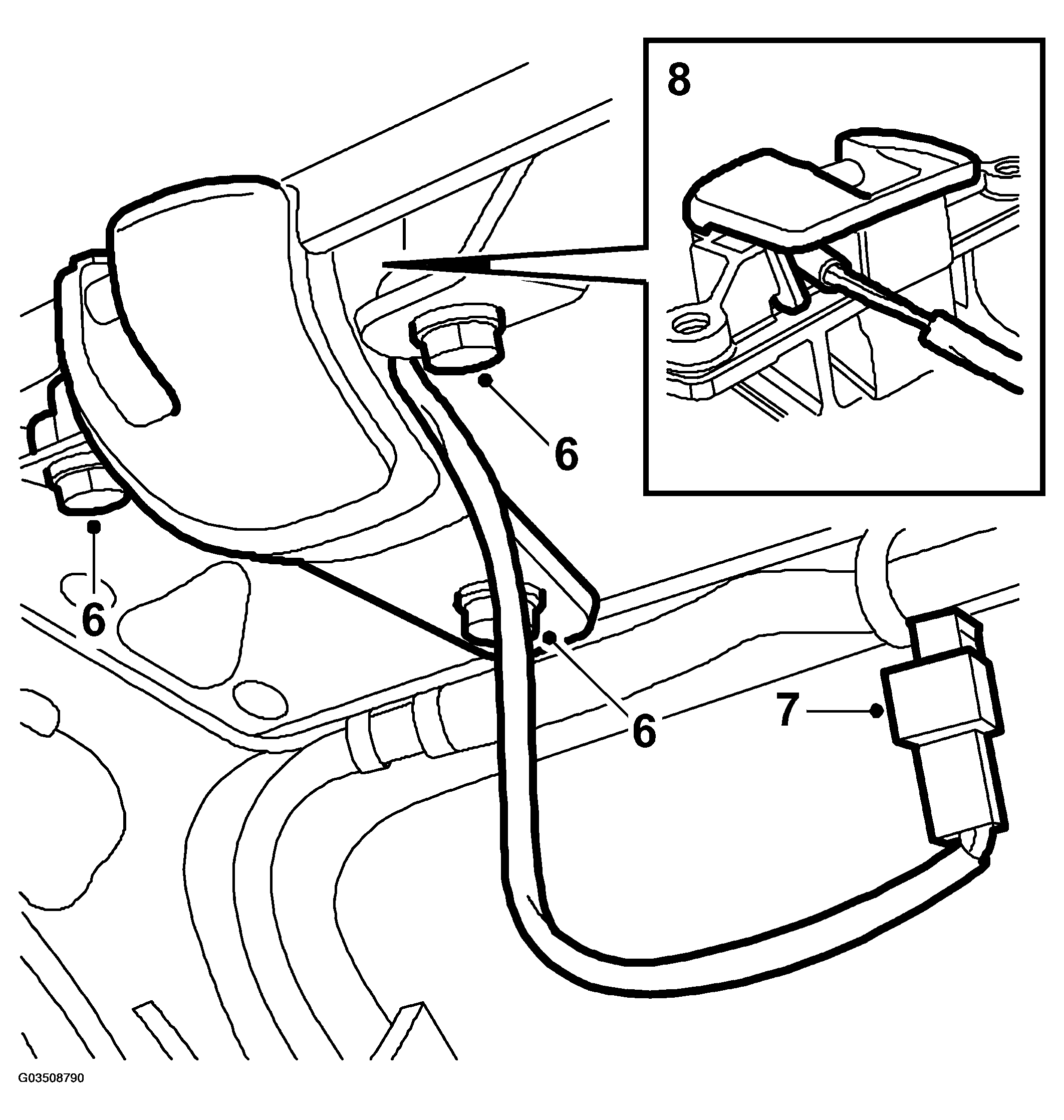

Fig 2: Illustration For Steps 6-8

Courtesy of SAAB-SCANIA OF AMERICA, INC.
