Lock fitting/switch windscreen crossmember: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the switch in the lock fitting and bend back the clips.
  2. Fit the lock fitting on the windscreen frame and tighten the bolts.
  3. Plug in the connector.

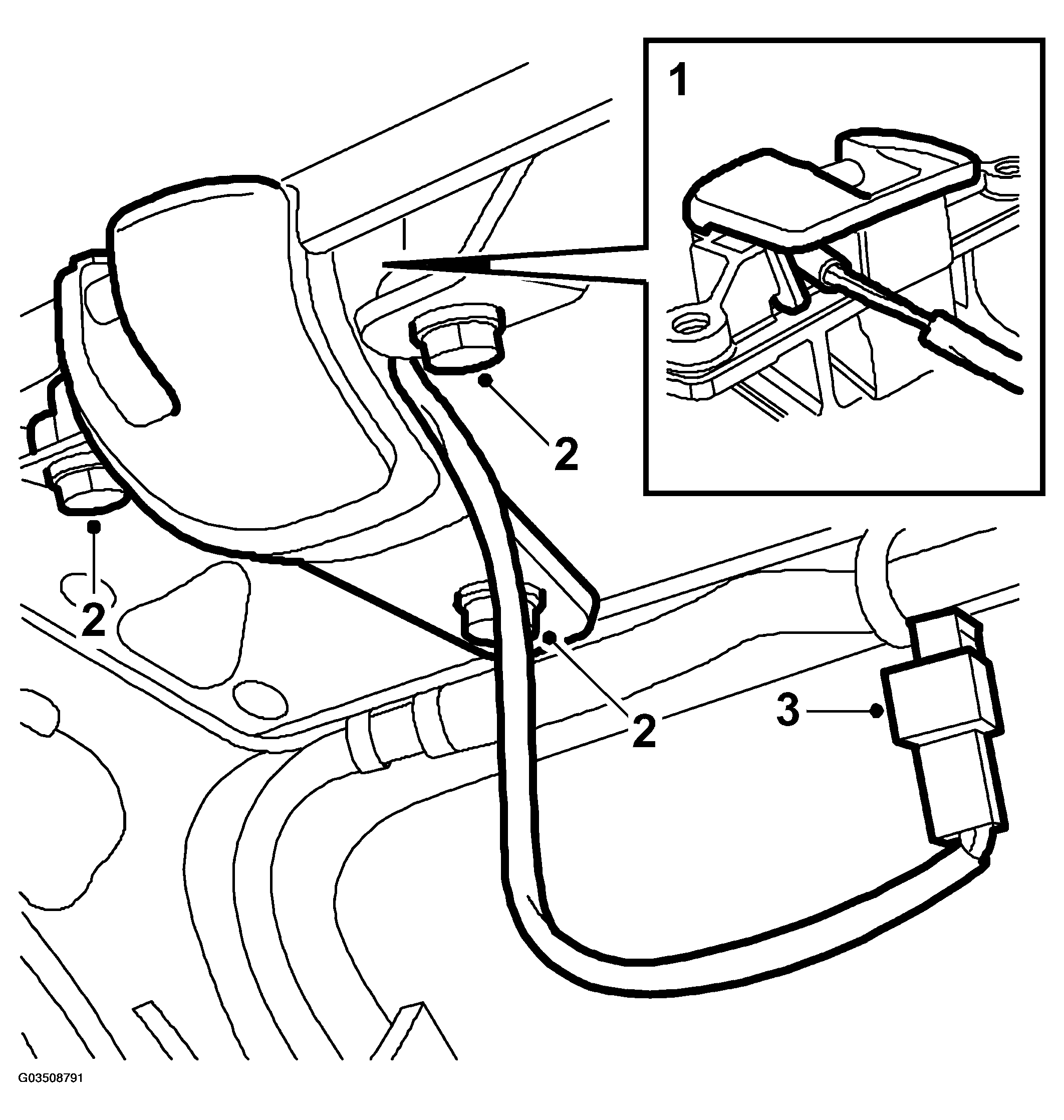

    4. Fig 1: Illustration For Steps 1-3
    G03508791Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the upper part of the windscreen frame moulding and then tighten the bolts.
  5. Refit the windscreen frame sealing. see WINDSCREEN FRAME SEALING, CV

    Use only soapy water to facilitate fitting of the seal  .

  6. Fit the lower part of the windscreen frame moulding.
  7. Refit the sun visor and the support.

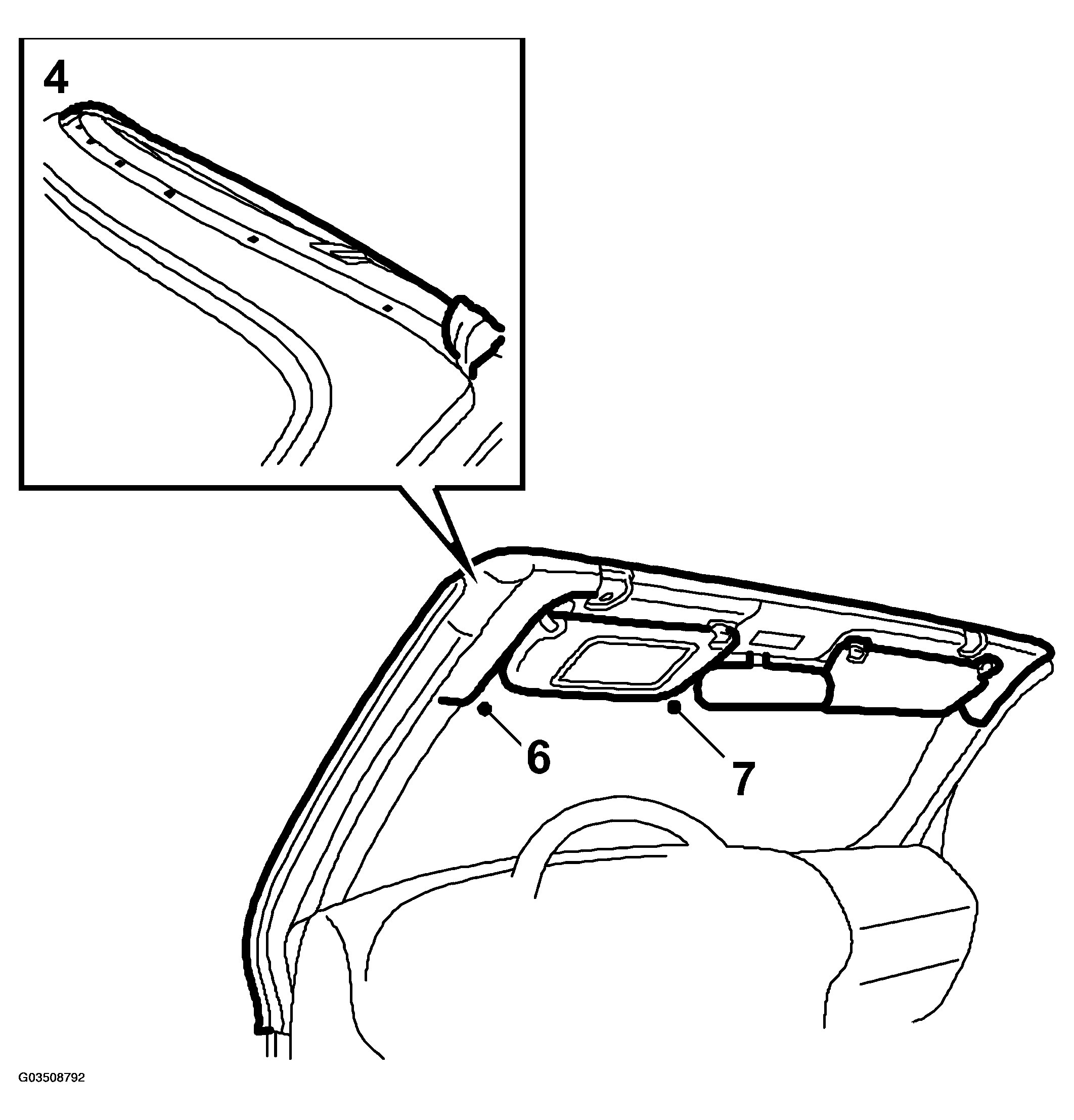

    8. Fig 2: Illustration For Steps 4, 6 & 7
    G03508792Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Connect the diagnostics tool and erase any diagnostic trouble code.
