Interior lighting rear seat: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the light by carefully bending it loose with a small screwdriver. Protect the guide strap cover from any damage.
  2. Remove the glass from the bayonet fitting and retain the bulb.
  3. Unplug the connector and remove the bulb holder.

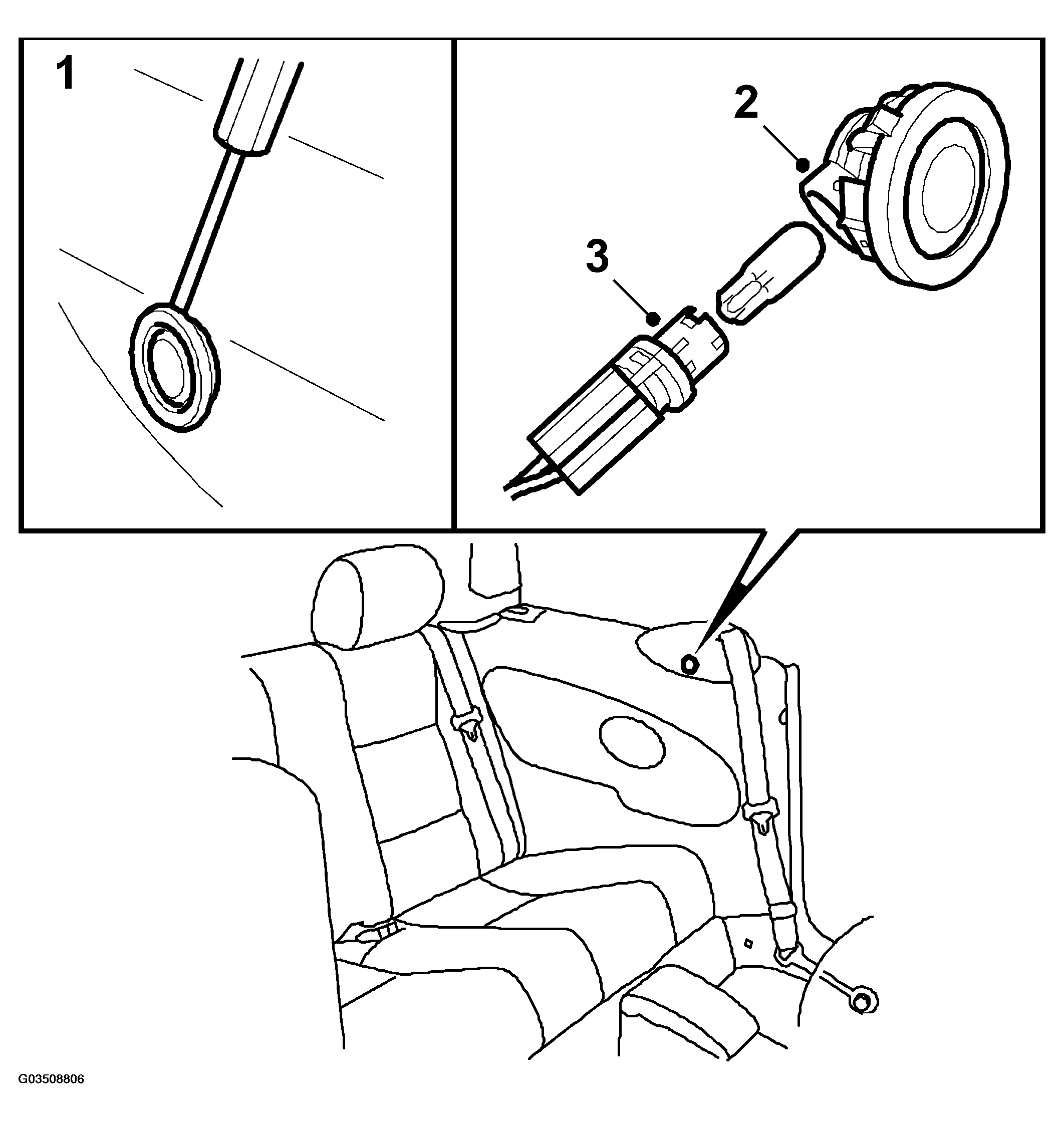

    4. Fig 1: Illustration For Steps 1-3
    G03508806Courtesy of SAAB-SCANIA OF AMERICA, INC.
