Interior lighting rear seat: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the connector.
  2. Fit the bulb and the glass.
  3. Fit the light in the strap guide cover.

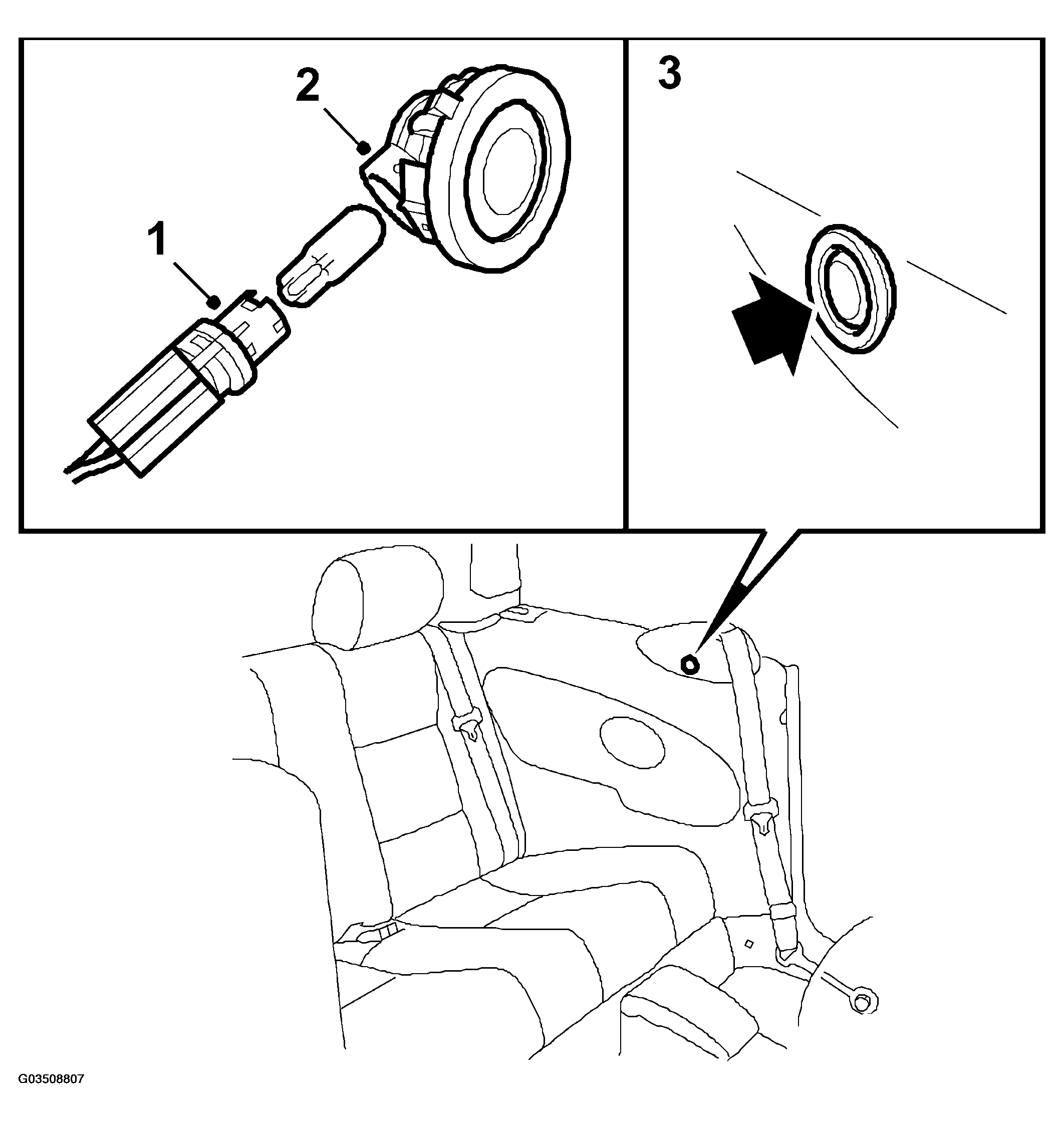

    4. Fig 1: Illustration For Steps 1-3
    G03508807Courtesy of SAAB-SCANIA OF AMERICA, INC.
