Fifth bow: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove soft top assembly. see Outer roof , headlining and rear window Remove the lock fittings.
  2. Remove the cable for the fourth bow and the window guide.
  3. Mark the position of the screw heads on the fifth bow mountings and remove the screws.
  4. Lift away the fifth bow.

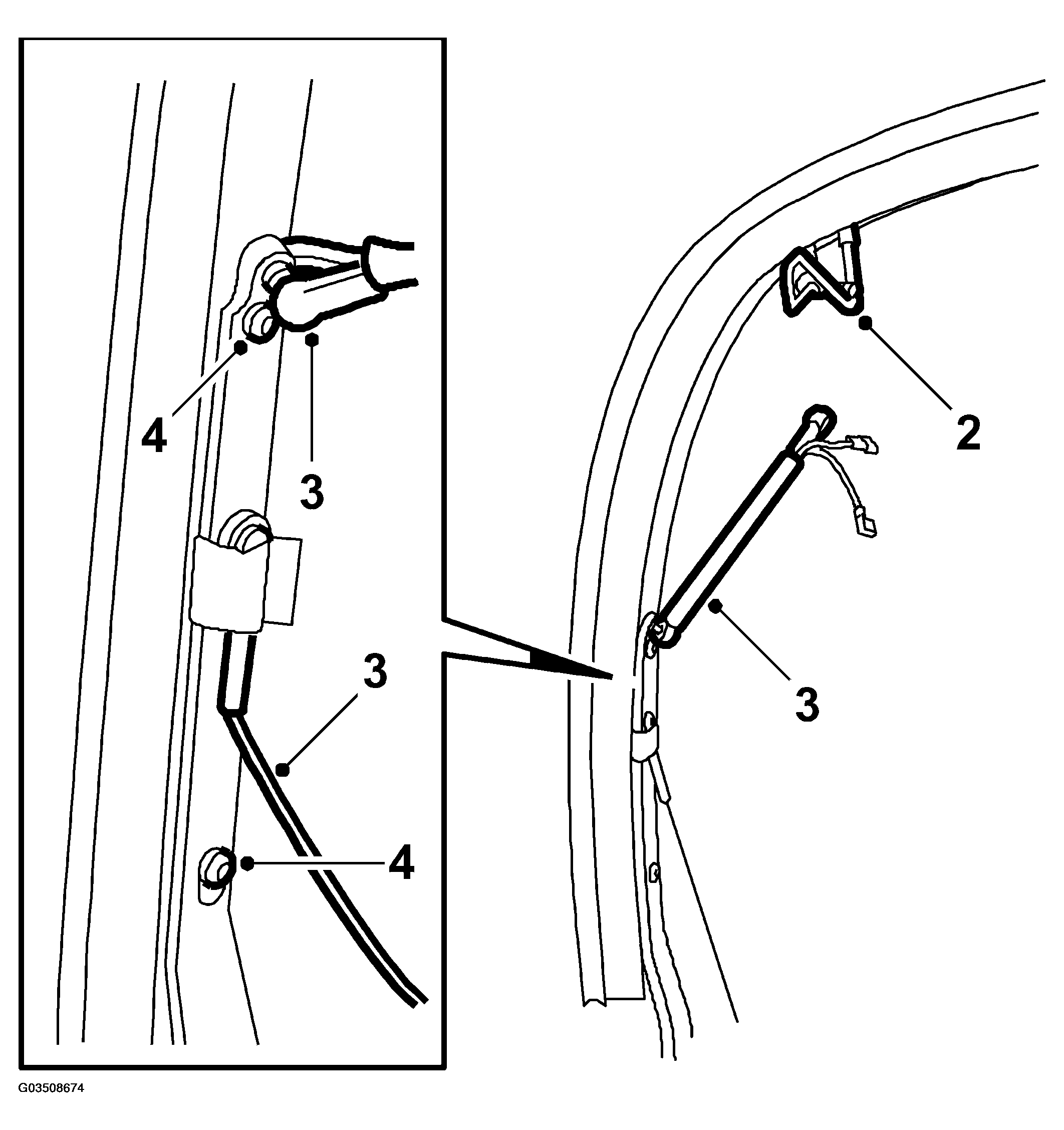

    5. Fig 1: Illustration For Steps 2-4
    G03508674Courtesy of SAAB-SCANIA OF AMERICA, INC.
