Fifth bow latch: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the latch and push the hook into the reinforcement bracket. Tighten the lower bolt.
  2. Fit the access flap striker plate. Make sure that the guide ends up in the latch groove. Tighten the upper and lower bolt.
    IMPORTANT: Check that the lever for the microswitch moves easily.
  3. Plug in the connectors and fit cable ties.
  4. Fit the operating arm to the latch and press on the clip.

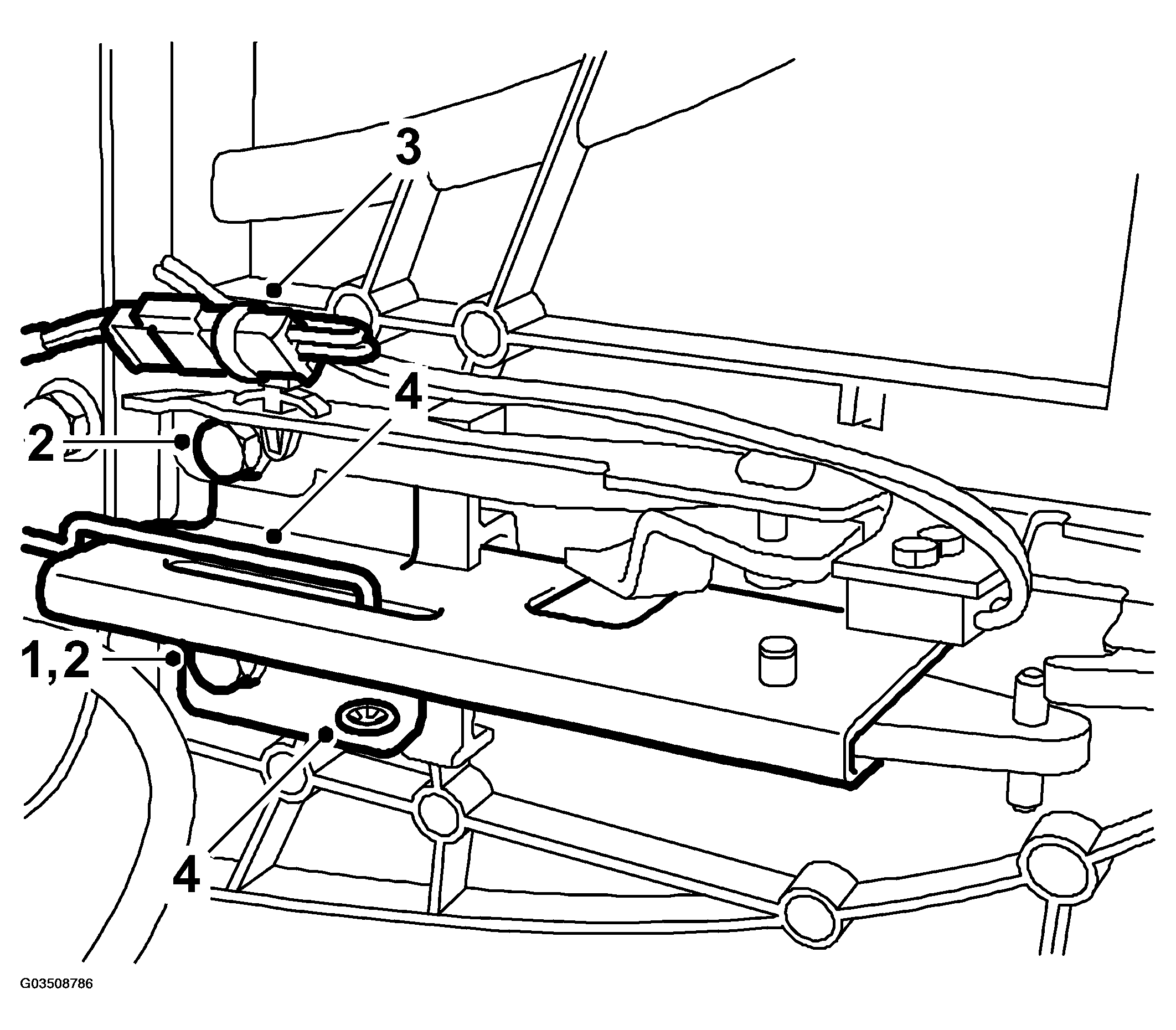

    5. Fig 1: Illustration For Steps 1-4
    G03508786Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Connect the diagnostics tool and erase any diagnostic trouble code.
  6. Refit the shell.
