Fifth bow latch motor: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the latch motor and tighten the bolts. Respective collision cable end sleeves pointing at each other. Fit new cable ties.

    Tightening torque, two upper bolts: 14 N.m (10.3 lbf ft)

    Two lower bolts: 7 N.m (5.2 lbf ft)

  2. Fit the operating arms to the motor.
  3. Plug in the connector.

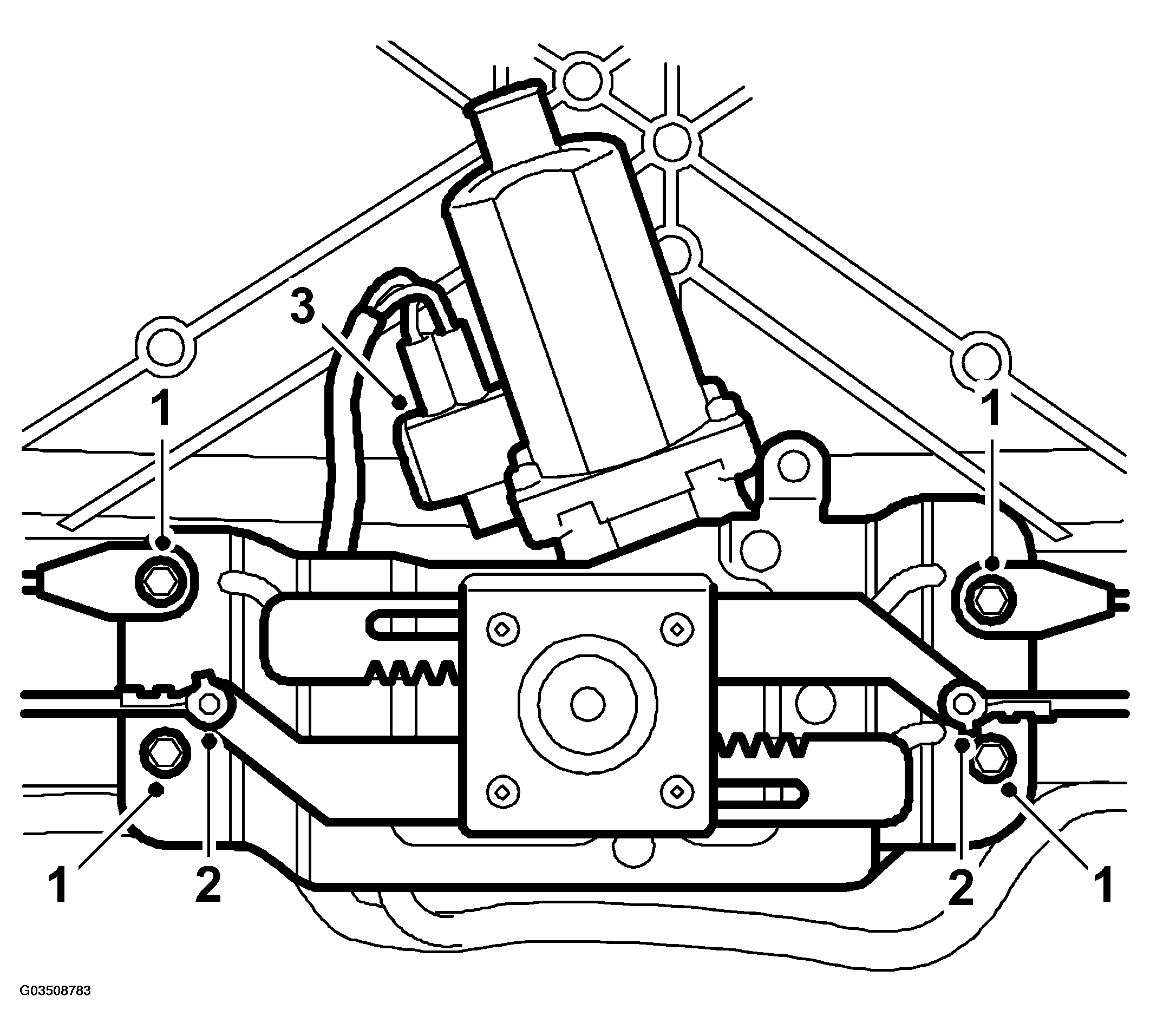

    4. Fig 1: Illustration For Steps 1-3
    G03508783Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Run the soft top up and down a few times and check the function.
  5. Refit the shell.

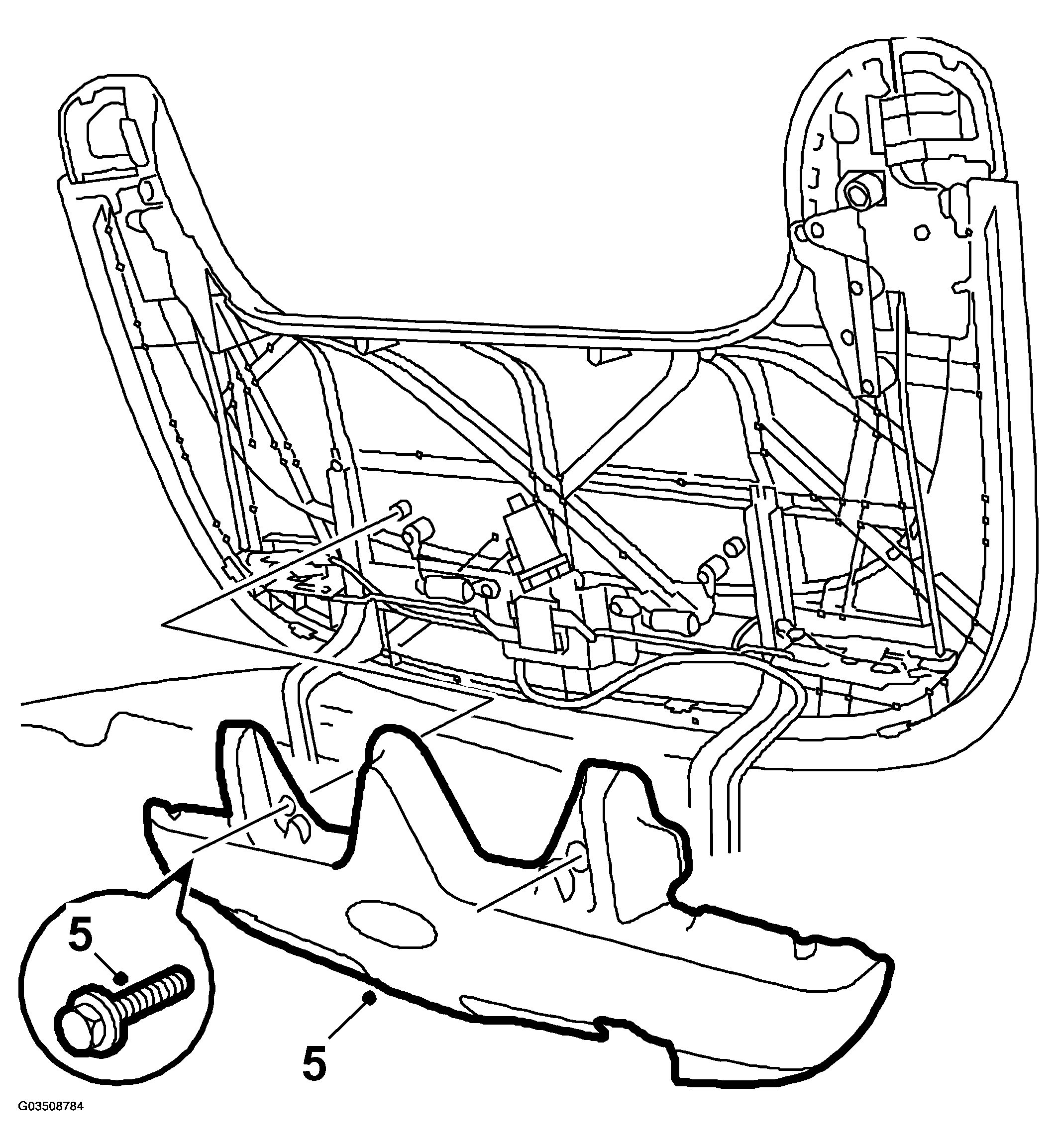

    Fig 2: Illustration For Step 5
    G03508784Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Adjust the lock function. see ADJUSTING THE FIFTH BOW LOCK .
  7. Connect the diagnostics tool and erase any diagnostic trouble code.
  8. Remove the protection and run the soft top to closed position and lock it against the windscreen frame.
