Control linkage between front and center rails: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the guide pin and stop lug in the second bow.
  2. Check that the elastic band lies inside the rear link. Fit the stub axle and clip to the front rail.
  3. Fit the stub axle to the center rail. The stub axle can only be fitted from the outside.
  4. Fit the stub axle to the rear rail. The stub axle can only be fitted from the outside.

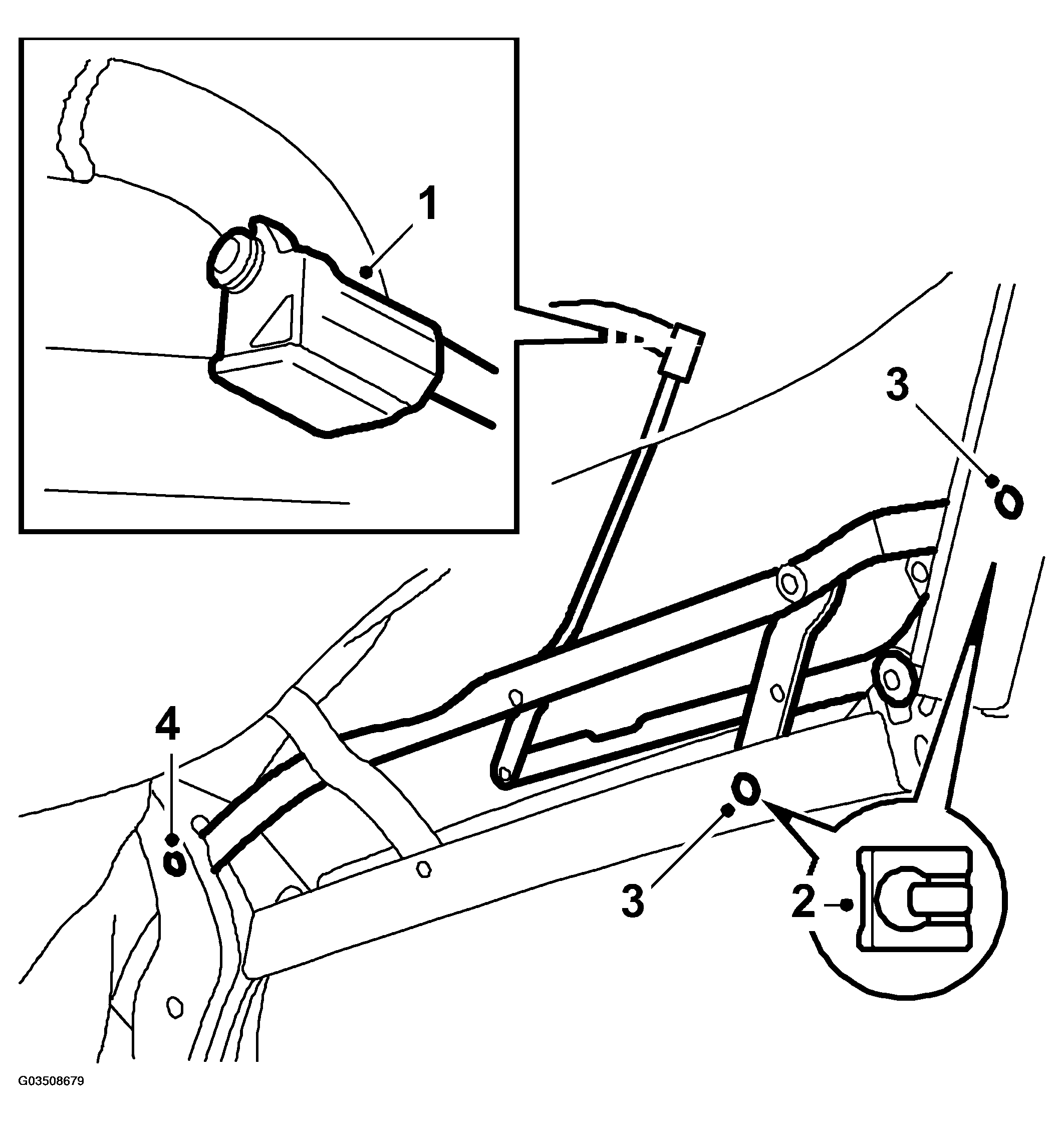

    5. Fig 1: Illustration For Steps 1-4
    G03508679Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit a pop rivet which secures the elastic band to the rear rail.

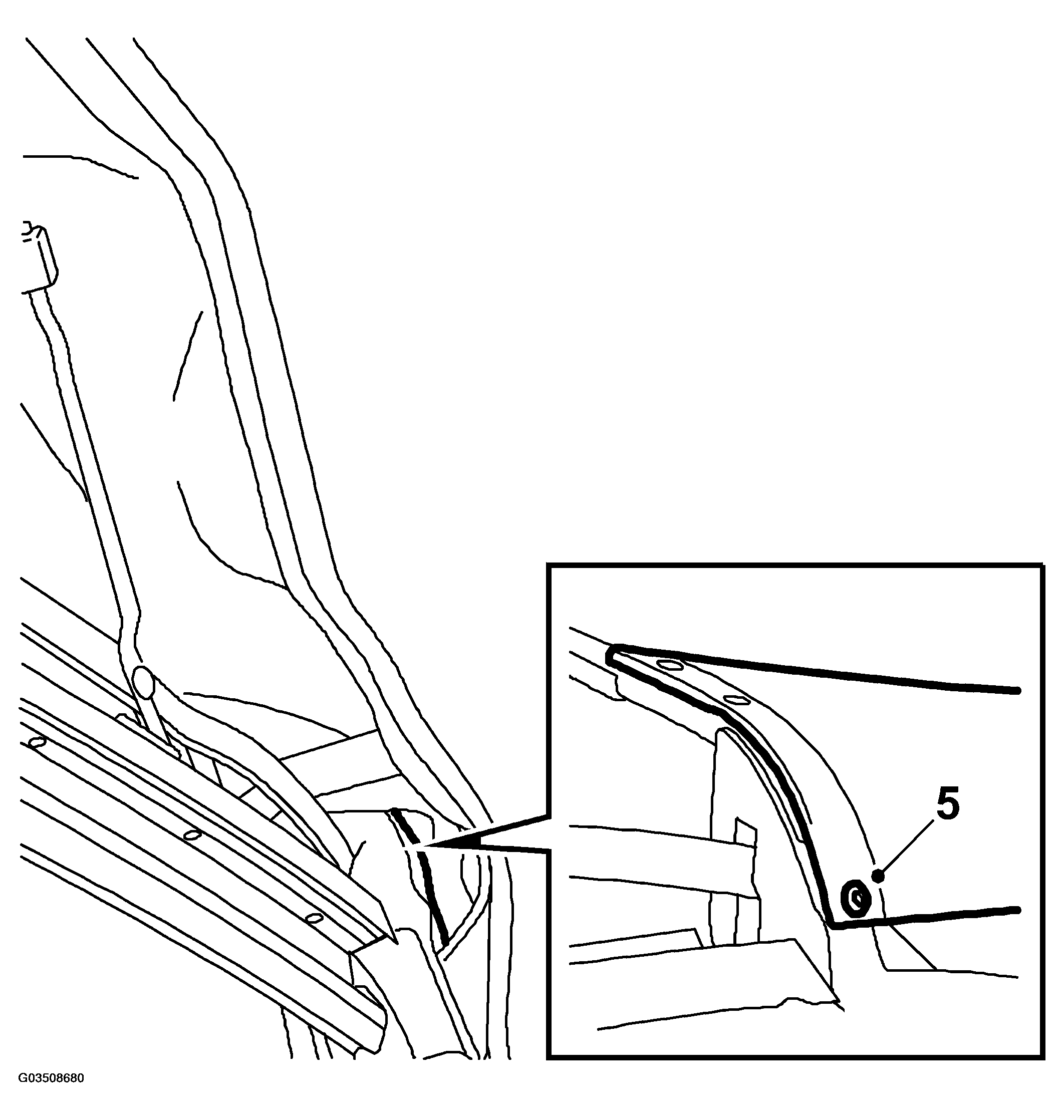

    Fig 2: Illustration For Step 5
    G03508680Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the screw for the headlining.
  7. Fit the seal retainers and the seals.

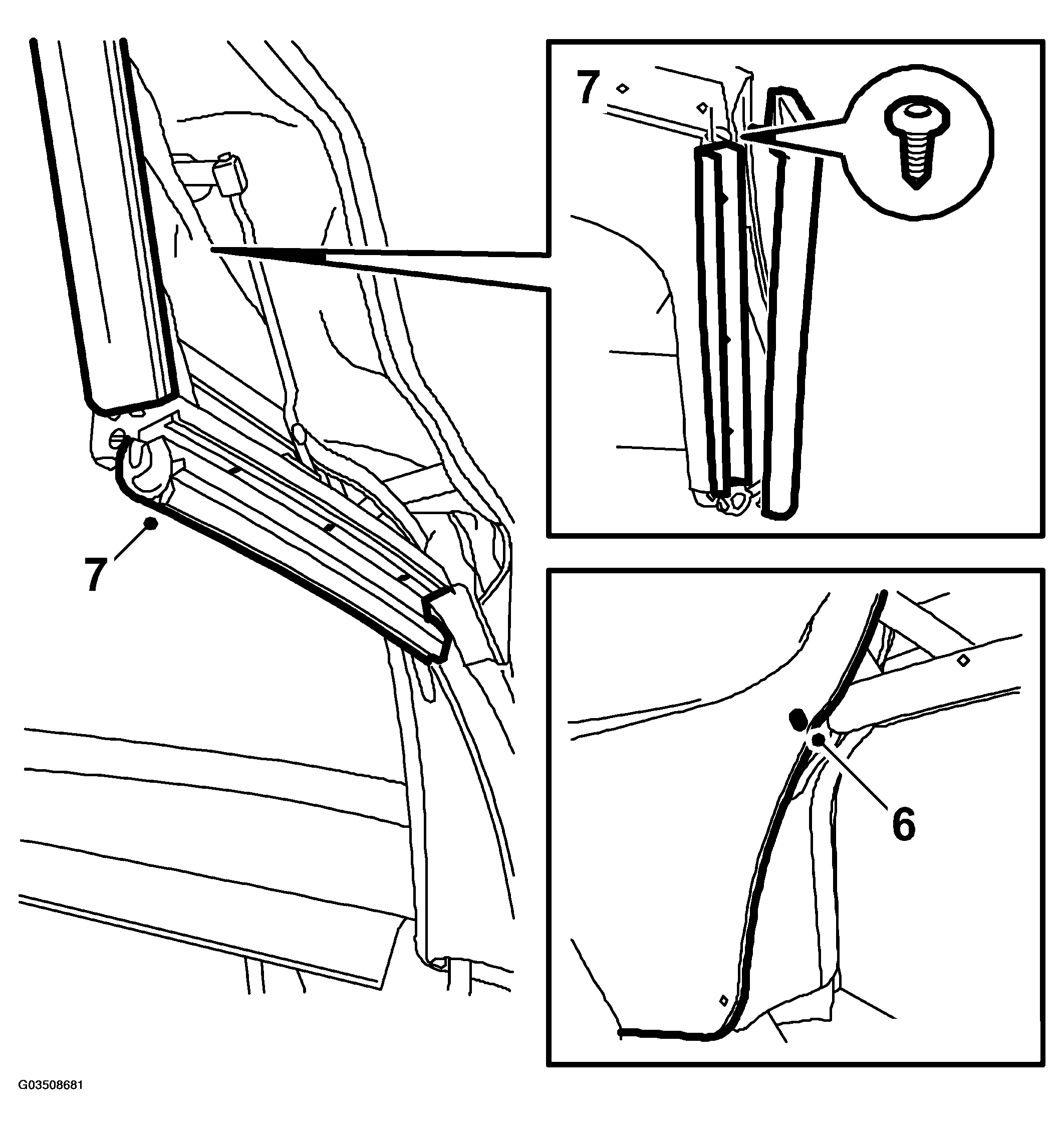

    8. Fig 3: Illustration For Steps 6-7
    G03508681Courtesy of SAAB-SCANIA OF AMERICA, INC.
