Adjustment points for side window

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment 6. Setting the side window upper stop .

Adjustment affects the side window height position in its upper position.

Adjustment 7. Setting the side window lateral fixing .

Adjustment affects the side window lateral position at the upper edge.

Adjustment 8. Setting the side window longitudinal fixing .

The adjustment affects the side window longitudinal position.

Adjustment 9. Setting the side window extra upper stop .

Adjustment affects the side window height position in its upper position.

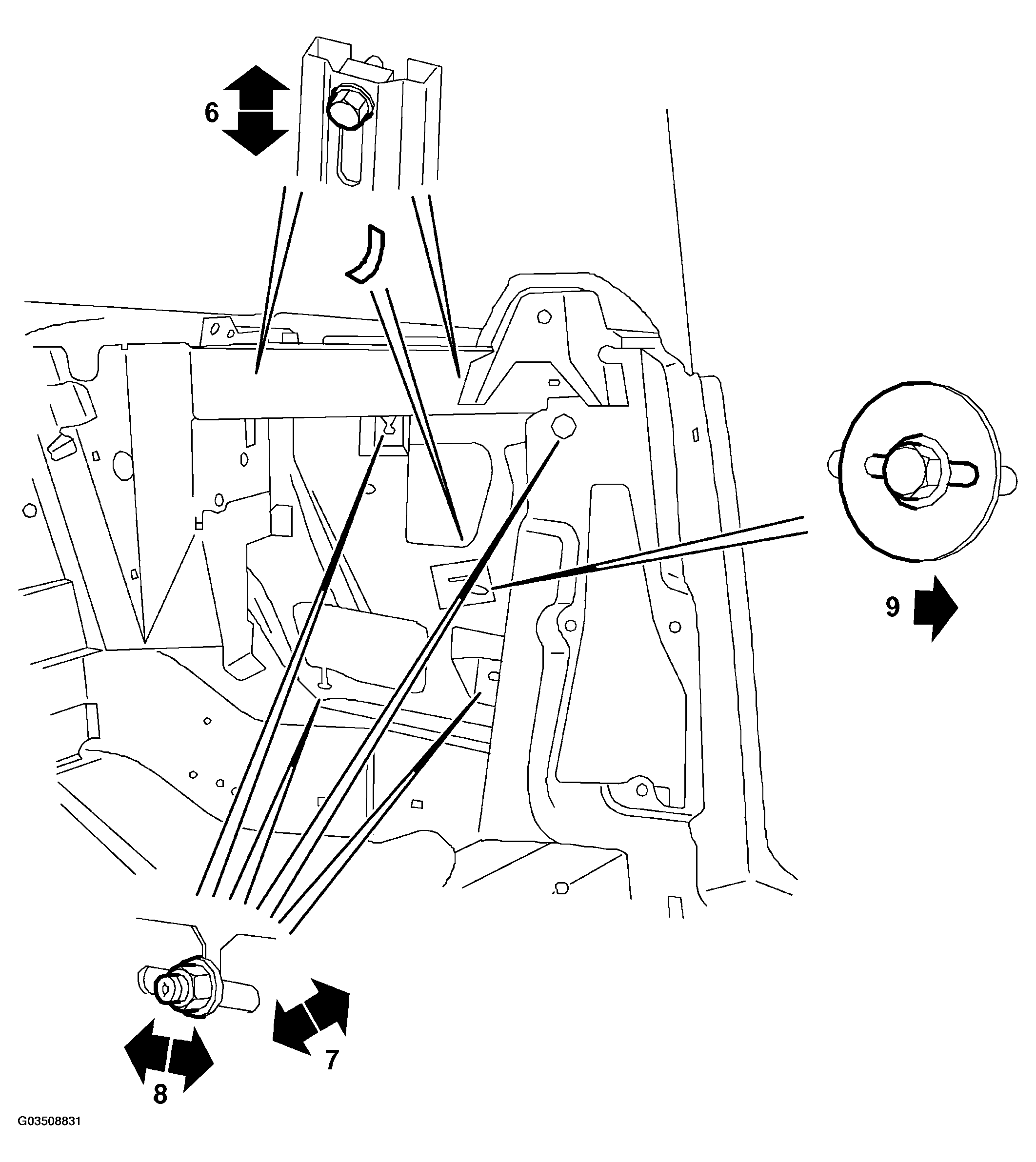

Fig 1: Illustration For Adjustments 6-9

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: There are two versions of the side window upper stop:

A. Before VIN number W7055419/X7002872 there were only two upper stops, ADJUSTMENT 6.
C. After VIN number W7055419/X7002872 there is an extra upper stop, ADJUSTMENT 9, which is added to the former upper stop, ADJUSTMENT 6.
