Front seal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The front seal can be adjusted laterally at the front edge.

  1. Loosen the screw securing the retainer.
  2. Adjust laterally and tighten the screw.

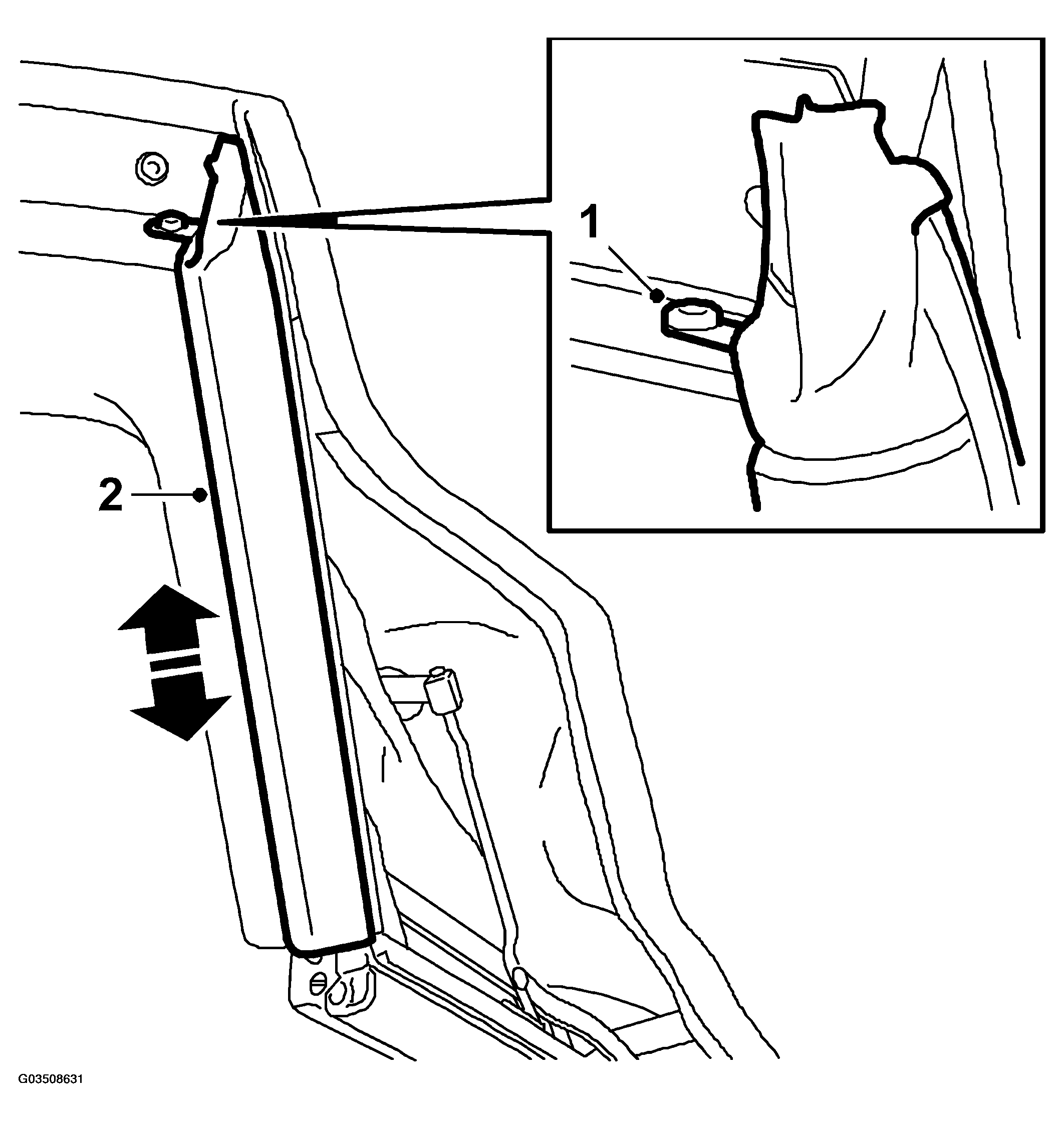

  3. Fig 1: Illustration For Steps 1-2
    G03508631Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Check the fit against the windscreen frame seal.
  5. Check so that there is no water leakage by spraying water from above at an angle.

    Never use high pressure  .
