Buzzers, Relays & Timers
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
BUZZERS, RELAYS & TIMERS LOCATION
| Component | Component Location |
|---|---|

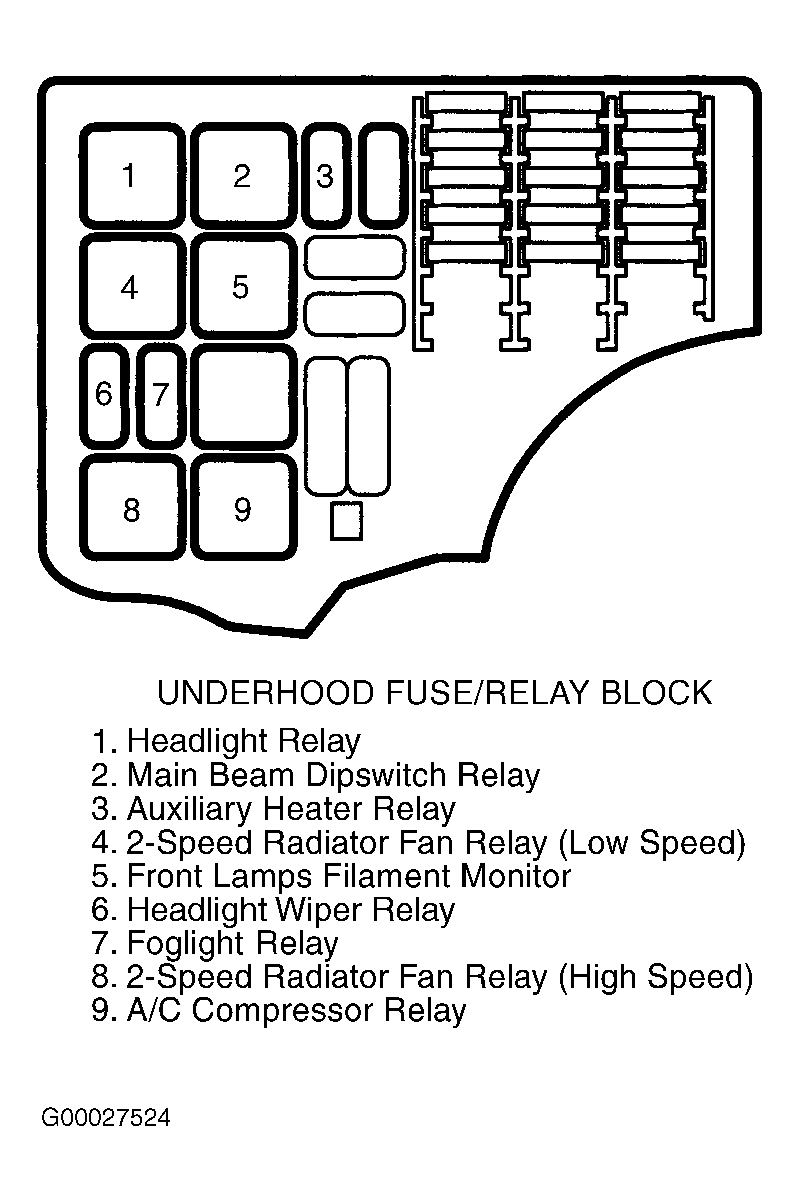

| A/C Compressor Relay | In underhood fuse/relay block. See Figure . |
| Auxiliary Heater Relay | In underhood fuse/relay block. See Figure . |

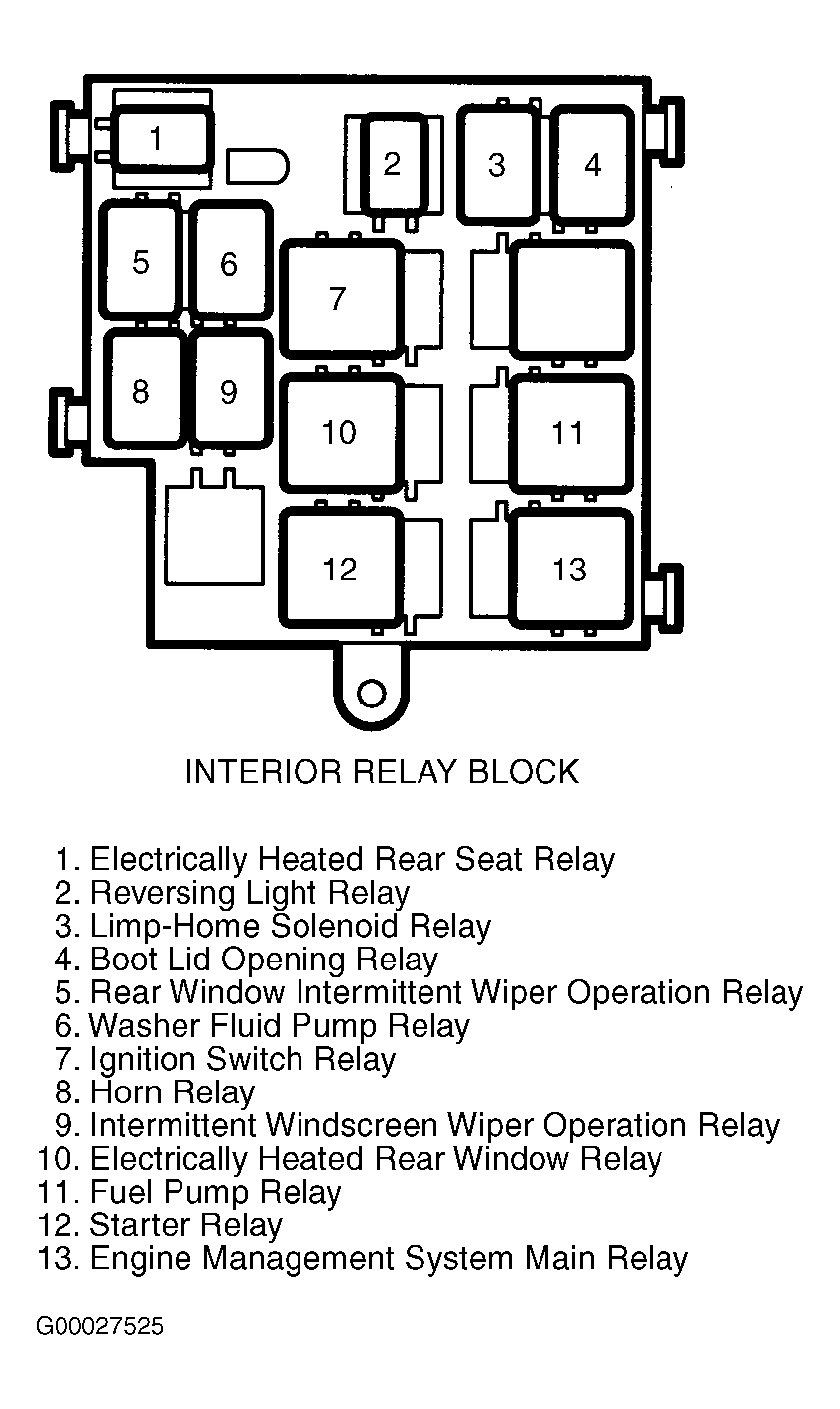

| Boot Lid Opening Relay | On interior relay block. See Figure . |
| Electrically Adjustable Passenger's Seat Relay | Under passenger's seat cushion. |
| Electrically Heated Rear Seat Relay | On interior relay block. See Figure . |
| Electrically Heated Rear Window Relay | On interior relay block. See Figure . |
| Electric Window Lift Relay (Left Front) | On left rear seat relay block. |
| Electric Window Lift Relay (Left Rear) | On left rear seat relay block. |
| Electric Window Lift Relay (Right Front) | On right rear seat relay block. |
| Electric Window Lift Relay (Right Rear) | On right rear seat relay block. |
| Engine Management System Main Relay | On interior relay block. See Figure . |
| Fifth Bow Relay | On right rear seat relay block. |
| Foglight Relay | In underhood fuse/relay block. See Figure . |
| Fuel Pump Relay | On interior relay block. See Figure . |
| Headlight Relay | In underhood fuse/relay block. See Figure . |
| Headlight Wiper Relay | On underhood fuse/relay block. See Figure . |
| Horn Relay | On interior relay block. See Figure . |
| Hydraulic Pump Pressure Relay (Convertible) | Behind rear seat, in hydraulic unit. |
| Hydraulic Pump Relay (Convertible) | On left rear seat relay block. |
| Ignition Switch Relay | On interior relay block. See Figure . |
| Intermittent Windscreen Wiper Operation Relay | On interior relay block. See Figure . |
| Limp-Home Solenoid Relay | On interior relay block. See Figure . |
| Main Beam Dipswitch Relay | In underhood fuse/relay block. See Figure . |
| Rear Window Intermittent Wiper Operation Relay | On interior relay block. See Figure . |
| Reversing Light Relay | On interior relay block. See Figure . |
| Starter Relay | On interior relay block. See Figure . |
| Traction CV Hydraulic Pump Relay | In hydraulic unit, behind rear seat. |
| Washer Fluid Pump Relay | On interior relay block. See Figure . |
| 2-Speed Radiator Fan Relay (High Speed) | In underhood fuse/relay block. See Figure . |
| 2-Speed Radiator Fan Relay (Low Speed) | In underhood fuse/relay block. See Figure . |
