Home >> Saab >> 2003 >> 9-3 SE, Standard >> Repair and Diagnosis >> External Pages >> Different car >> Section 29 (Sunroof) >> Adjustment - Replacement >> Wind deflector, sunroof >> To Remove

To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

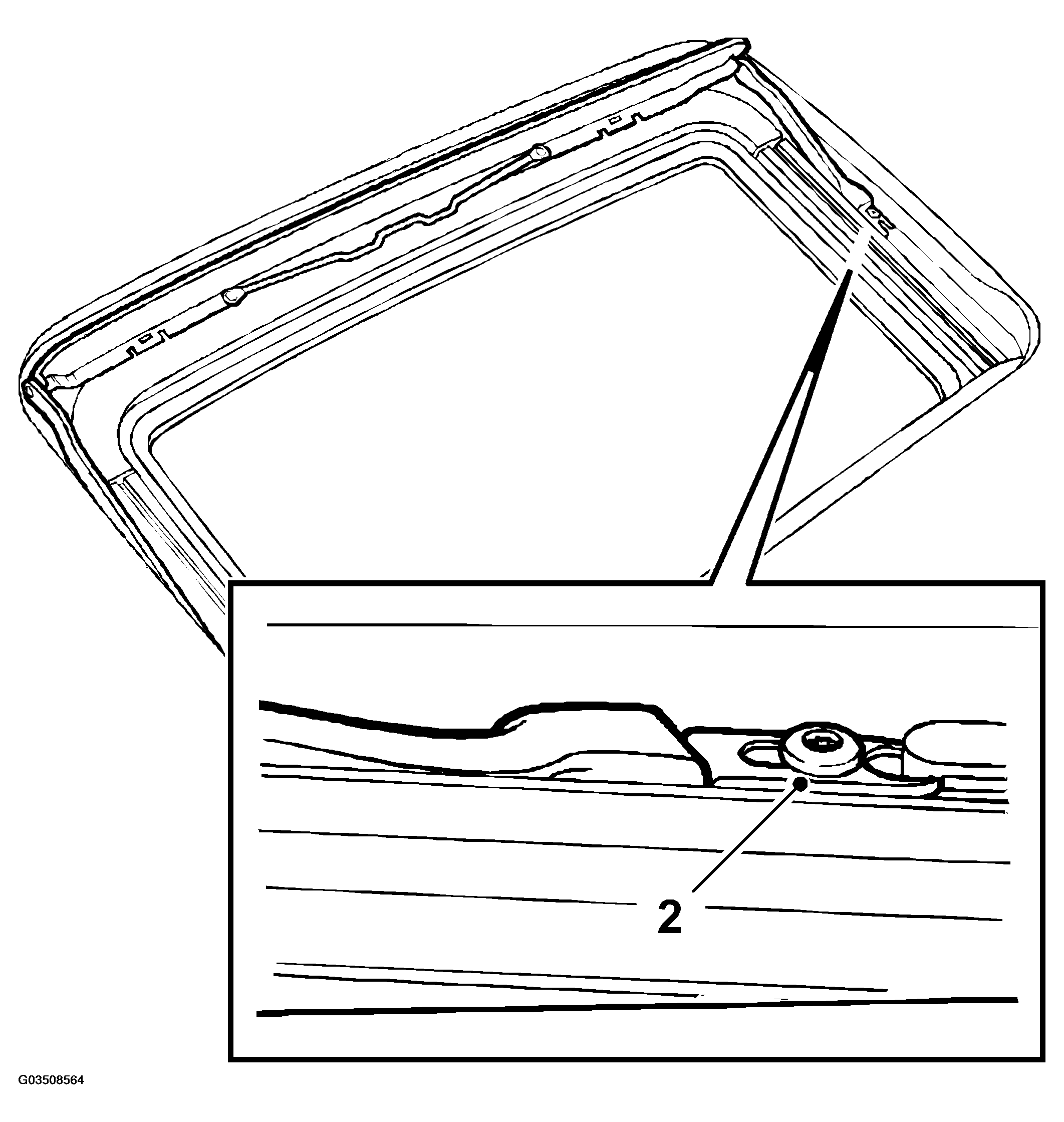

Fig 1: Illustration For Step 2
G03508564
  1. Set the mechanism in the rearmost position.
  2. Remove the two retaining screws that secure the wind deflector arms.
  3. Unhook the front of the wind deflector and unhook the spring.

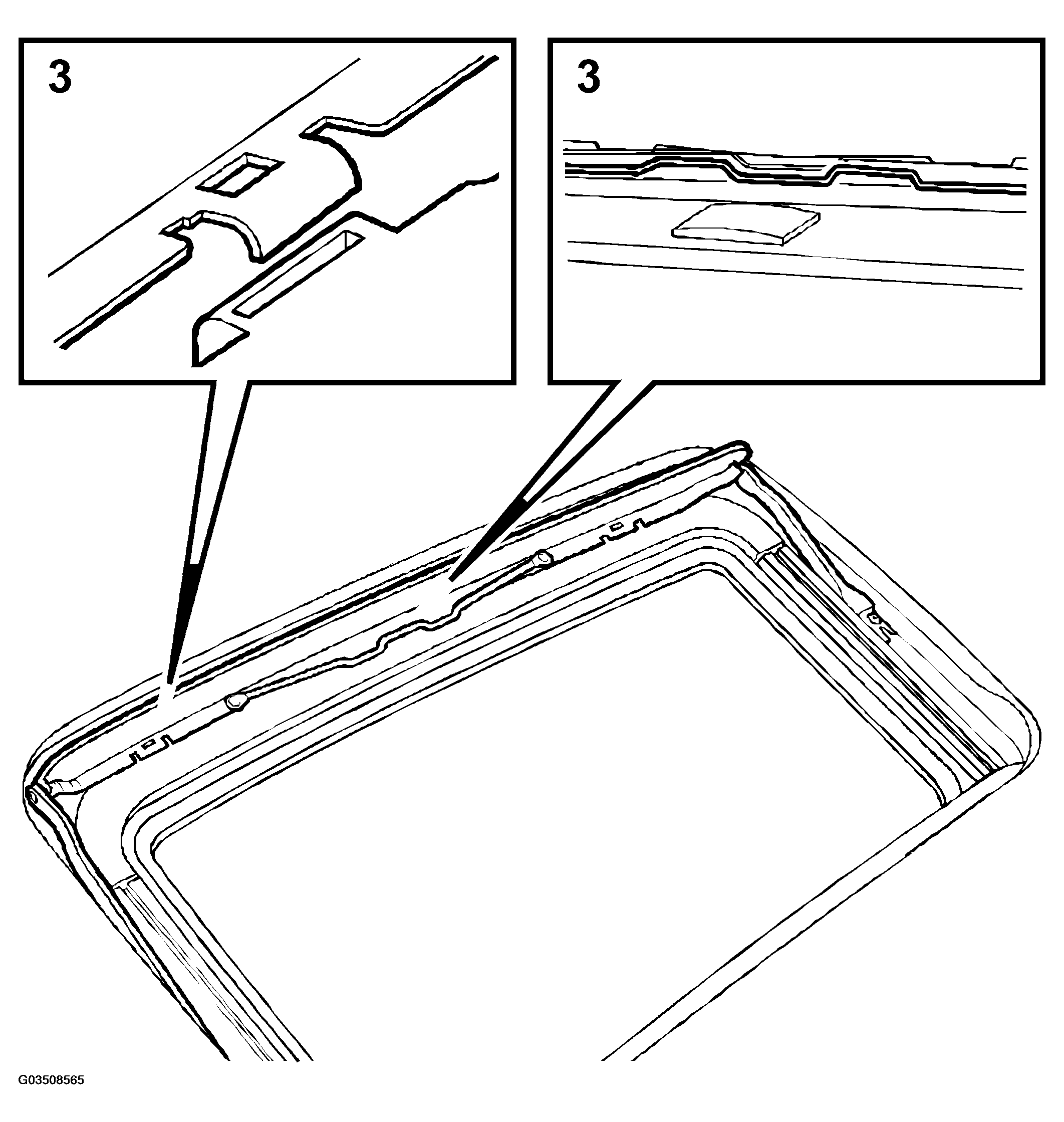

    Fig 2: Illustration For Step 3
    G03508565
