To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

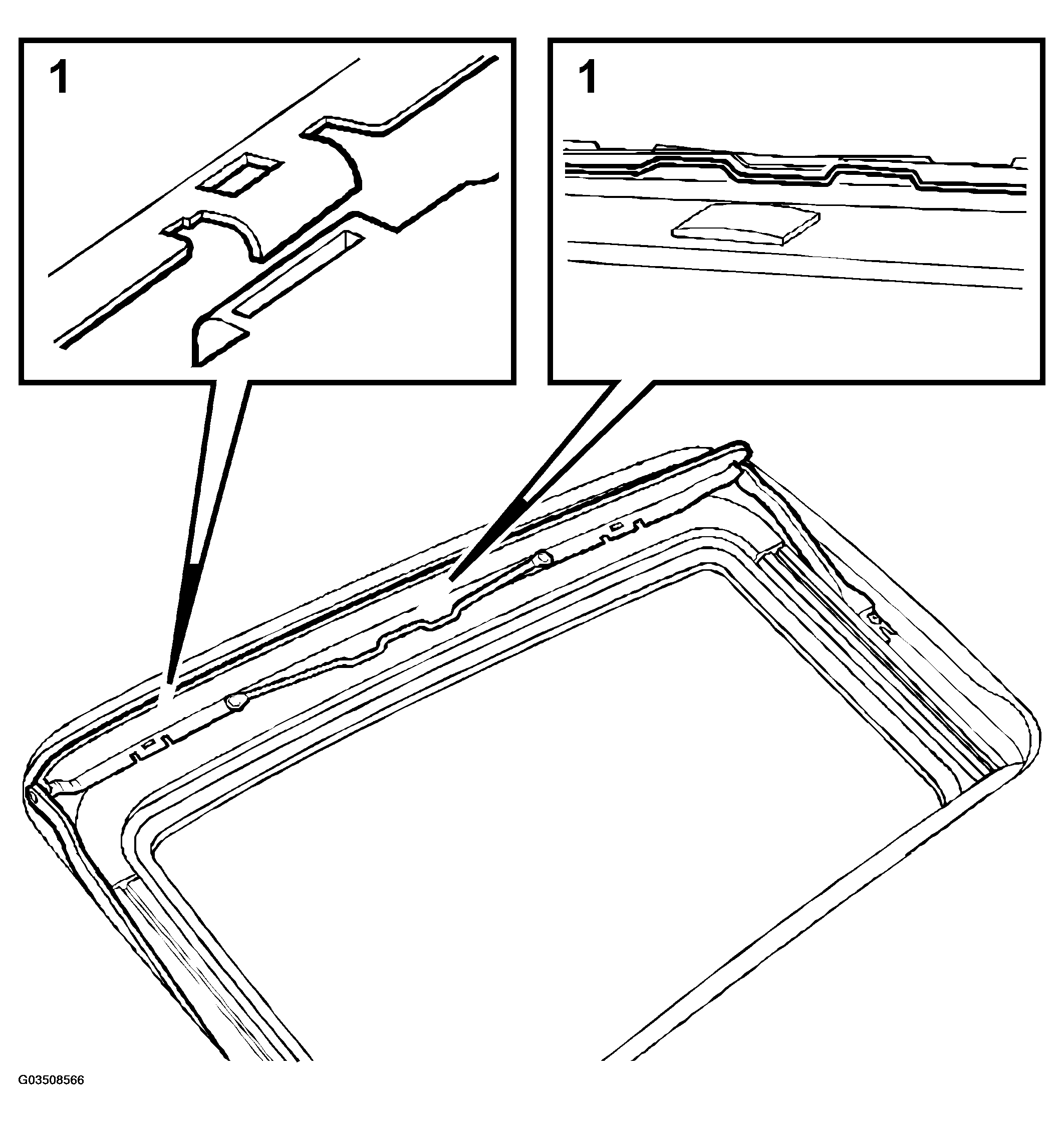

Fig 1: Illustration For Step 1
G03508566
  1. Hook the spring to the wind deflector when it is upright, then hook on the wind deflector itself.
  2. Fit the screws for the arms but do not tighten.

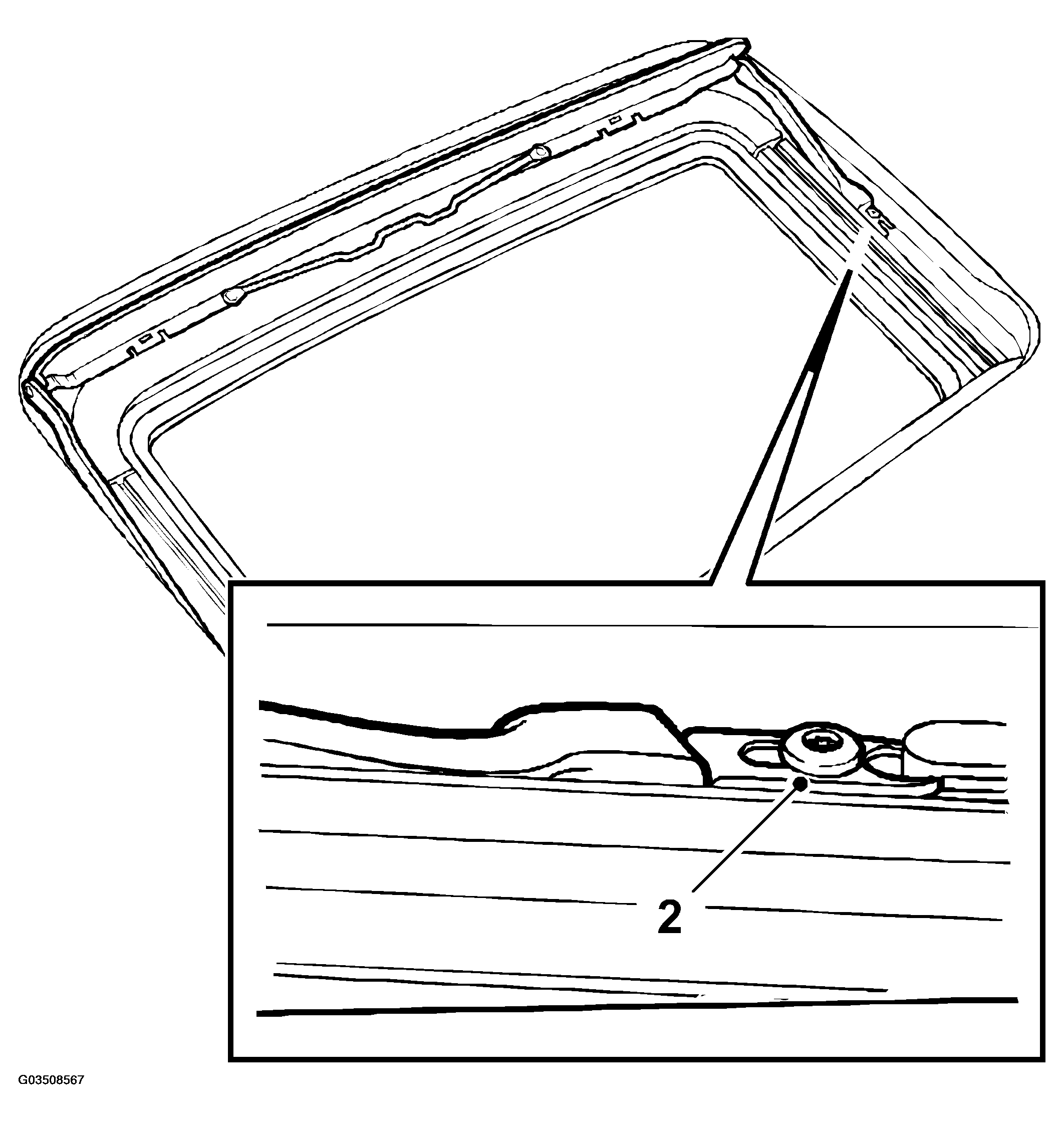

    Fig 2: Illustration For Step 2
    G03508567
  3. Adjust the wind deflector so that it opens up as much as possible.
  4. Tighten the screws.
  5. Set the mechanism in the forward position.
