To Fit
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Fit the drive cable to the slide mechanism.
- Insert the slide mechanism with cable until it snaps into position.

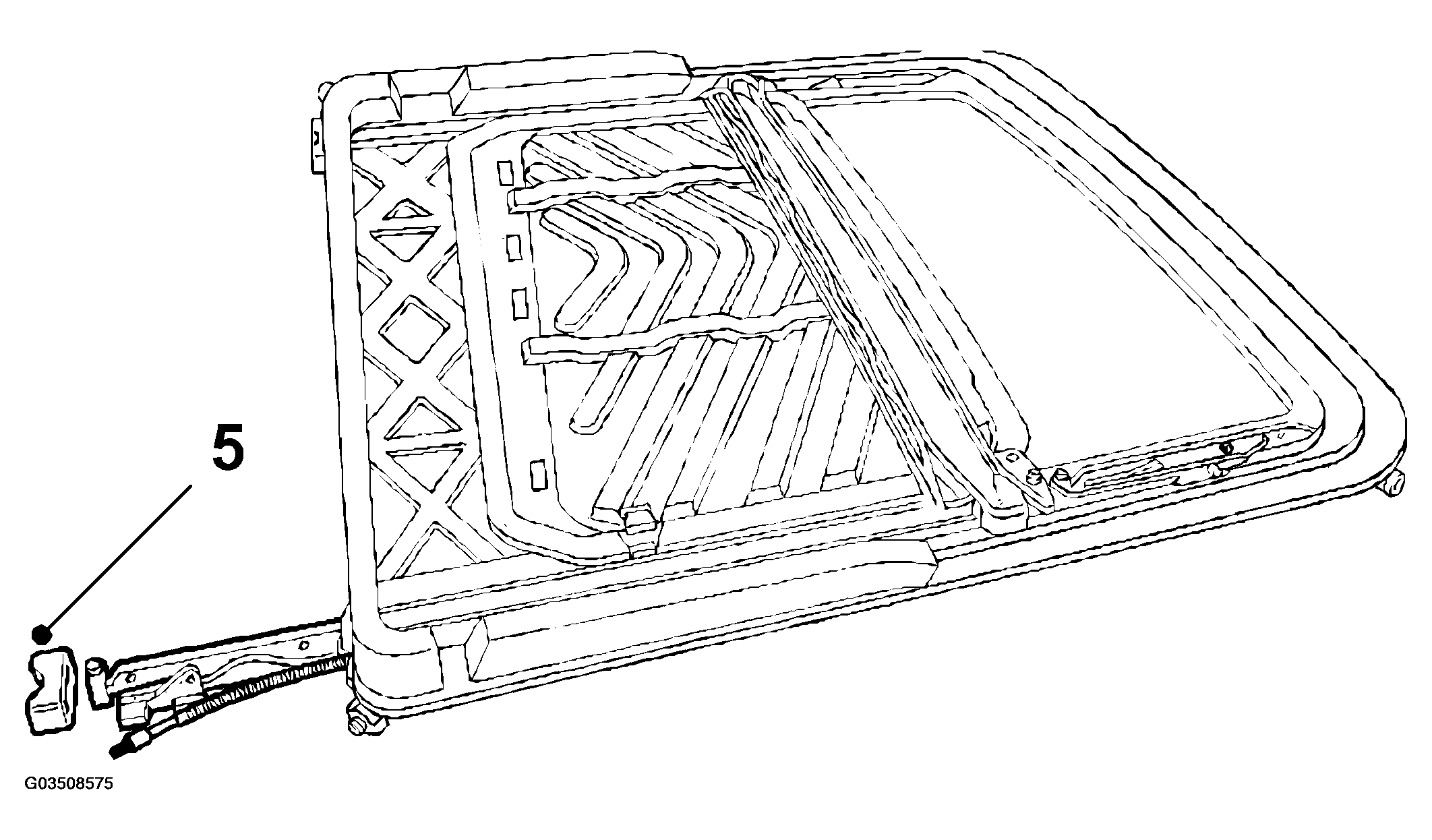

- Mount the holders for the rain gutter.
- Mount the anti-vibration spring and lock ring.

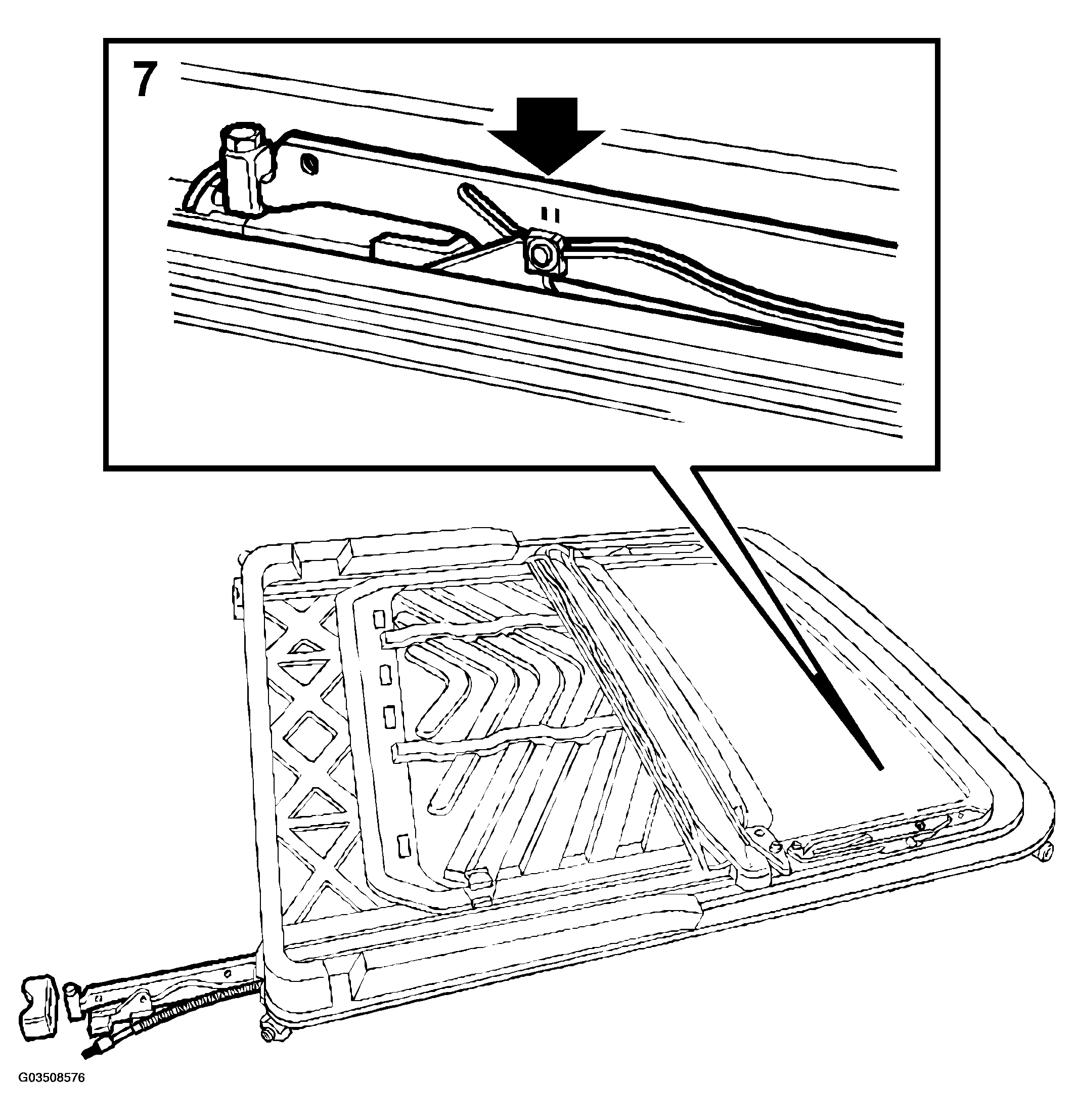

- Fasten the rear edge of the covers with some adhesive.
- Fit the rain gutter.
- Adjust the cables on both sides. Make sure that the rivet is halfway between the two marks in the link.
- Refit the motor.
- Refit the glass hatch.
- Refit the sunroof unit.
