To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

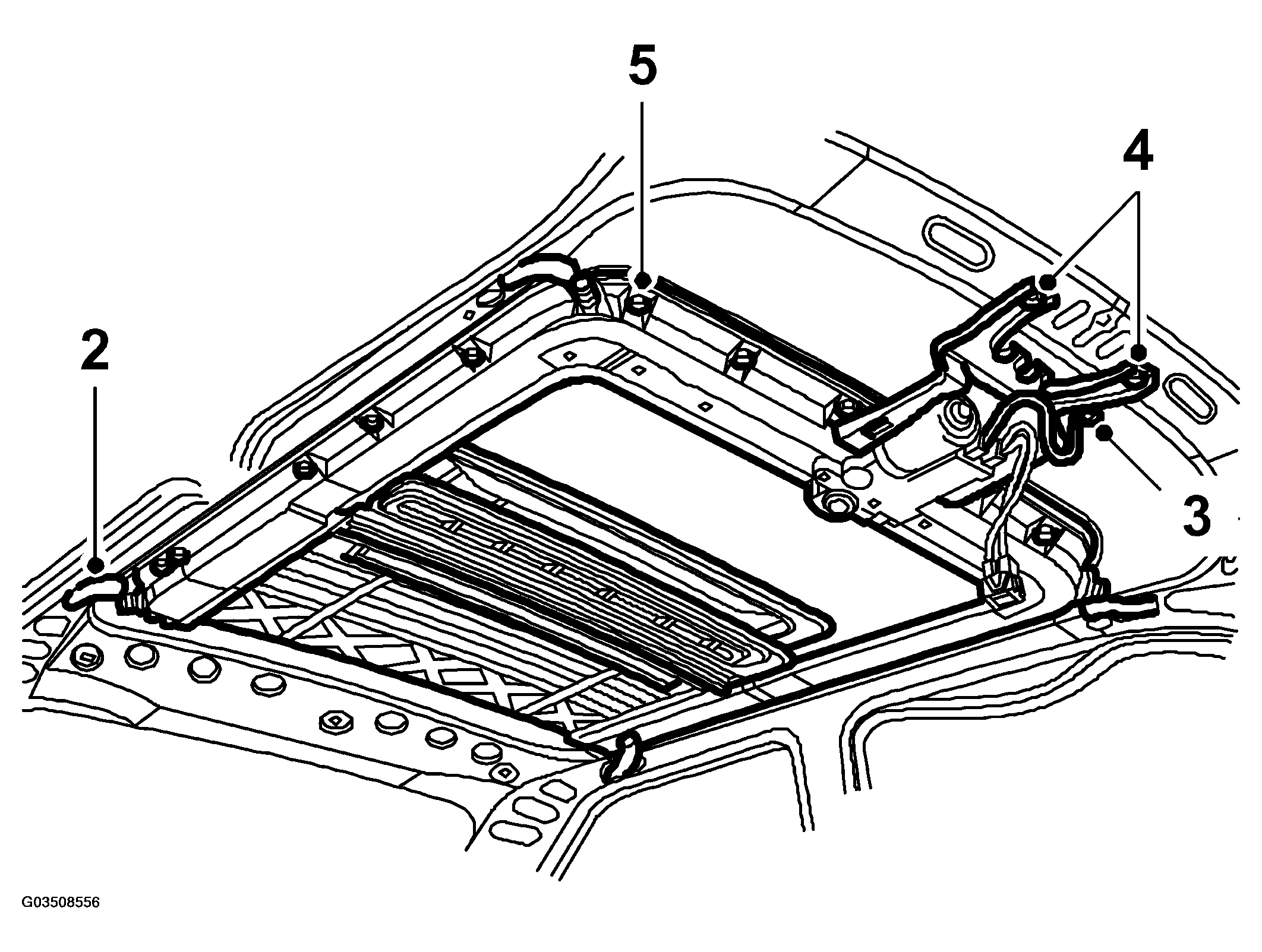

Fig 1: Illustration For Step 2-5
G03508556
NOTE: It is recommended that 2 people carry out steps  6 . and  7 .
  1. Remove the headlining, see TRIM, HEADLINING .
  2. Remove the four drain hoses from the nipples in the sunroof unit.
  3. Remove the grounding point for the motor from the interior light console.
  4. Remove the four retainer bolts that secure the console to the interior lighting and lift out the console.
  5. Remove the retainer bolts that secure the sunroof unit, leave one bolt at the front edge and one bolt in each rear corner.
  6. With assistance, remove the three remaining retainer bolts and lower the sunroof unit together with another person.
  7. Open the tailgate and lift out the sunroof unit (2 persons).
