To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

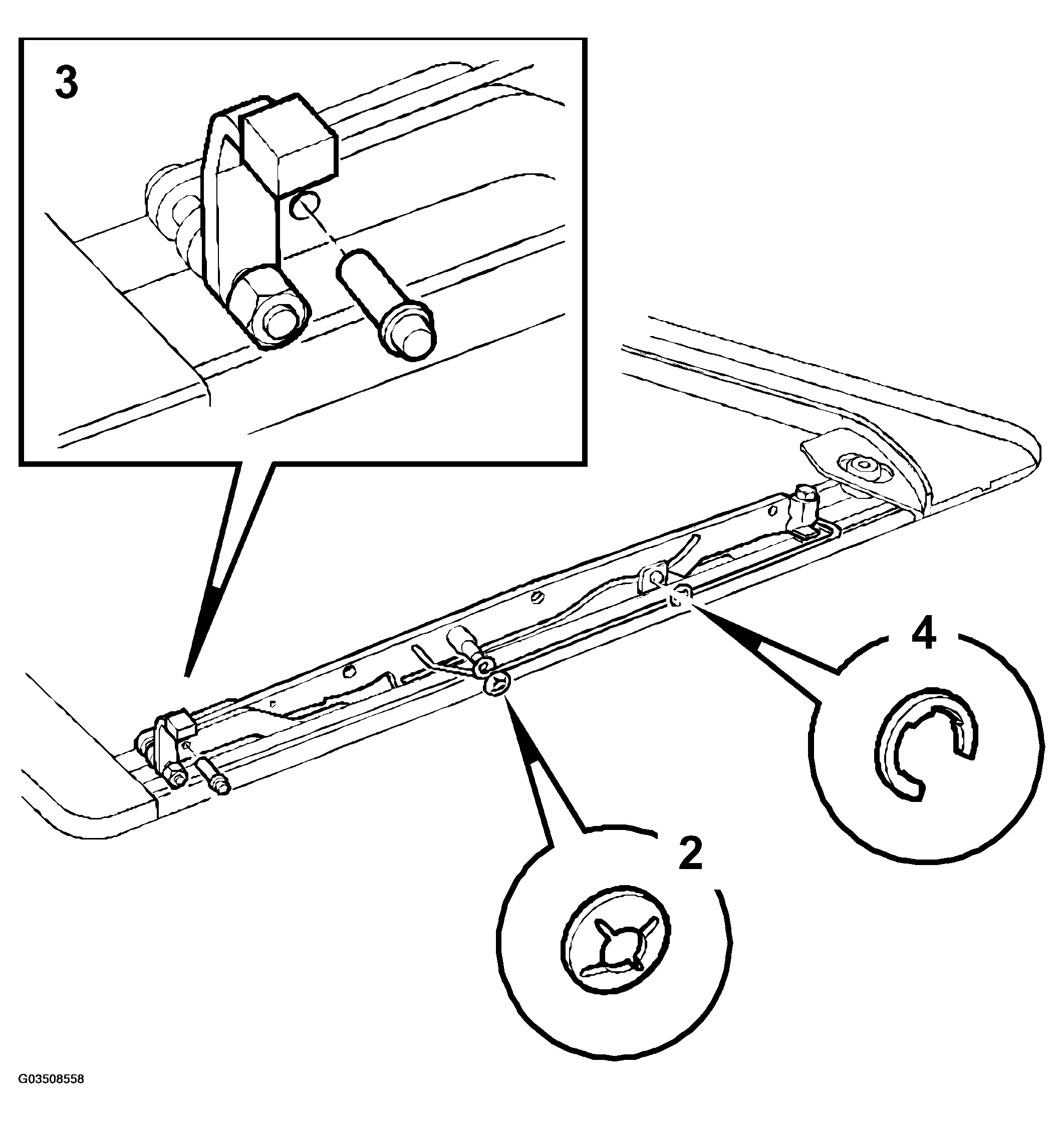

Fig 1: Illustration For Step 2-4
G03508558
  1. Remove the glass hatch.
  2. Pull the spring off the shaft.
  3. Remove the retaining screw at the front so that the guide can be tilted forward, then push out the pin.
  4. Remove the circlip for the rear pin and push out the pin.
