To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

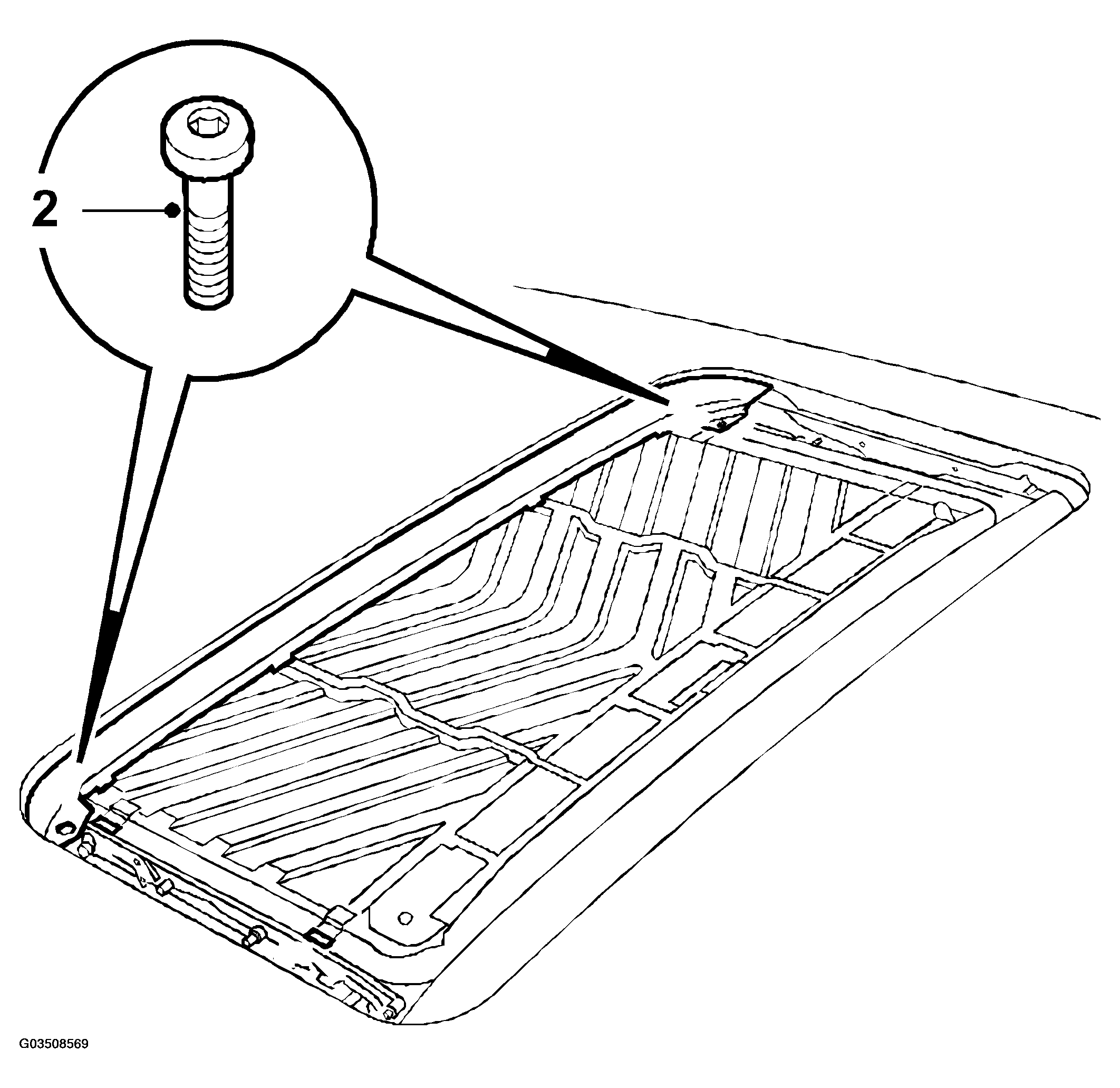

Fig 1: Illustration For Step 2
G03508569
  1. Fit the rain gutter in position, make sure that the pins first enter at the rear, then fit the front of the gutter.
  2. Fit and tighten the two screws. If there is resonance noise from the rain gutter, the screws need tightening.
  3. Refit the glass hatch.
