To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

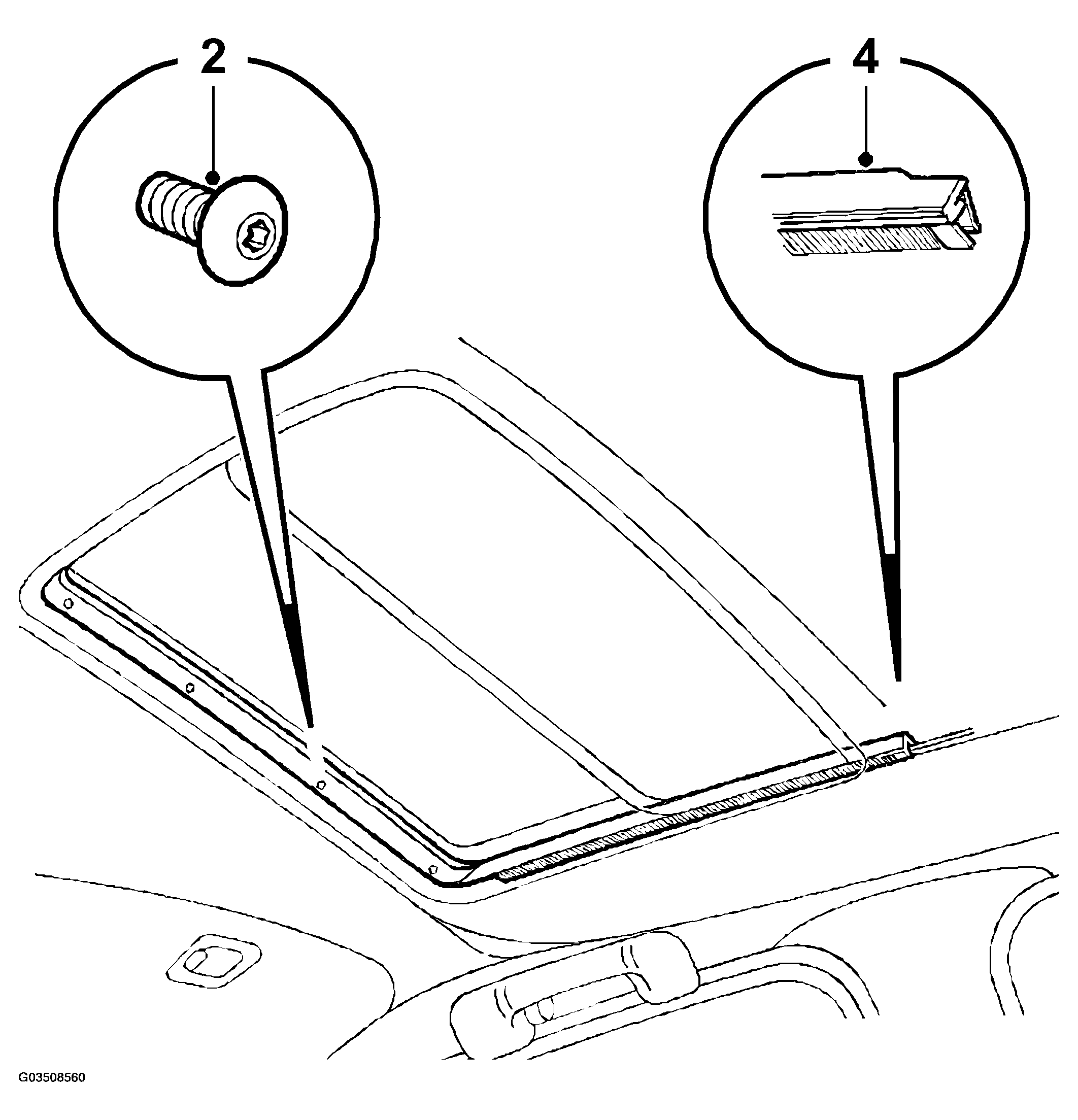

Fig 1: Illustration For Step 2-4
G03508560
  1. Open the sunroof to expose the retaining screws for the cover molding.
  2. Remove the four retaining screws from the cover molding.
  3. Close the hatch.
  4. Remove the rear end of the cover by releasing the clip, one on each side, and pulling towards the center of the car.
  5. Remove the 6 retaining screws from the glass hatch.

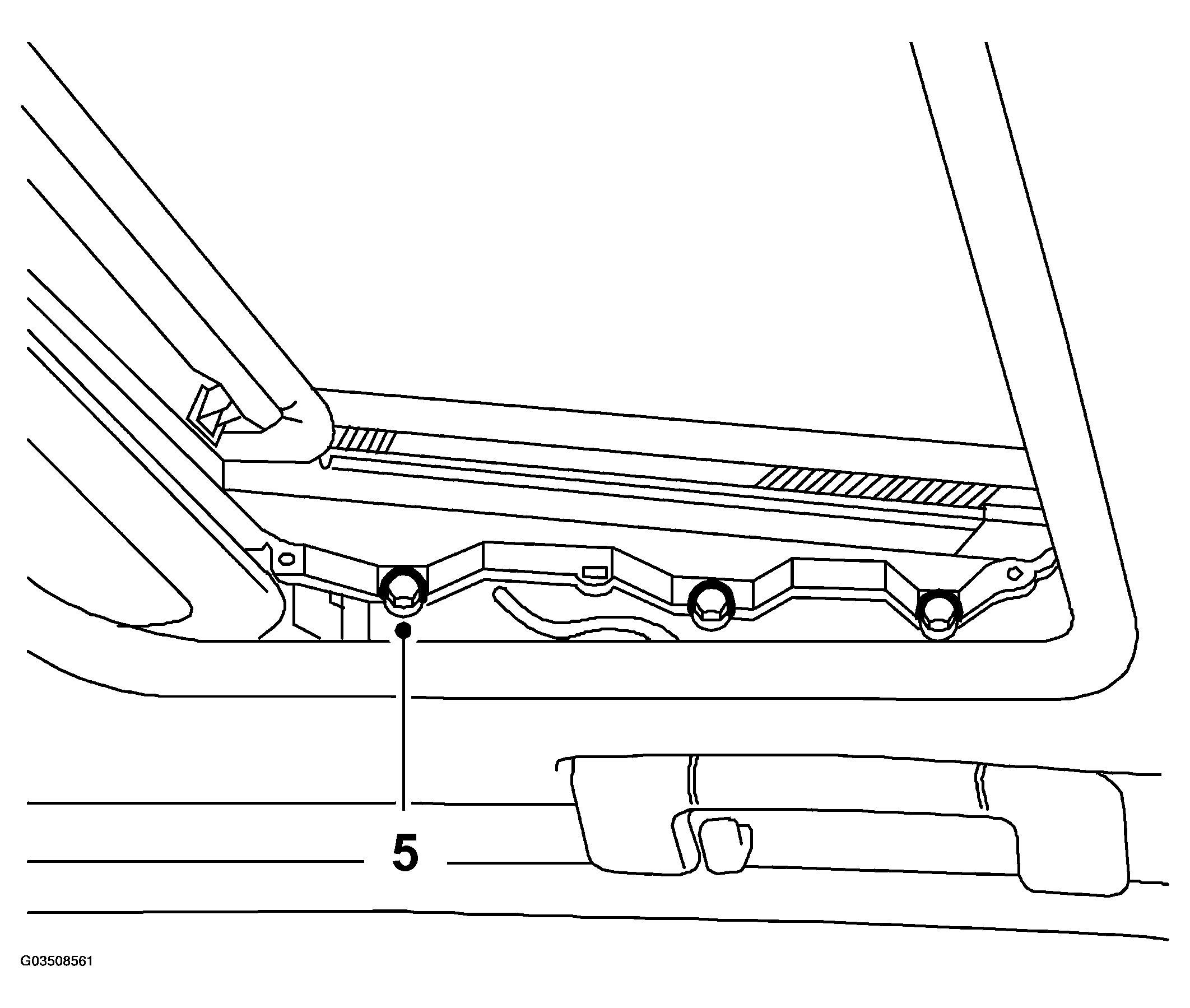

    Fig 2: Illustration For Step 5
    G03508561
  6. Lift off the glass hatch.
