To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

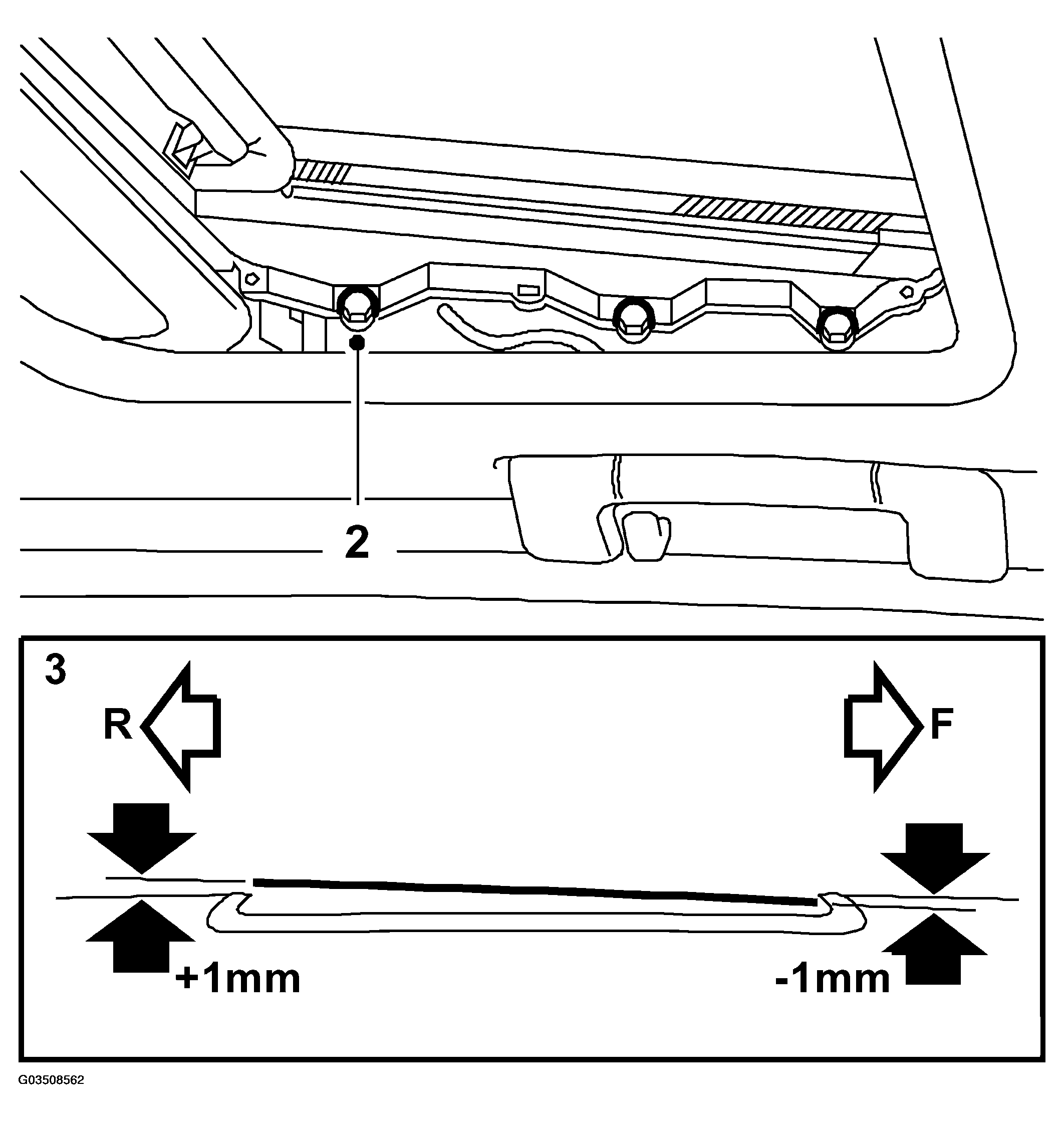

Fig 1: Illustration For Step 2-3
G03508562
  1. Fit the sunroof hatch in position.
  2. Insert the 6 retaining screws.
  3. Adjust the fit against the roof, one side at a time:
    • 0 to -1 mm at the front edge
    • 0 to +1 mm at the rear edge
  4. Tighten the retaining screws.
  5. Open the sunroof hatch slightly so that the cover molding can be fitted.

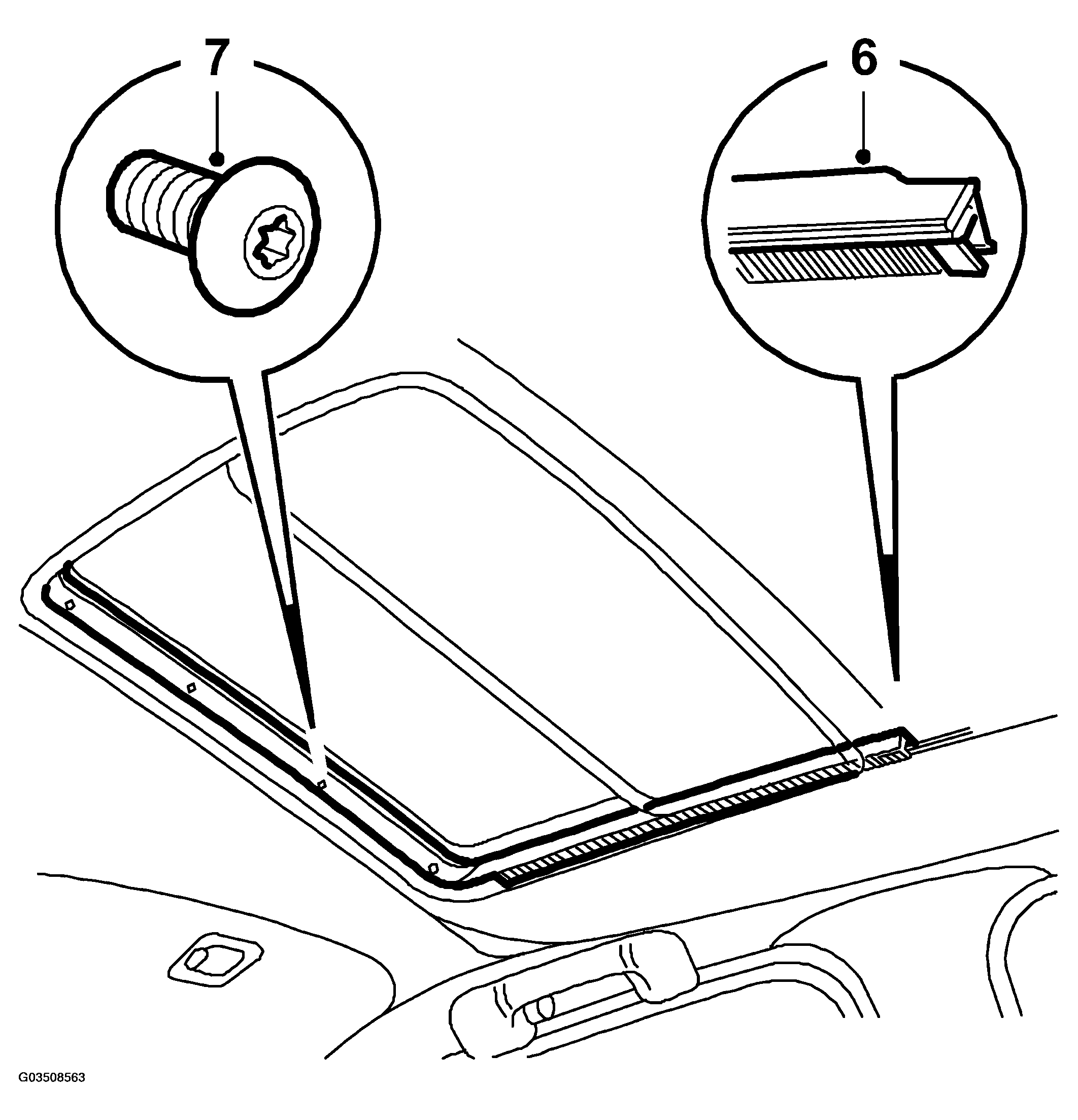

    Fig 2: Illustration For Step 6-7
    G03508563
  6. Fit the cover molding, close the hatch and fasten its clips at the outer edge.
  7. Open the hatch slightly and tighten the four retaining screws.
  8. Close the hatch.
  9. Check the function.
