To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

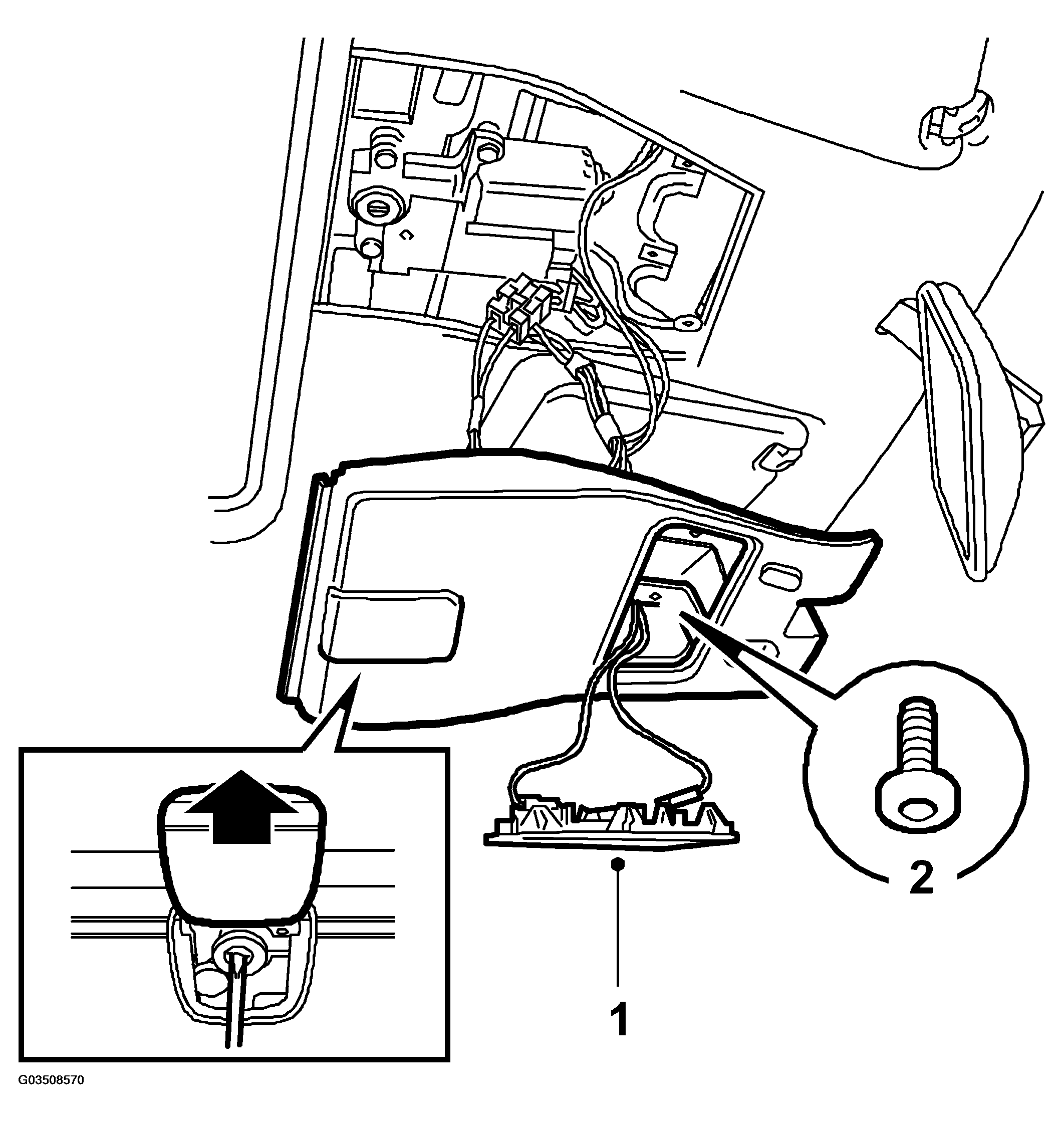

Fig 1: Illustration For Step 1-2
G03508570
NOTE: If the sunroof motor is malfunctioning, the hatch can be operated manually with a screwdriver.
  1. Remove the interior lighting.
  2. Remove the 2 retaining screws that secure the lighting console. Pull off the console, fastened with 2 clips at the rear edge.
  3. Remove the grounding point for the motor and the 3 retaining screws.

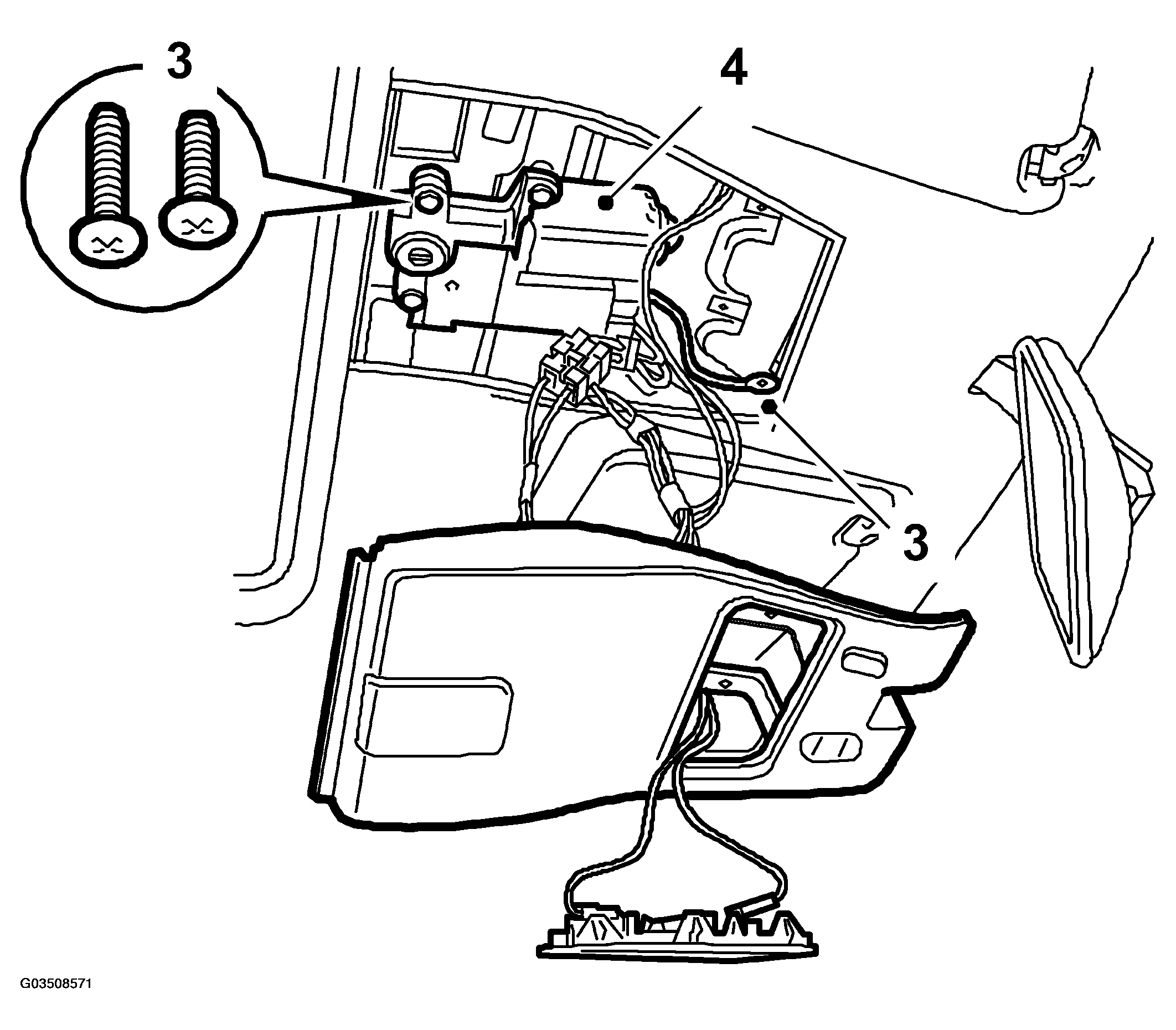

    Fig 2: Illustration For Step 3-4
    G03508571
  4. Lower the motor.
