To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

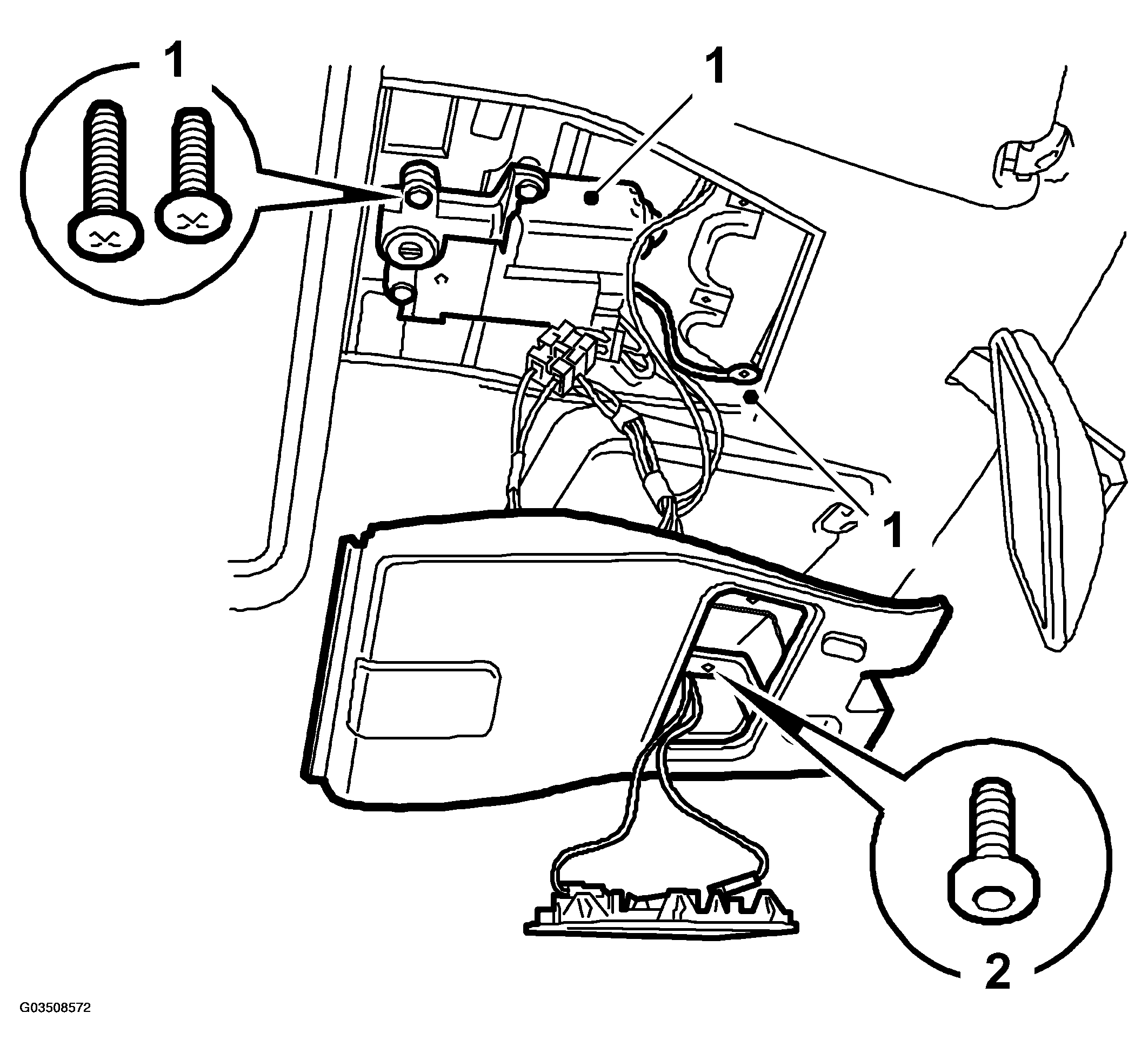

Fig 1: Illustration For Step 1-2
G03508572
  1. Fit the motor and tighten the three (3) retaining screws.
  2. Fit the console for the interior lighting and tighten the 3 retaining screws.
  3. Refit the interior lighting.
