To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the contact surface between the rim and the brake disc from dirt and rust.
  2. Apply 30 06 442 White high-pressure grease paste  to the hub.
    IMPORTANT: Make sure there is no grease on the contact surface between the rim and the brake disc.

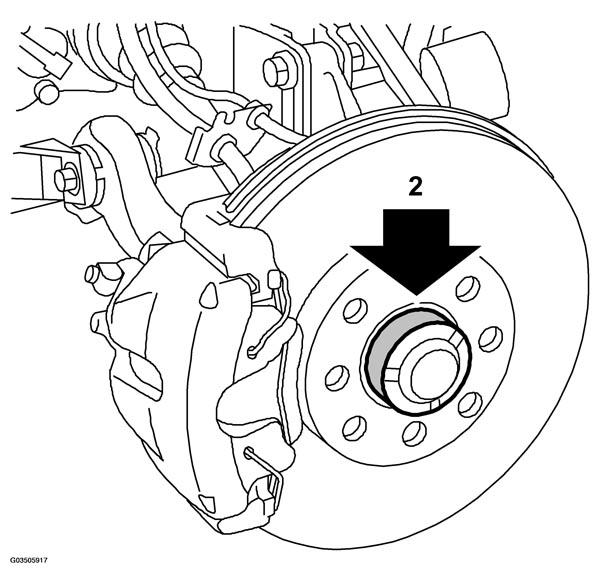

    Fig 1: Illustration For Step 2
    G03505917Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Aluminum rim:  Apply oil to the bolt threads and the tapered surface of the bolt.
  4. Hang the wheel in place.

    Fit the bolts and tighten them alternately by hand to centre the wheel.

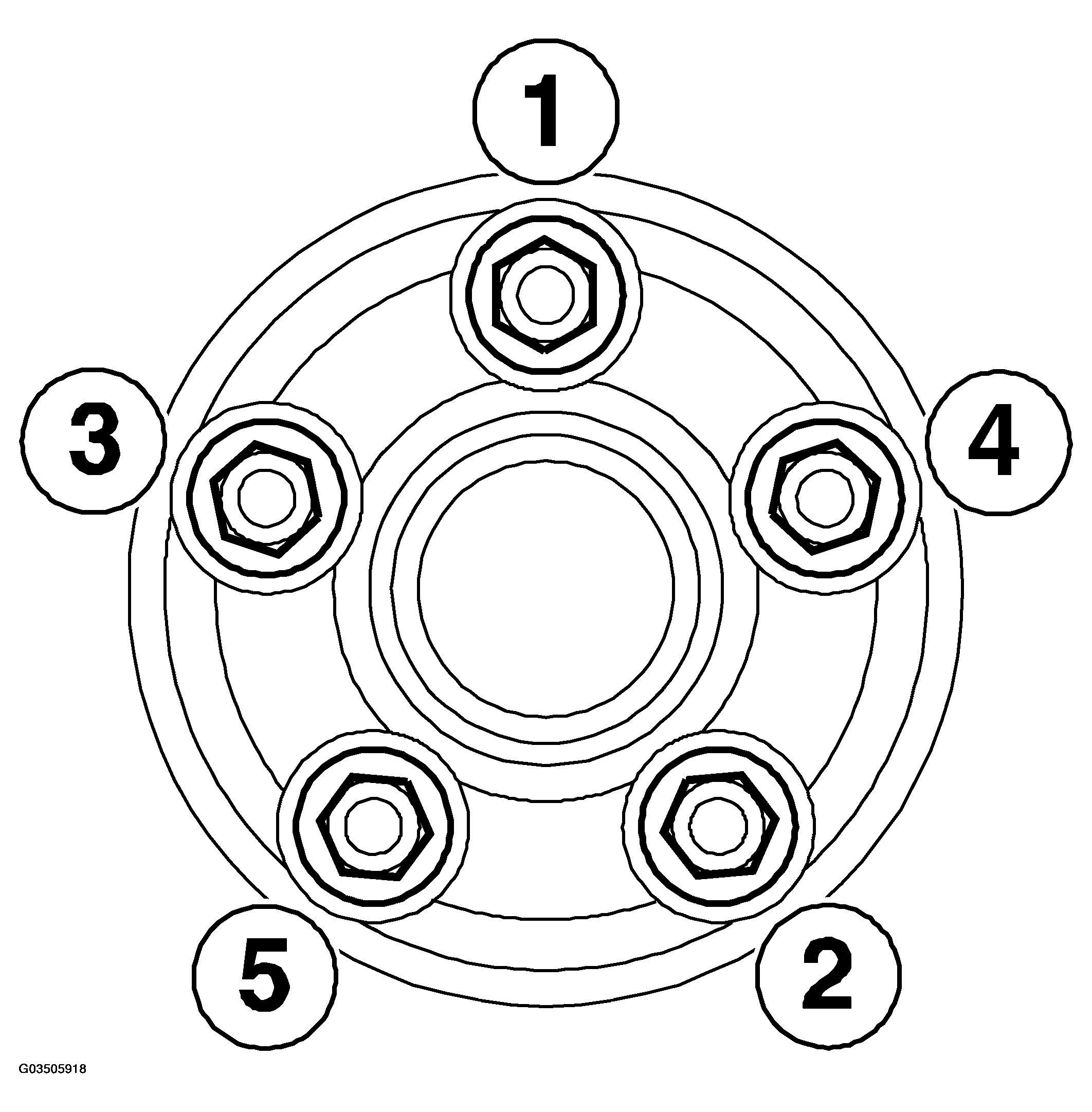

    Fig 2: Identifying Tightening Order Of Wheel Bolts
    G03505918Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Tighten the bolts alternately twice.
    IMPORTANT: The wheel must be suspended freely when tightening the wheel bolts.

    Tightening torque: 110 N.m (81 lbf ft).
