Anti-Lock Brakes With Traction Control TC/ABS 5.3: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

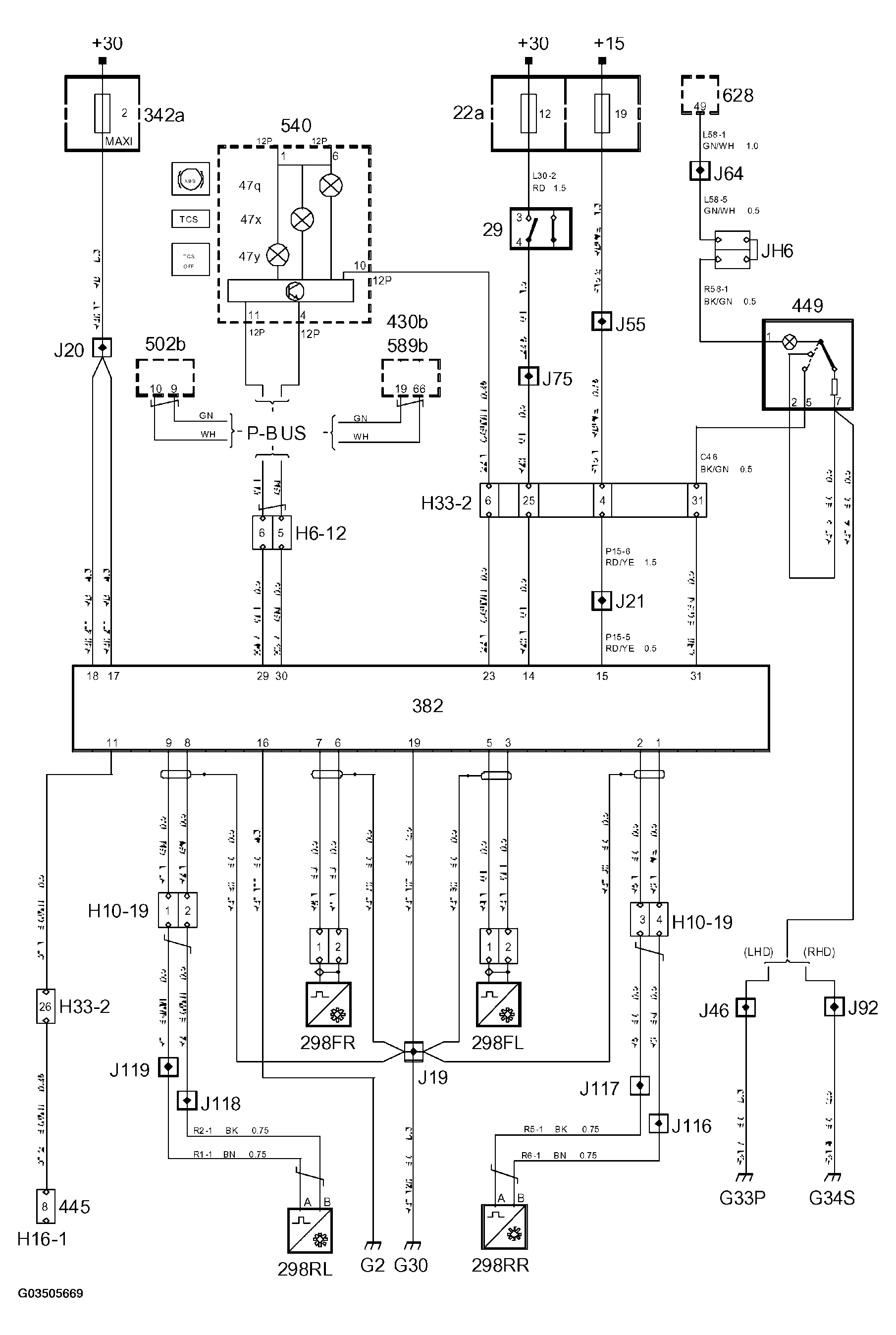

Fig 1: Anti-Lock Brakes With Traction Control TC/ABS 5.3 - Wiring Diagram
G03505669Courtesy of SAAB-SCANIA OF AMERICA, INC.
