Wheel-speed signal output: Diagnostics

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

If the wheel-speed signal output is faulty, a DTC will be set in the receiving system.

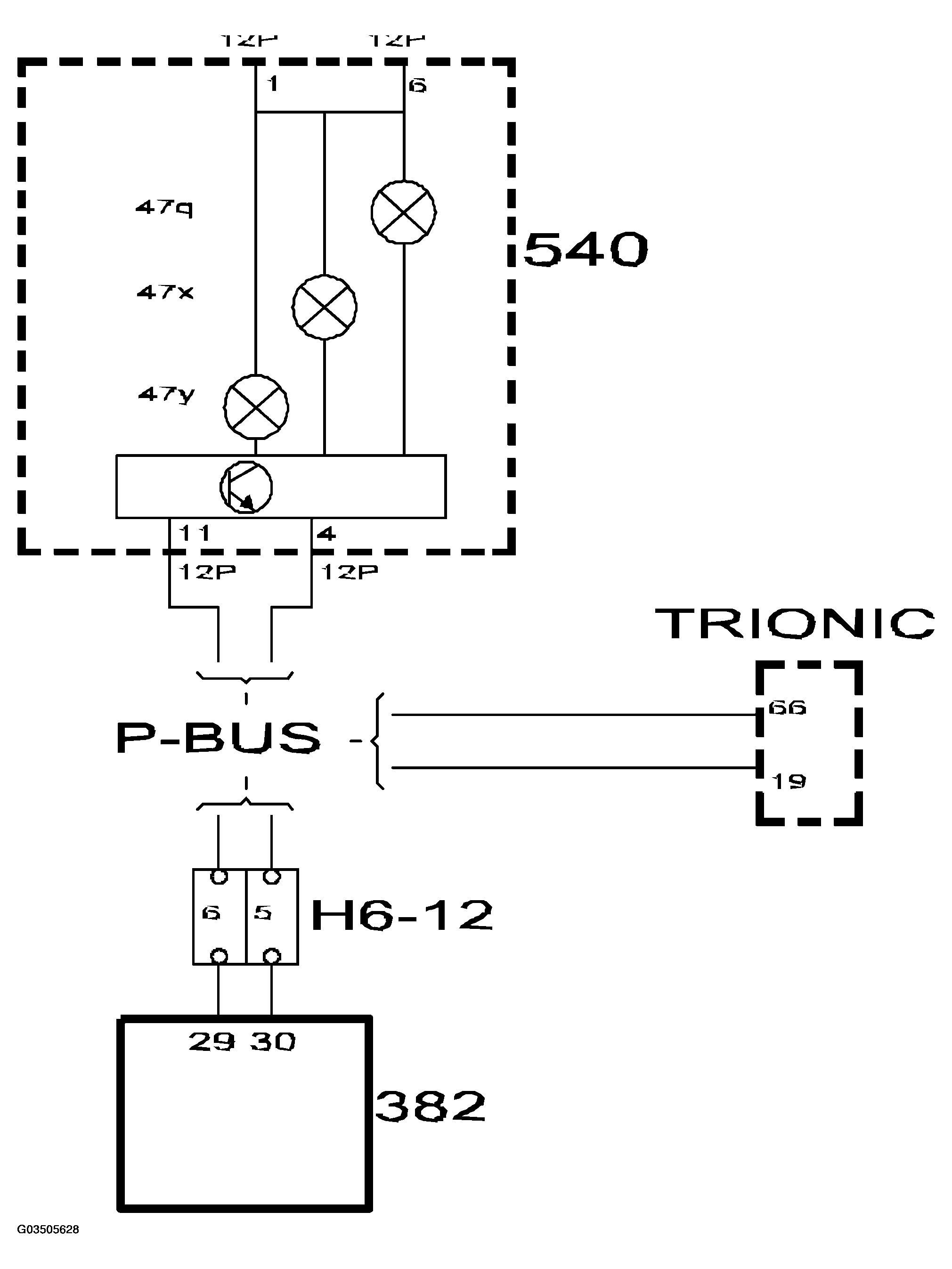

Fig 1: Wheel-Speed Signal Output - Circuit Diagram
G03505628Courtesy of SAAB-SCANIA OF AMERICA, INC.
