Rear-wheel sensors
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. REAR-WHEEL SENSORS - TECHNICAL DATA
| Operating voltage, min. |
120 mV AC
at 2.75 km/h (1.7 mph) |
| Operating voltage, max. |
100V AC
at 280 km/h (174 mph) |
| Resistance |
1130 +/-115 O
at +20°C |

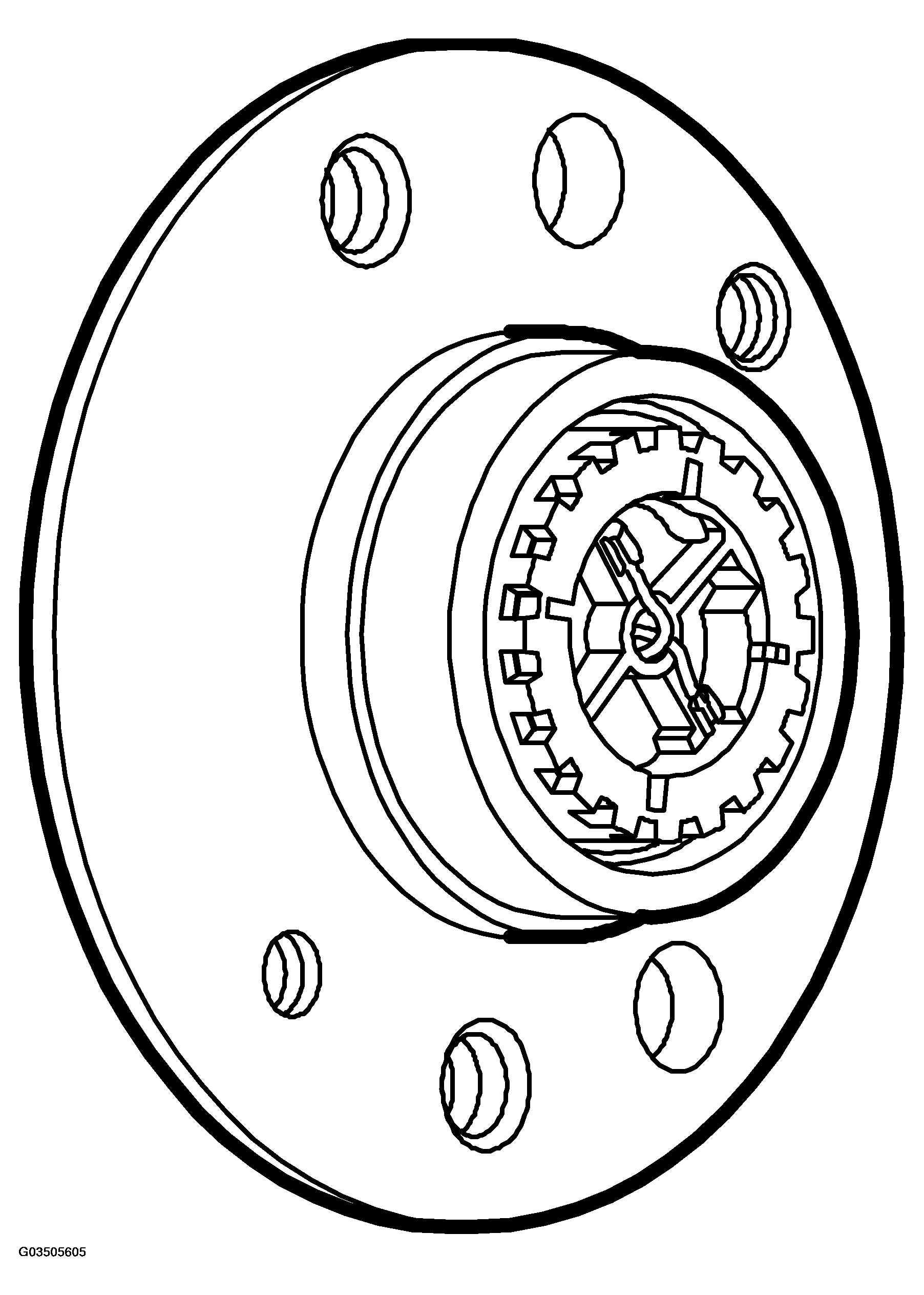

| Number of teeth |
29 |
