ABS warning lamp constantly on: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

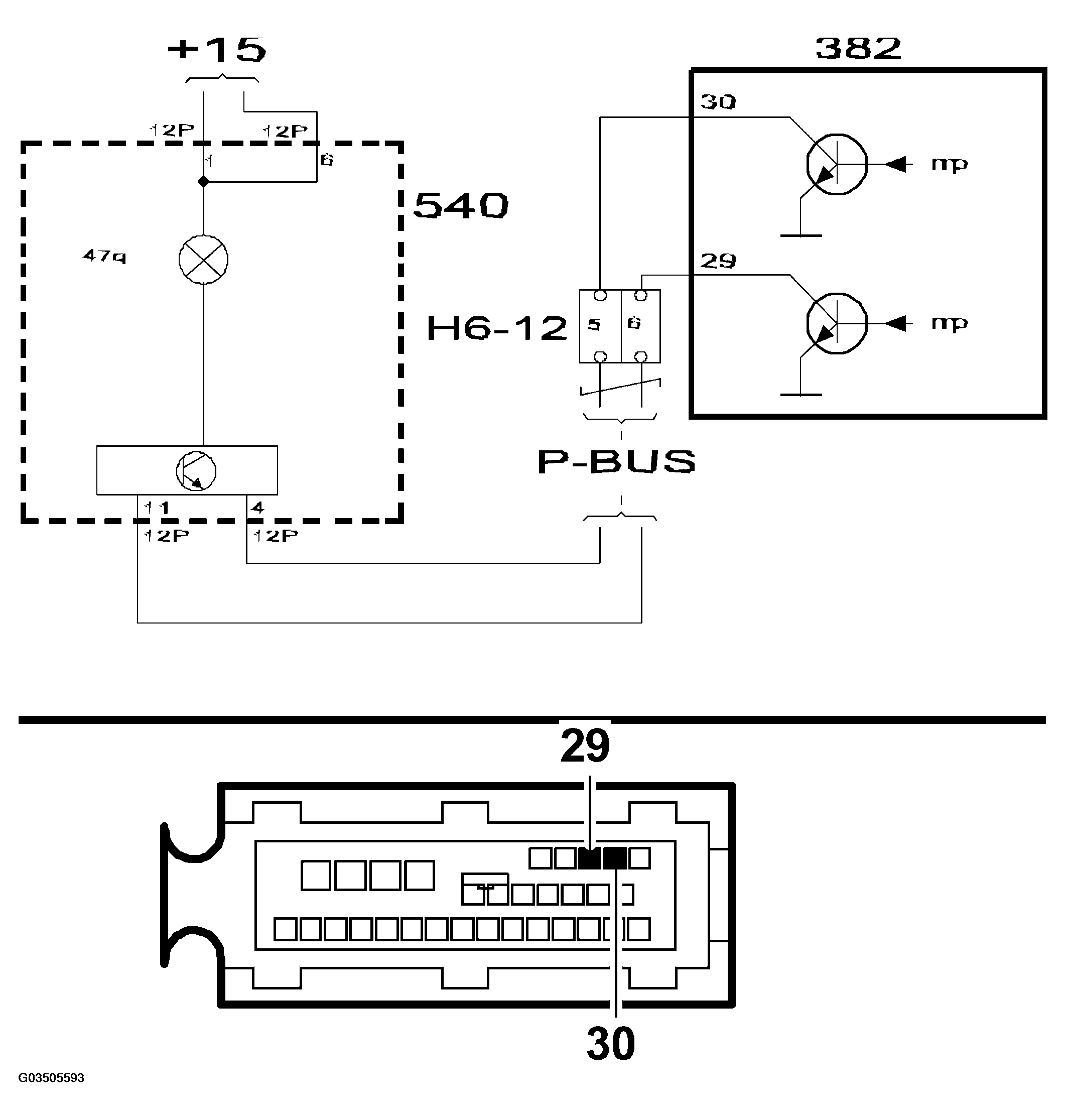

Fig 1: ABS Warning Lamp Constantly On - Circuit Diagram
G03505593Courtesy of SAAB-SCANIA OF AMERICA, INC.
