Main instrument unit for petrol cars (540d): K12

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

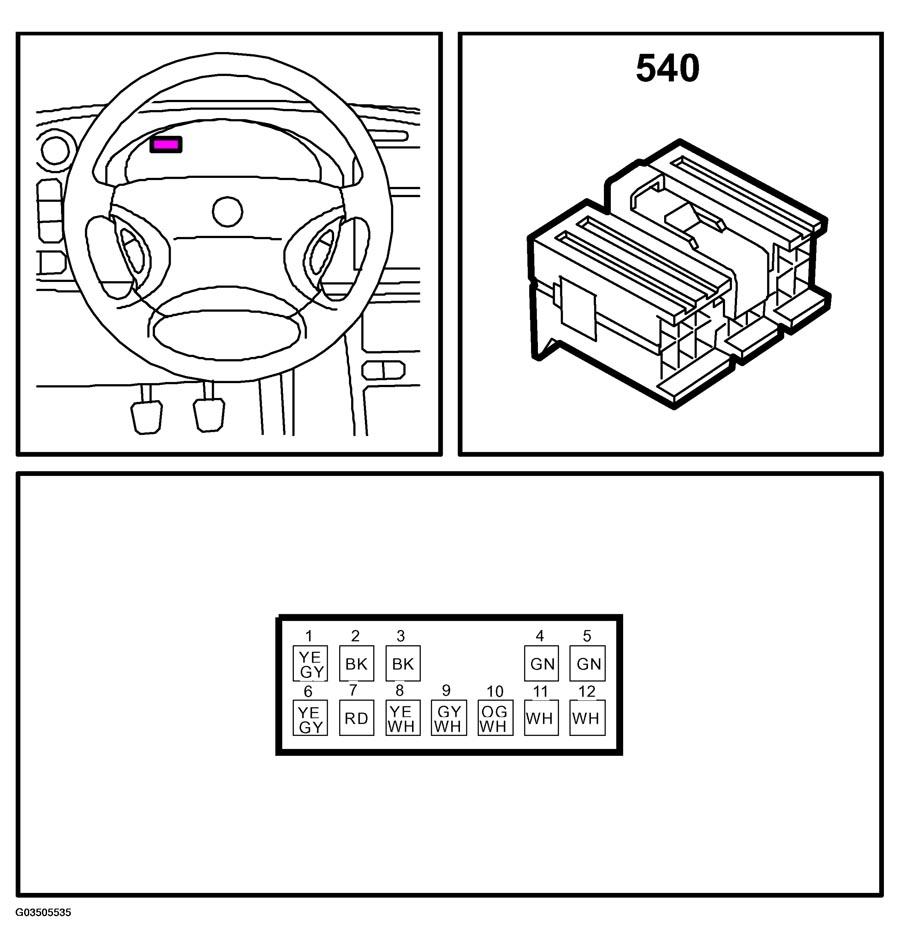

Fig 1: Identifying Main Instrument Unit Pinouts And Location (Petrol Cars) (K12)
G03505535Courtesy of SAAB-SCANIA OF AMERICA, INC.
