Data link connector, 16-pin, CARB (445)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

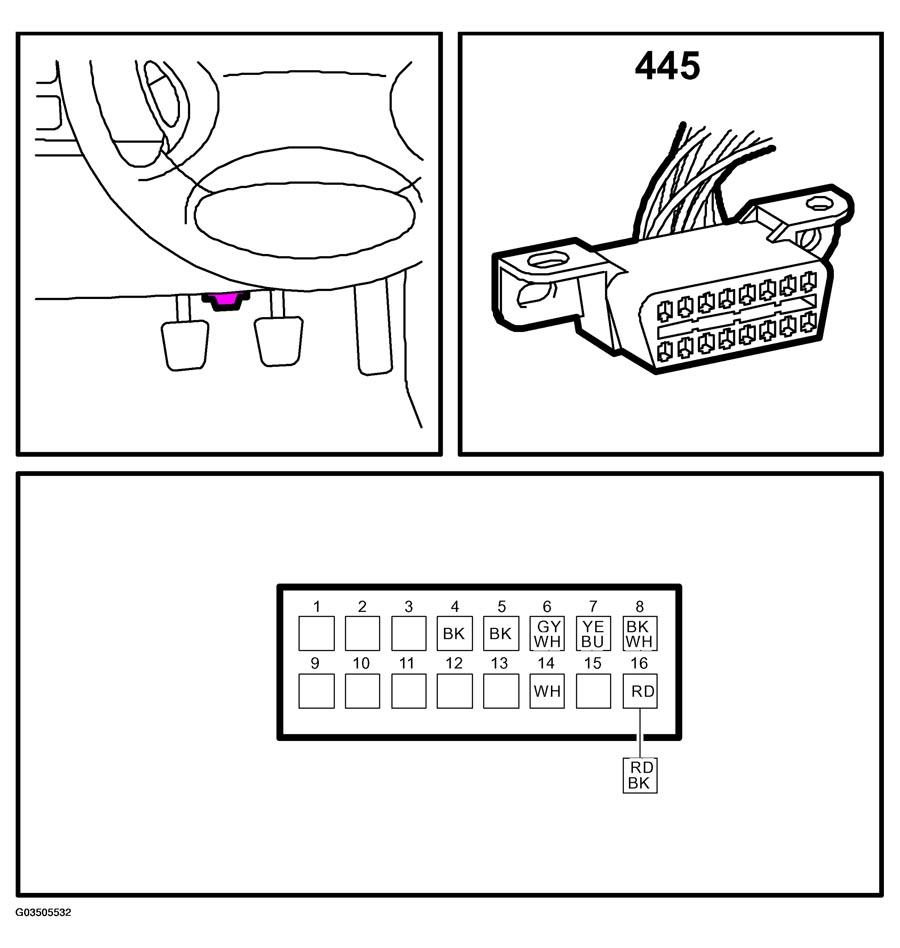

Fig 1: Identifying Data Link Connector Pinouts And Location (16-Pin, CARB)
G03505532Courtesy of SAAB-SCANIA OF AMERICA, INC.
