To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

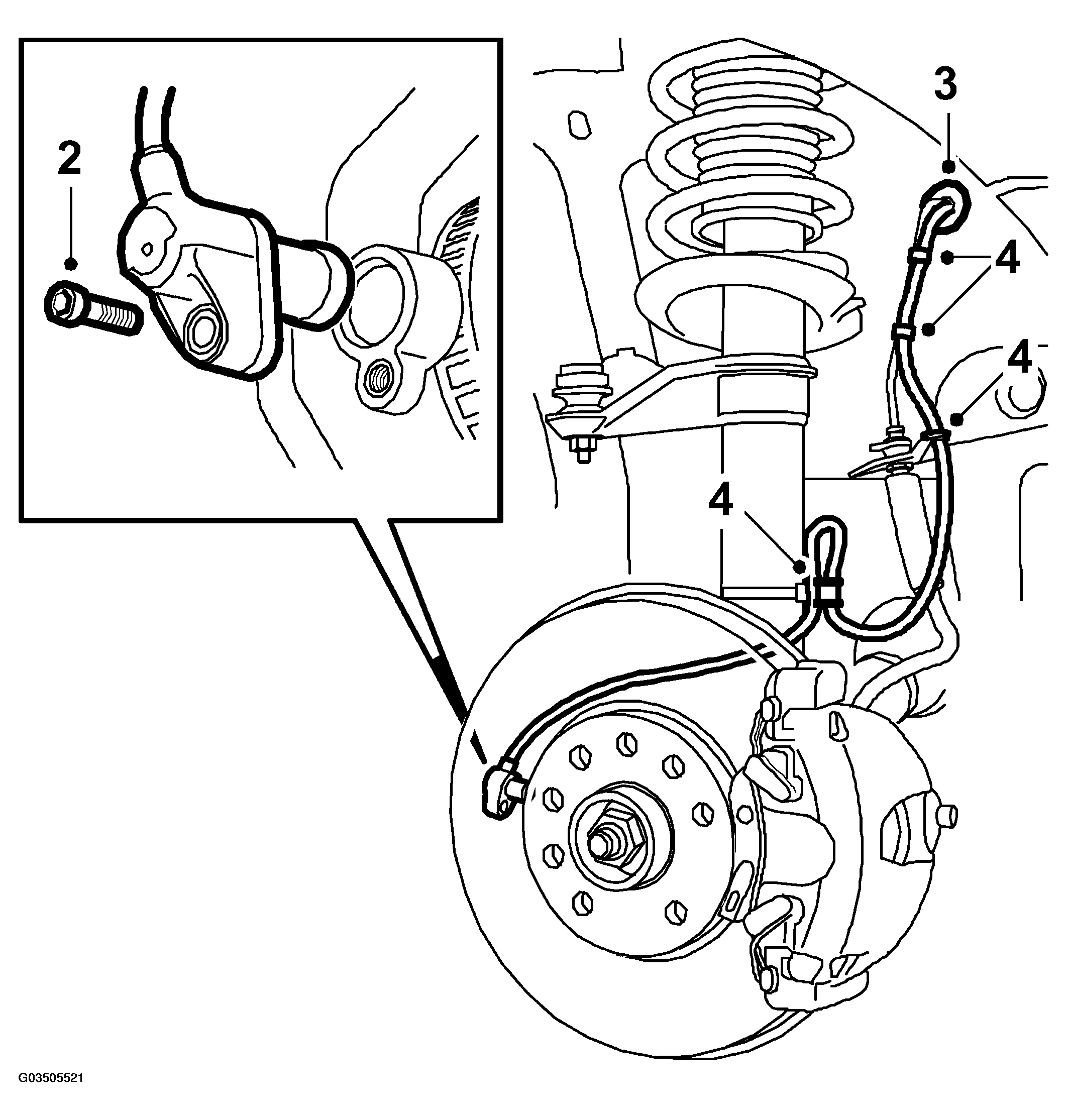

Fig 1: Illustration For Steps 2-4
G03505521Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Insert the lead and press the connector home.
  2. Fit the wheel sensor in its holder and tighten the retaining bolt.
  3. Smear the rubber grommet with a soap solution and fit it in lace.
  4. Press the lead into the retaining clips.
  5. Fit the wheel.

    Tightening torque 110 N.m (81 lbf ft)

  6. Plug in the connector.

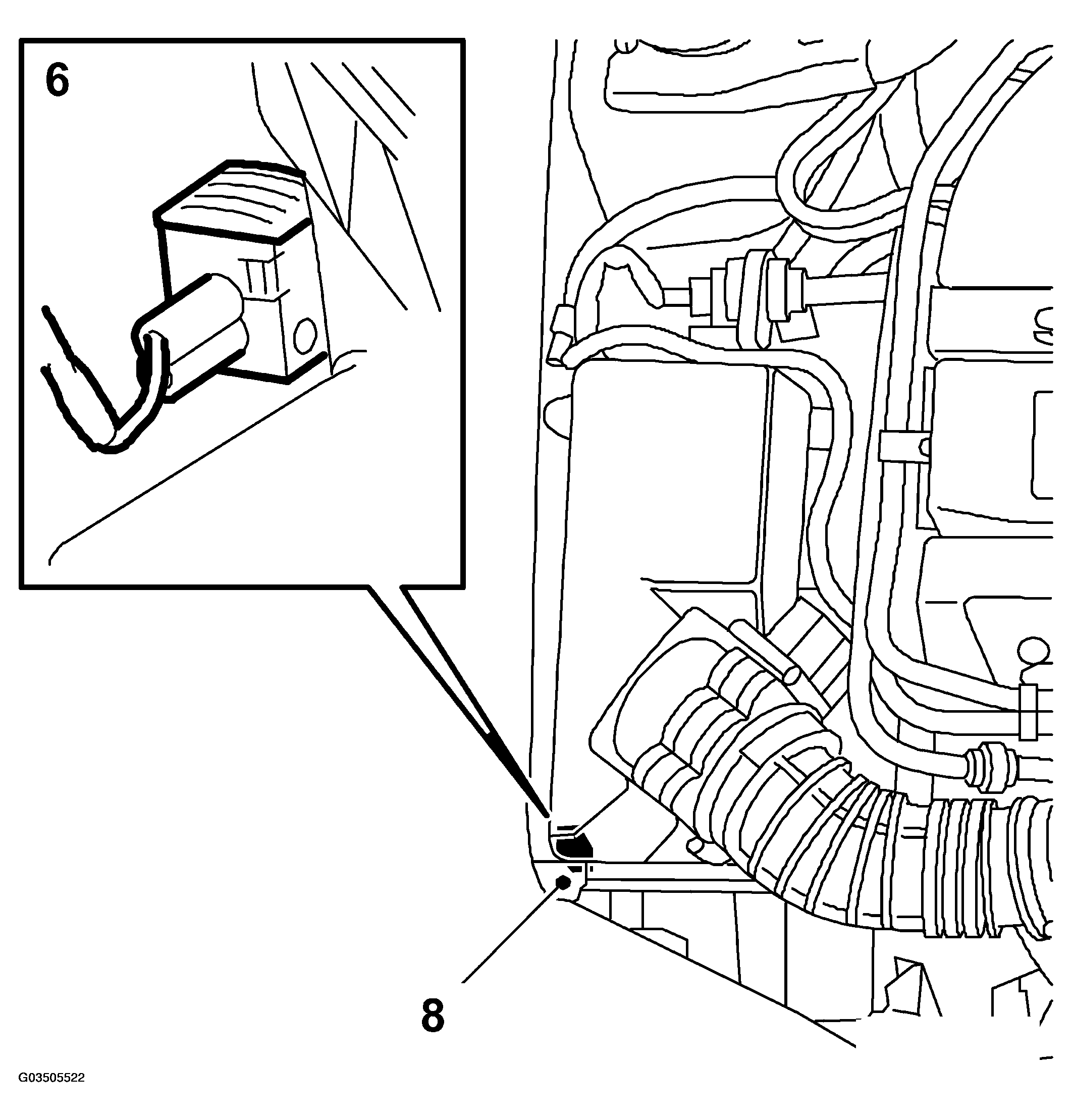

    Fig 2: Illustration For Steps 6 & 8
    G03505522Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit a new cable tie to the air cleaner's attachment point.
  8. Refit the top part of the air cleaner and, if removed earlier, the mass air flow sensor.
