To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

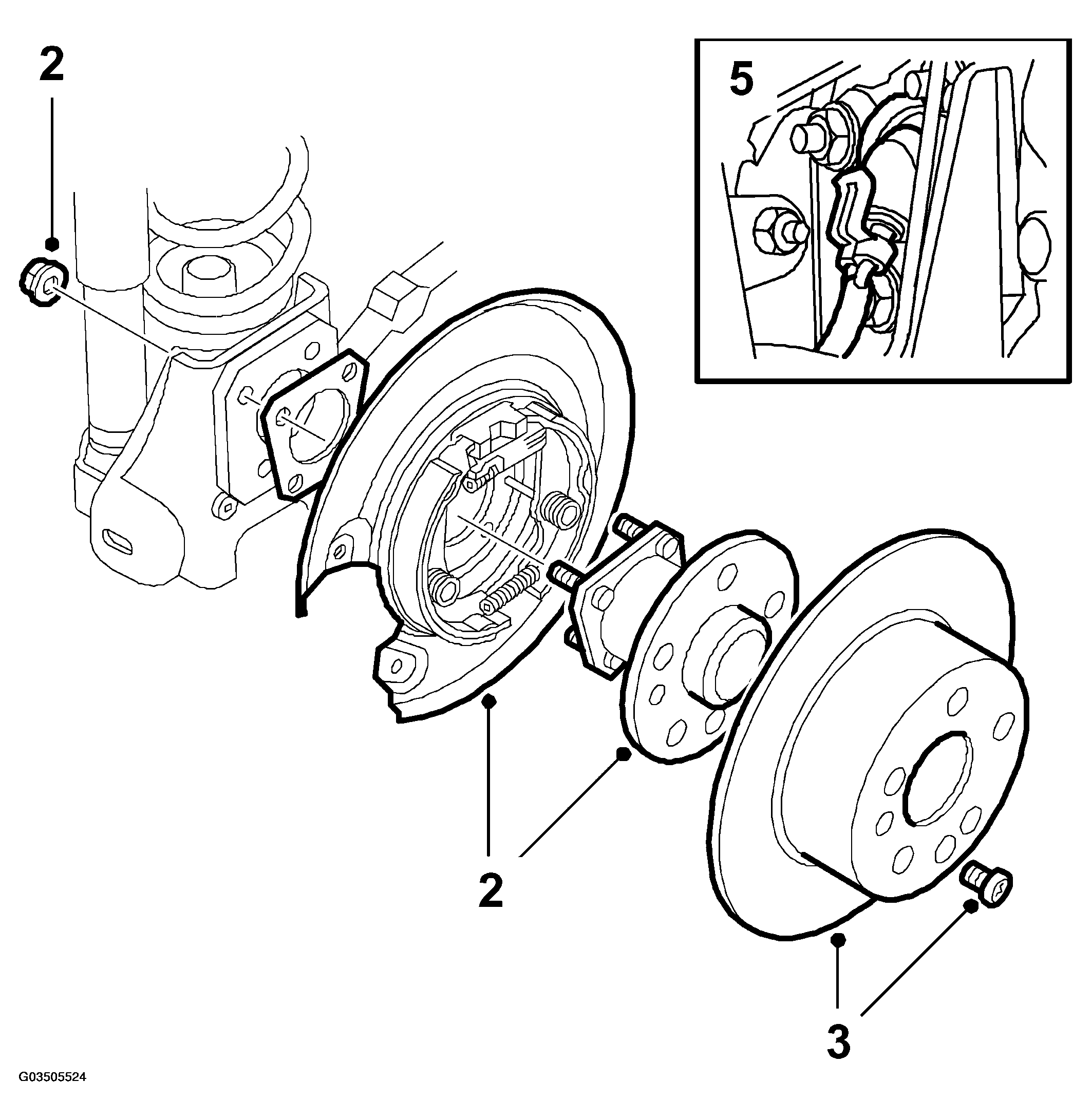

Fig 1: Illustration For Steps 2, 3 & 5
G03505524Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Clean the contact surfaces using a wire brush.
  2. Fit the back-plate, spacer and wheel hub using new nuts.

    Tightening torque 50 N.m +30 (37 lbf ft +30)

  3. Fit the brake disc on the hub and tighten the retaining bolt, using a torque wrench and threadlocking adhesive.

    Tightening torque 10 N.m (7 lbf ft)

  4. Connect the handbrake cable to the lever.
  5. Fit the return spring on the lever and plug the connector into the wheel sensor.
  6. Fit the brake caliper and tighten the retaining screws using thread locking compound (Loctite 242, part no 74 96 268).

    Tightening torque: 80 N.m (59 lbf ft)

  7. Press the brake pipe securely in the clips.
  8. Using a screwdriver, unscrew the adjuster until the brake disc is blocked.
  9. Then screw the adjuster back until the brake disc can rotate freely.
  10. Fit the wheel.

    Tightening torque 110 N.m (81 lbf ft)

  11. Depress the brake pedal to press out the brake pads.
