Technical data: Siren
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

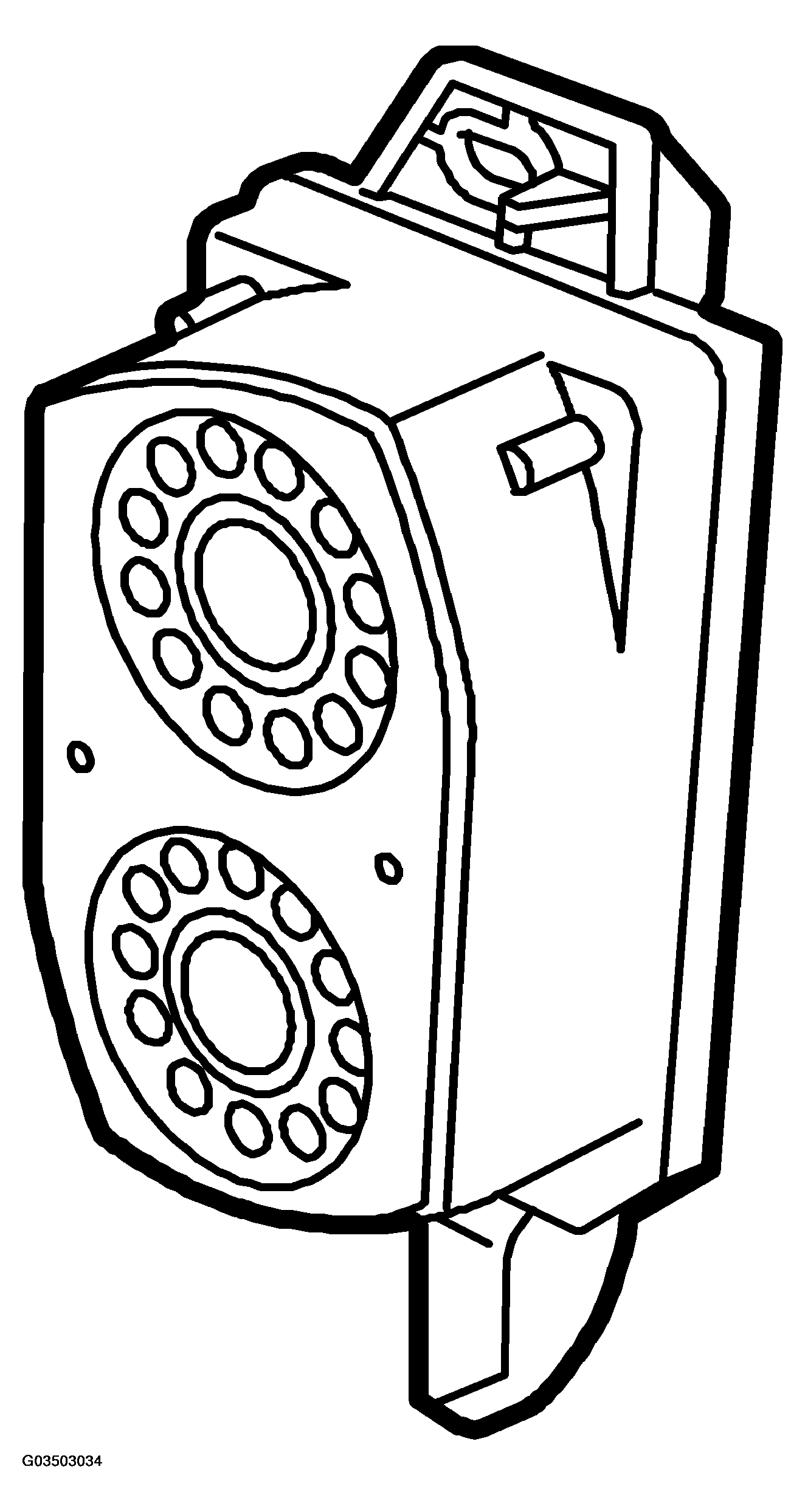

Courtesy of SAAB-SCANIA OF AMERICA, INC. SIREN DESCRIPTIONS
| Location |
|
LH front wheel housing (rear edge) |
| Type |
|
Piezo-electric with battery back-up |
| Power supply |
Pin No. 1 |
|
| Communication |
Pin No. 3 |
|
| Ground |
Pin No. 2 |
|
| Sound pressure 1 meter in front of car |
dB (A) 100 |
|
