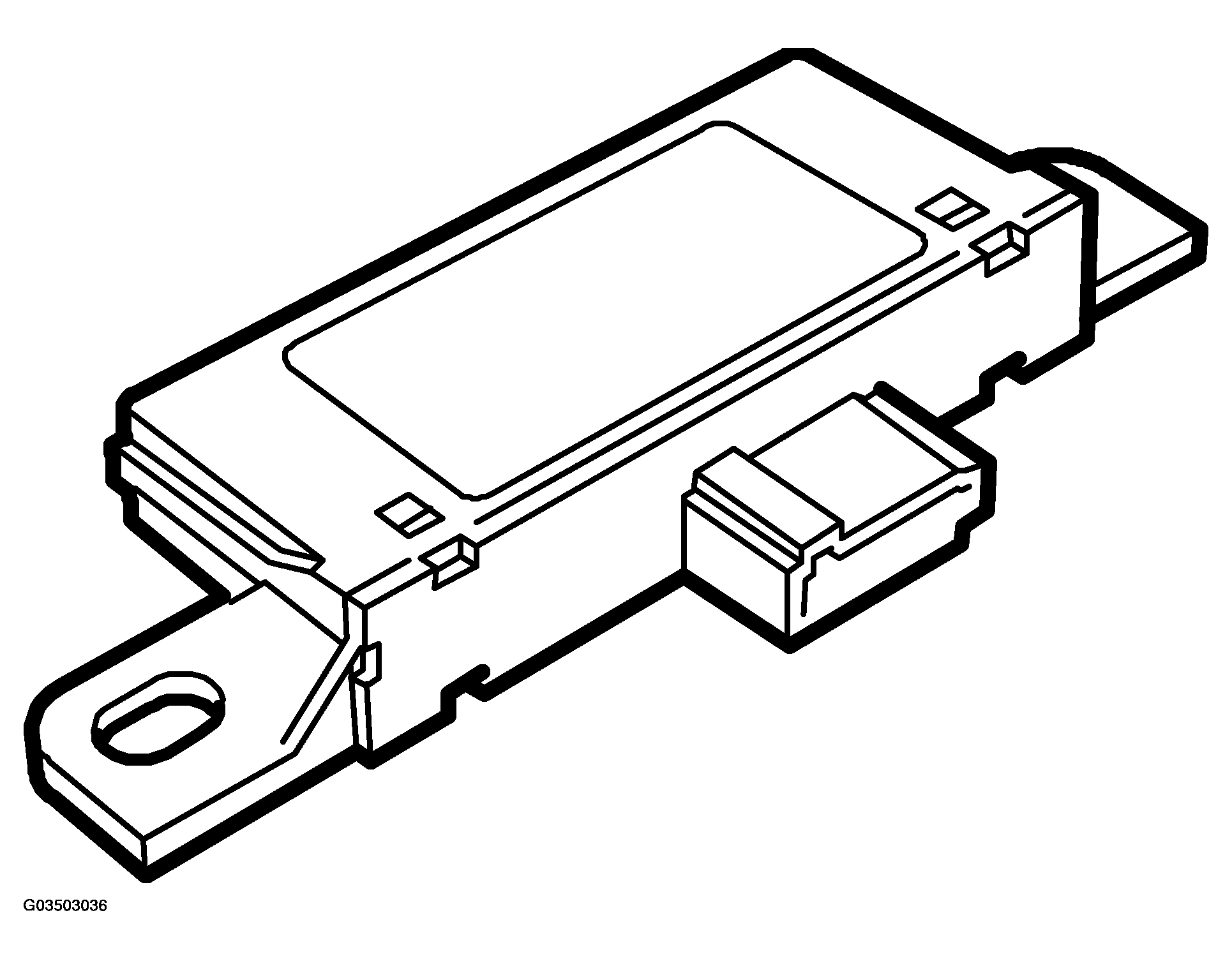

Receiver, remote control
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. RECEIVER, REMOTE CONTROL DESCRIPTIONS
| Location |
|
Centre console, left rear section |
| Frequency (carrier wave) |
|
EU 433.92 MHz |
| US/CA/AU/JP 315 MHz |
| Power supply B+ |
Pin No. 3 |
|
| Signal |
Pin No. 1 |
|
| Ground |
Pin No. 2 |
|
