Microswitch in luggage compartment lock, disarm tailgate

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

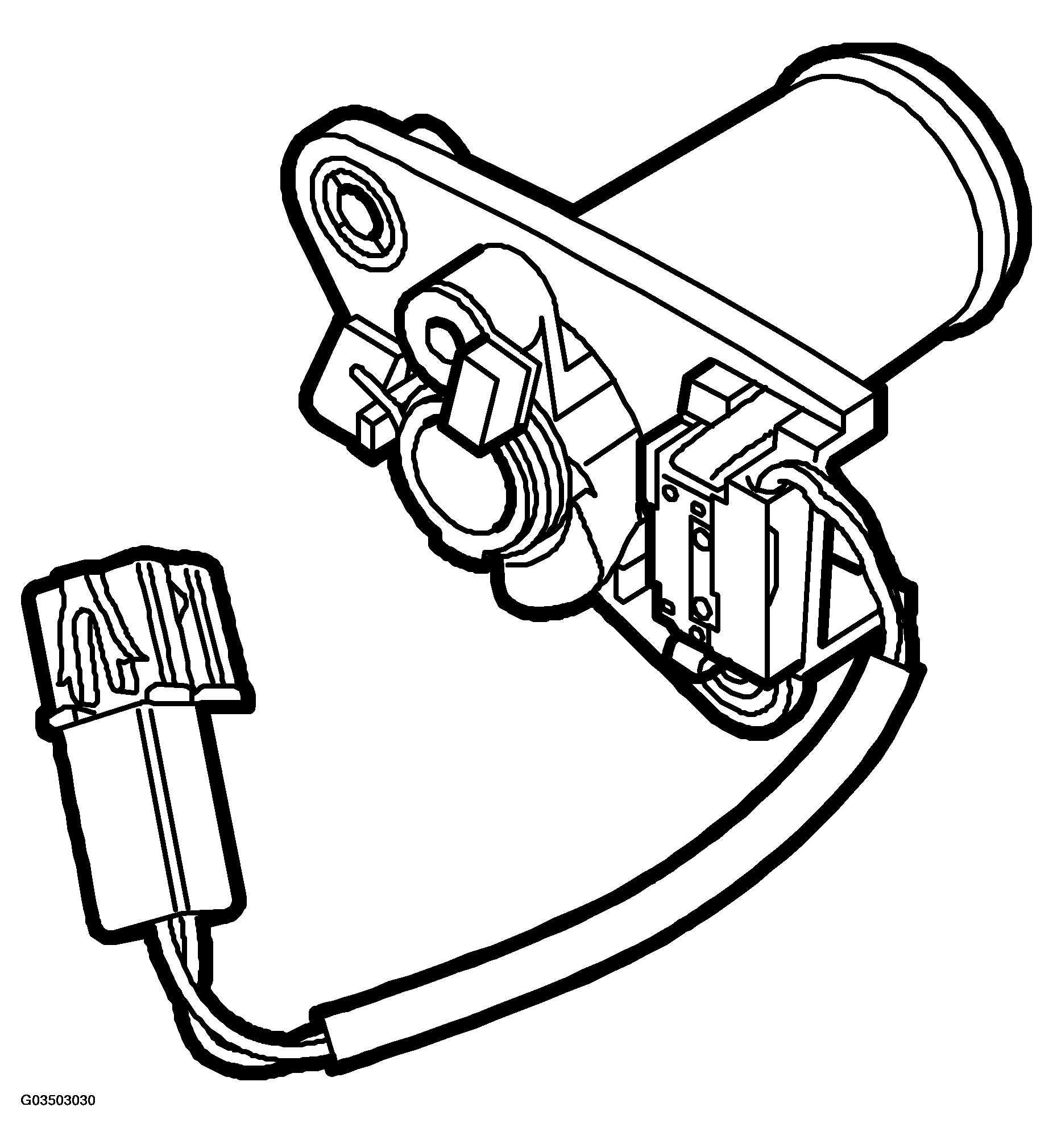

Fig 1: Identifying Microswitch
G03503030Courtesy of SAAB-SCANIA OF AMERICA, INC.
MICROSWITCH DESCRIPTIONS

Location   On tailgate lock cylinder
Type   Normally open
Power supply PWM approx. 3.5% Pin No. 1
Ground Pin No. 2
