Key switch in front doors

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

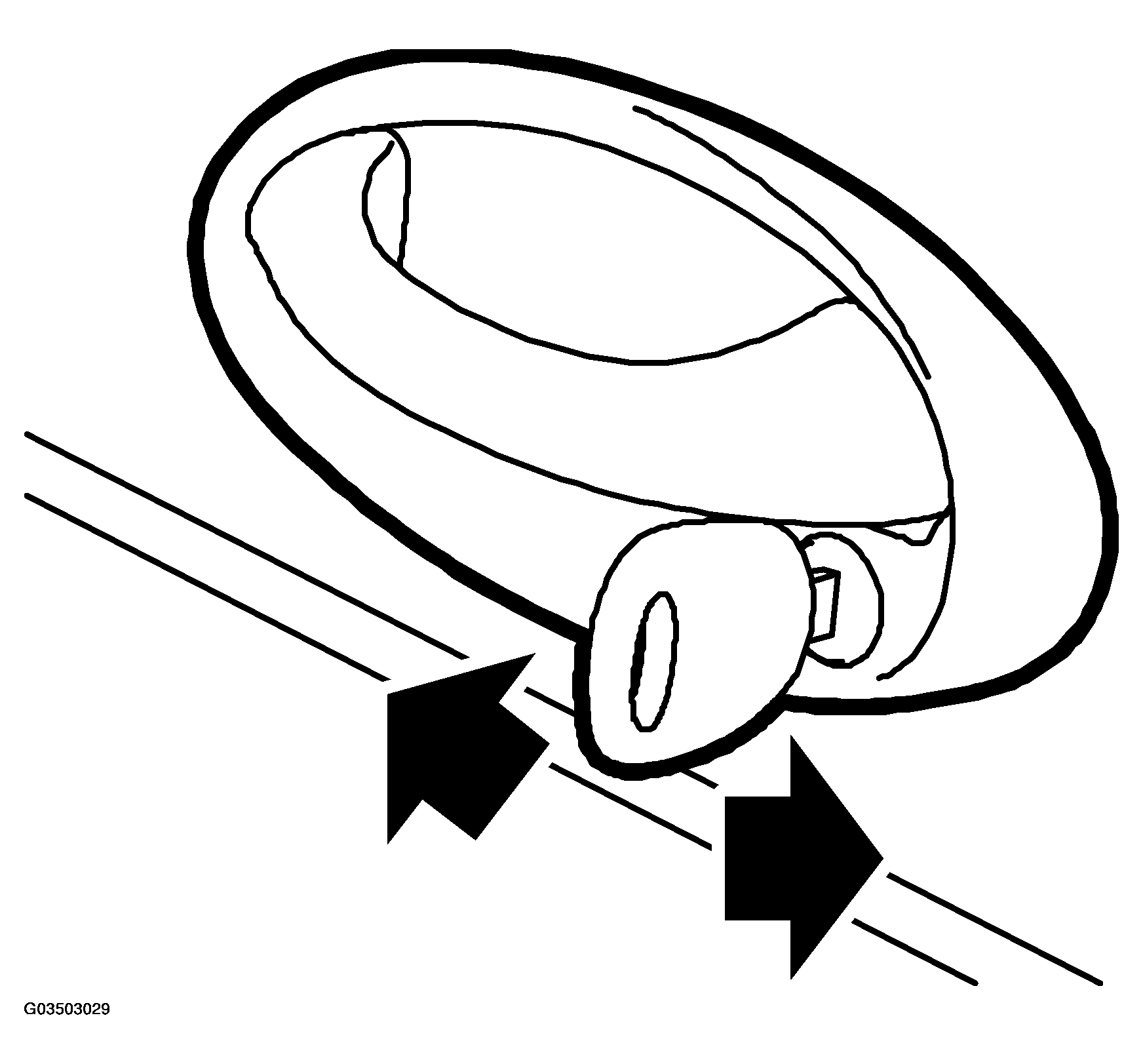

Fig 1: Identifying Key Switch In Front Doors
G03503029Courtesy of SAAB-SCANIA OF AMERICA, INC.
KEY SWITCH IN FRONT DOORS DESCRIPTIONS

Location   In lock unit
Type   Normally open
Lock Pin No. 6
Unlock Pin No. 2
Ground Pin No. 5
