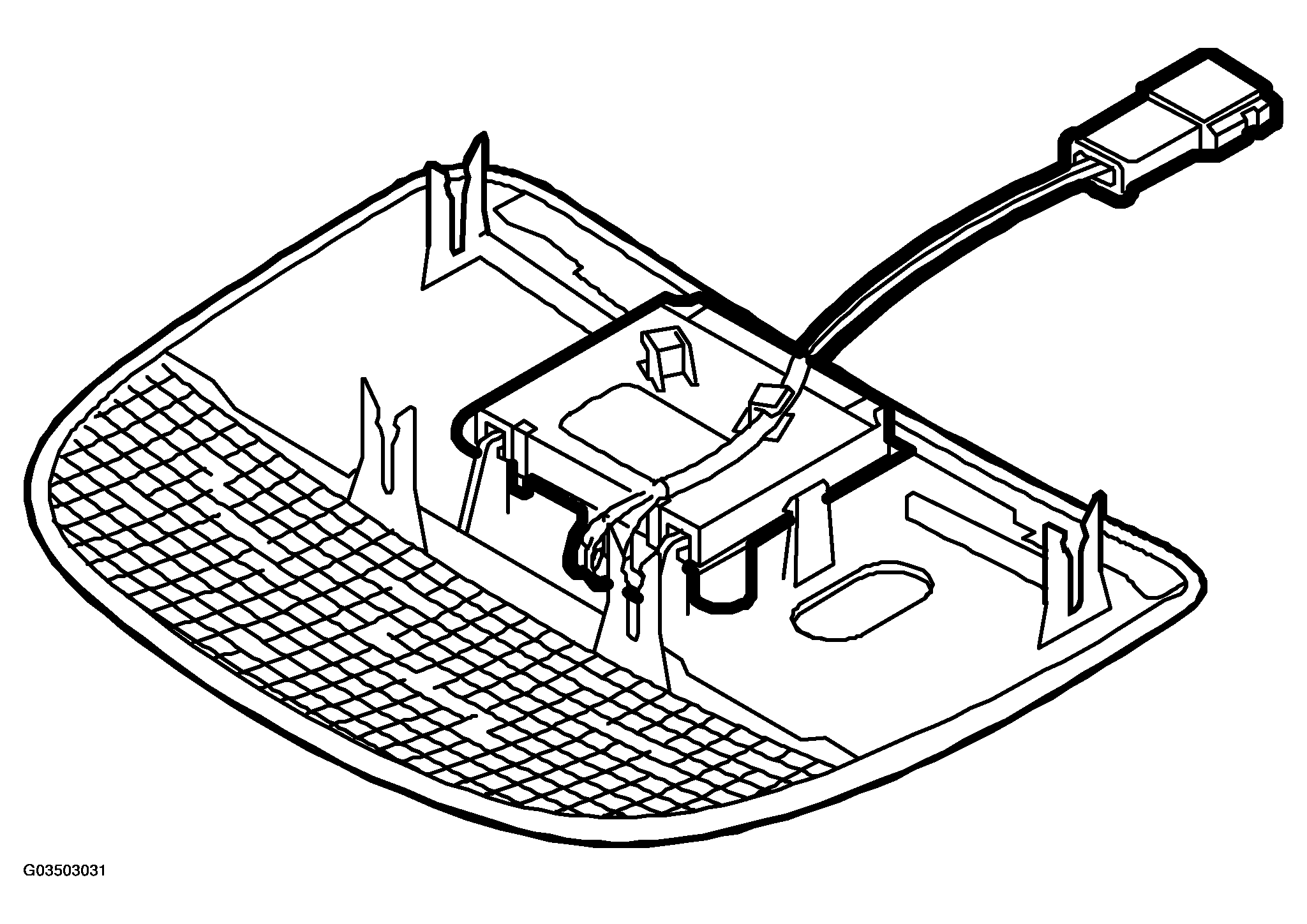

Glass breakage sensor
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. GLASS BREAKAGE SENSOR DESCRIPTIONS
| Location |
3D/5D |
Rear roof light |
| |
Cabriolet At interior rear-view mirror |
| Type |
|
Acoustic |
| Power supply B+ |
Pin No. 2 |
|
| Communication |
Pin No. 1 |
|
| Ground |
Pin No. 3 |
|
| Frequency range |
40 kHz band |
|
