Antenna unit, immobilization

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

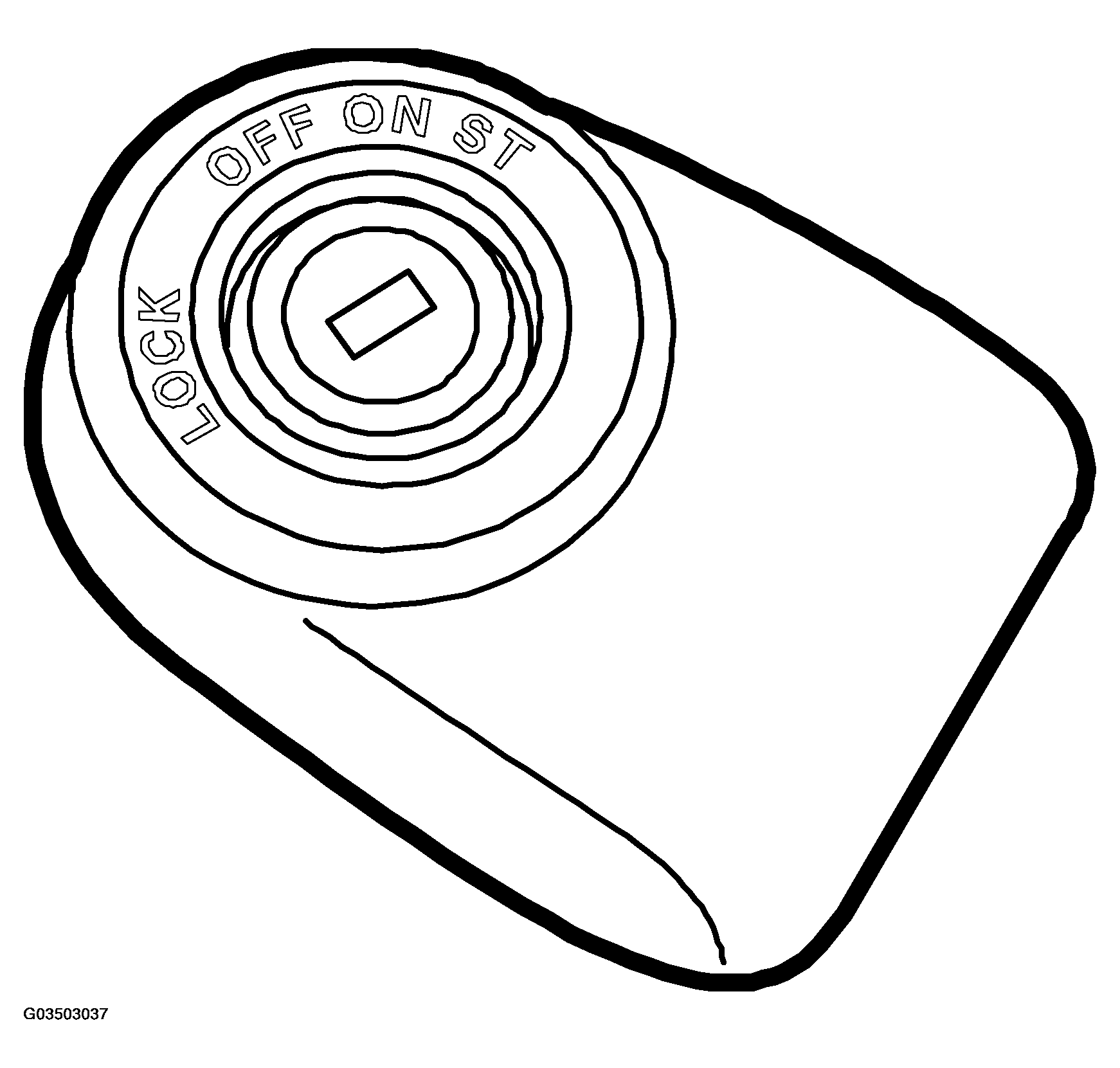

Fig 1: Identifying Antenna Unit (Immobilization)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

ANTENNA UNIT, IMMOBILIZATION DESCRIPTIONS

Location		On ignition switch
Power supply B+	Pin No. 1
Signal (data)	Pin No. 2
Ground	Pin No. 3
