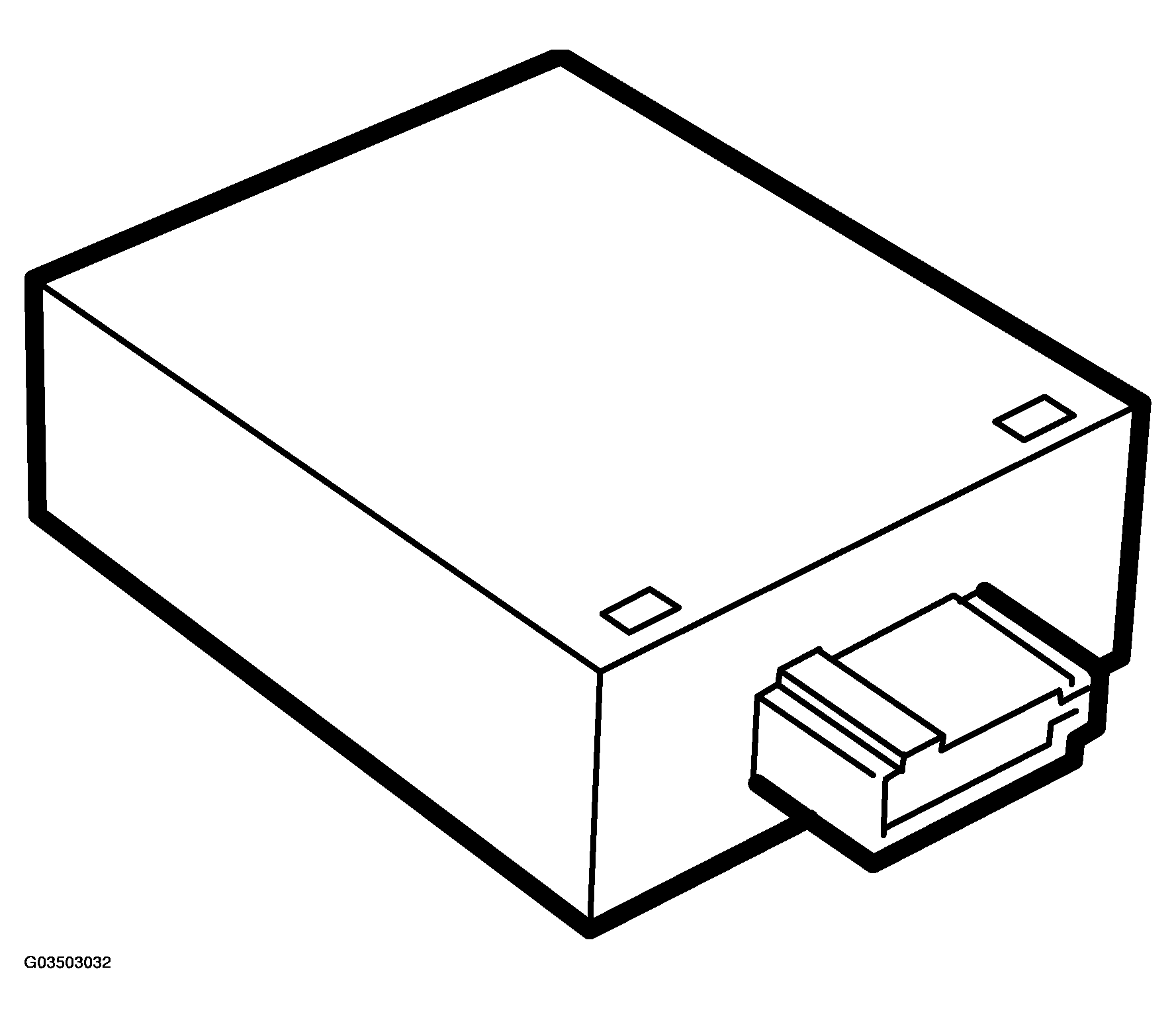

Angle sensor
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. ANGLE SENSOR DESCRIPTIONS
| Location |
|
Centre console, rear section |
| Type |
|
Fluid -filled |
| Power supply B+ |
Pin No. 1 |
|
| Communication |
Pin No. 3 |
|
| Ground |
Pin No. 4 |
|
