Receiver, remote control: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

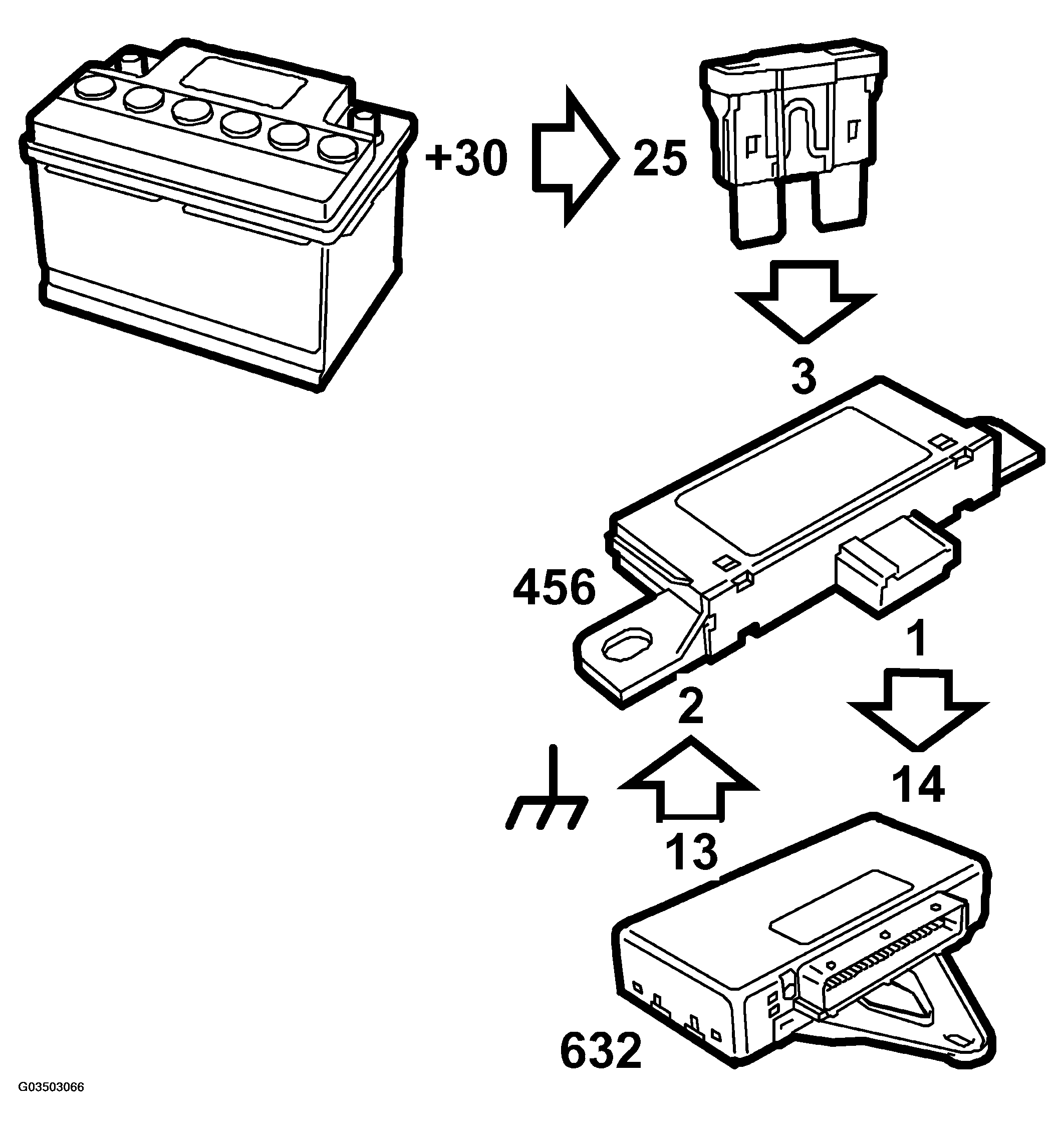

Fig 1: Identifying Power Supply Diagram (Receiver, Remote Control)
G03503066Courtesy of SAAB-SCANIA OF AMERICA, INC.

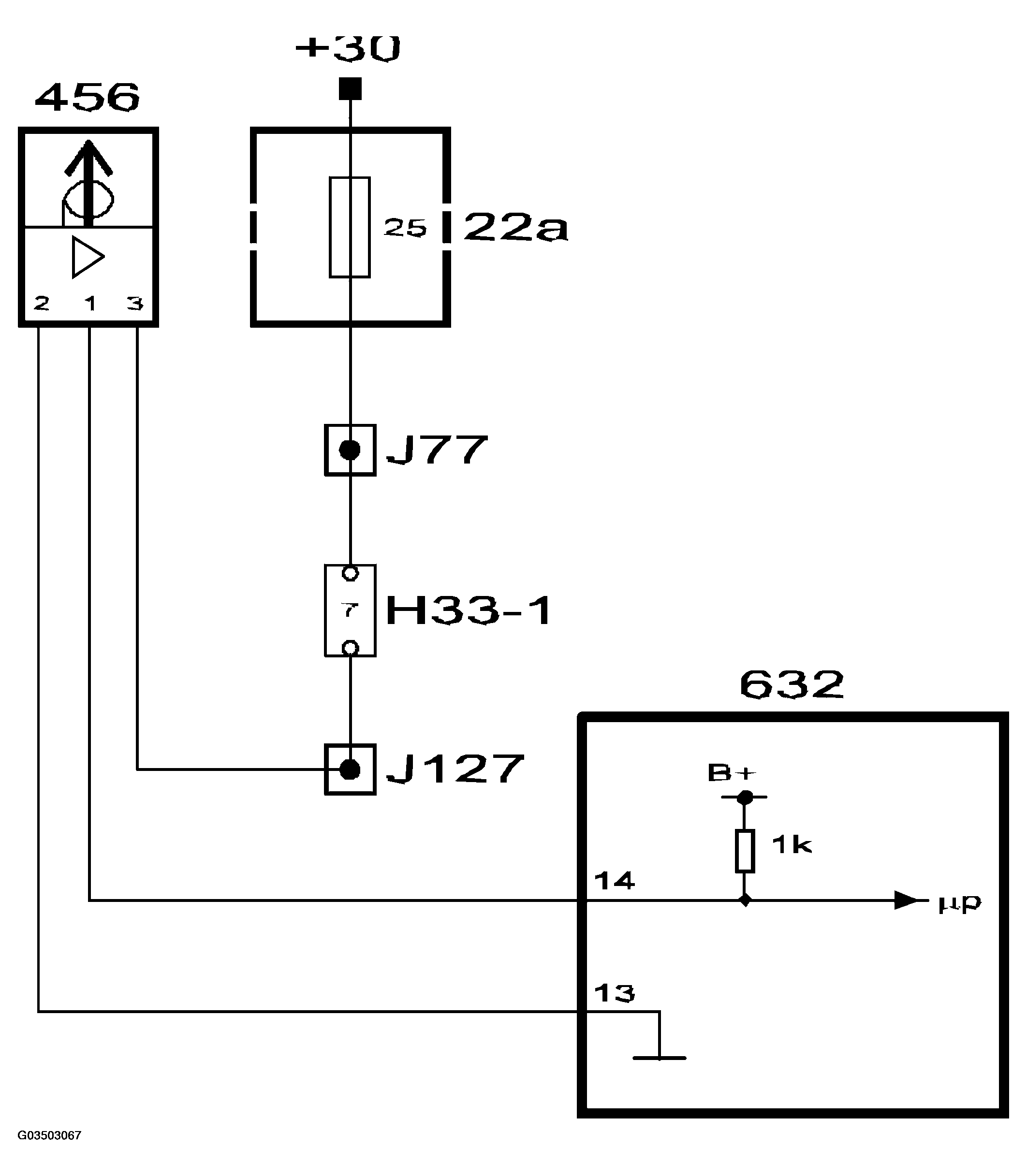

Fig 2: Circuit Diagram - Receiver, Remote Control
G03503067Courtesy of SAAB-SCANIA OF AMERICA, INC.
