Direction indicators: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

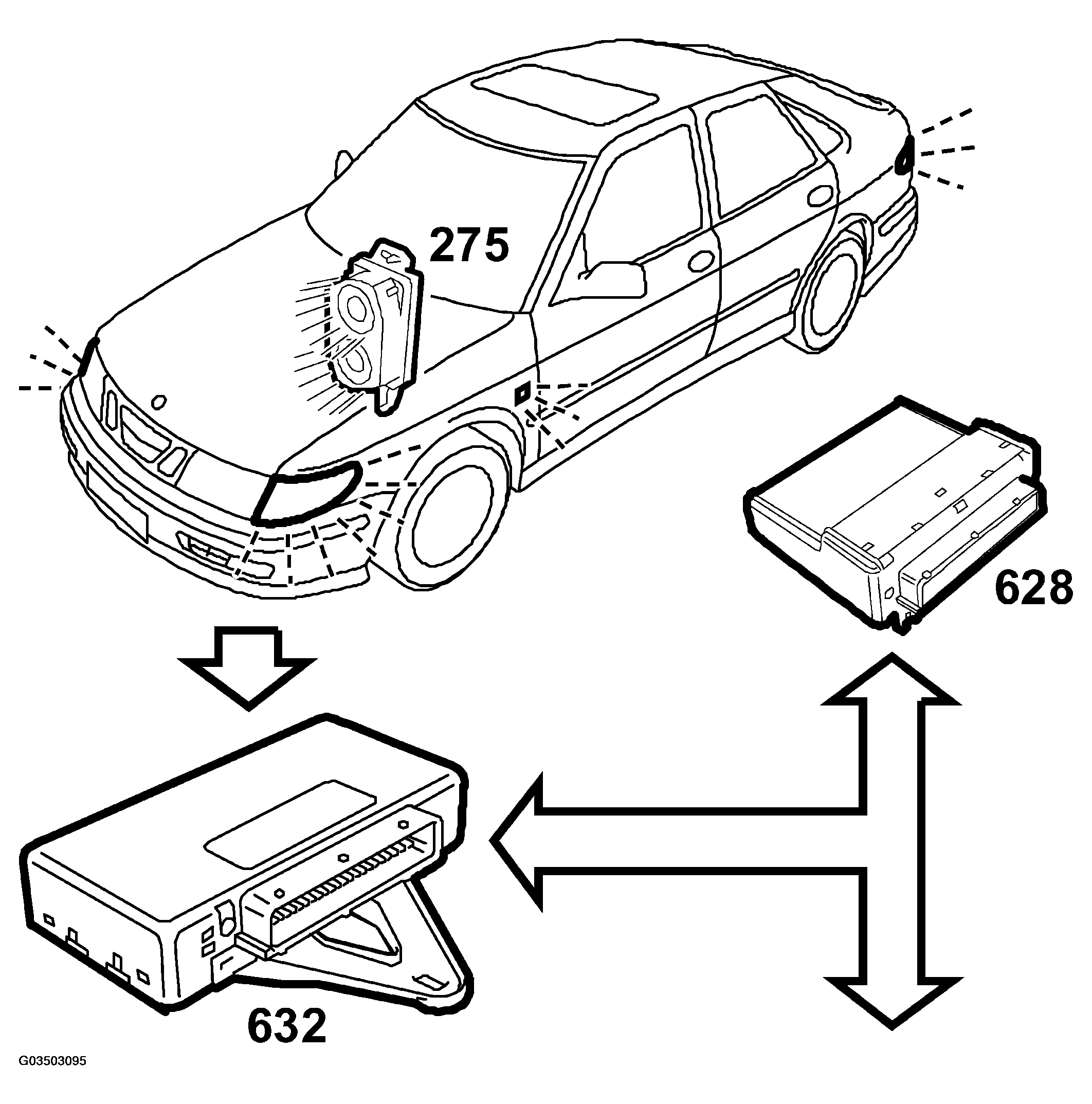

Fig 1: Communication Diagram - Direction Indicators
G03503095Courtesy of SAAB-SCANIA OF AMERICA, INC.

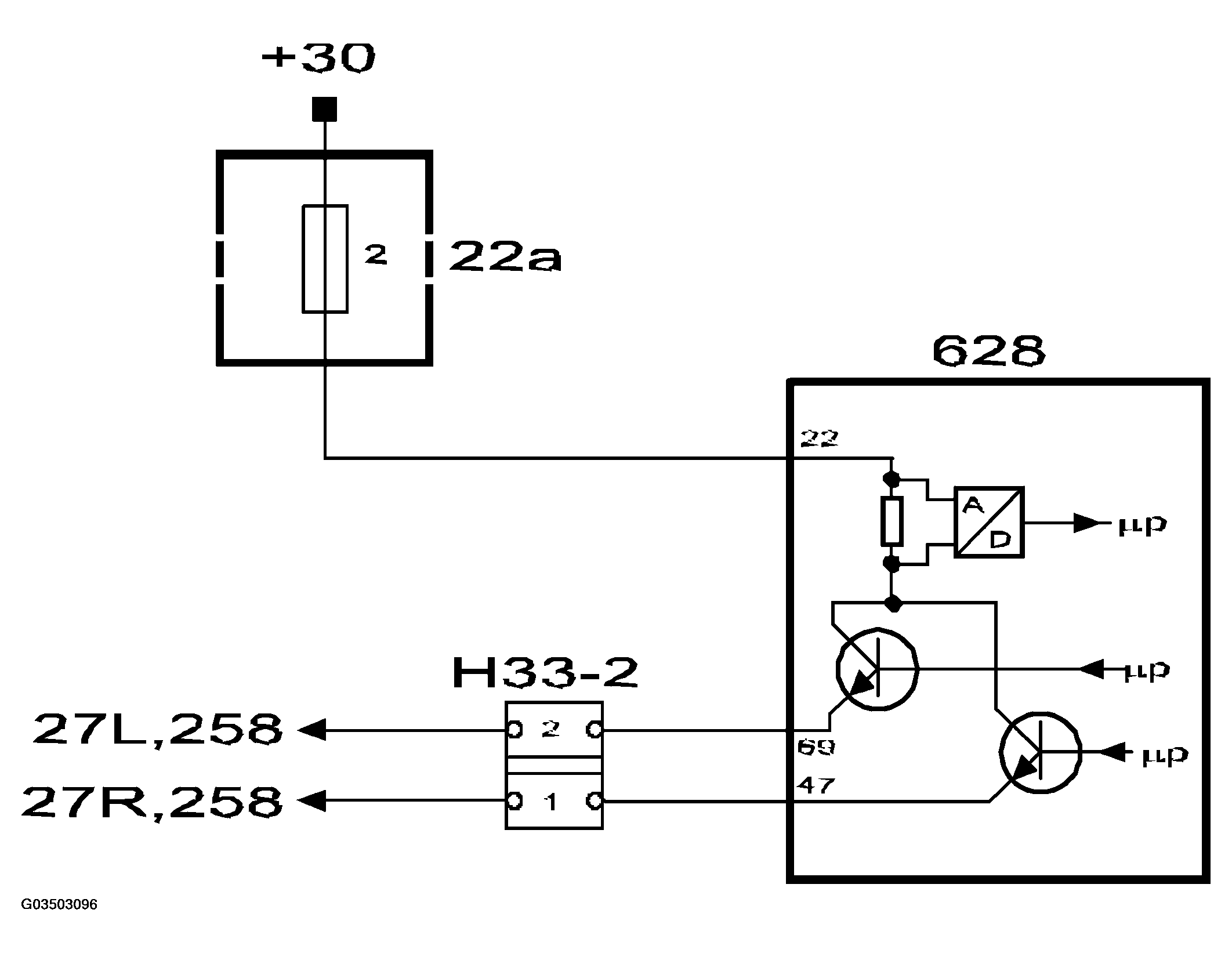

Fig 2: Circuit Diagram - Direction Indicators
G03503096Courtesy of SAAB-SCANIA OF AMERICA, INC.
