Anti-theft alarm
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

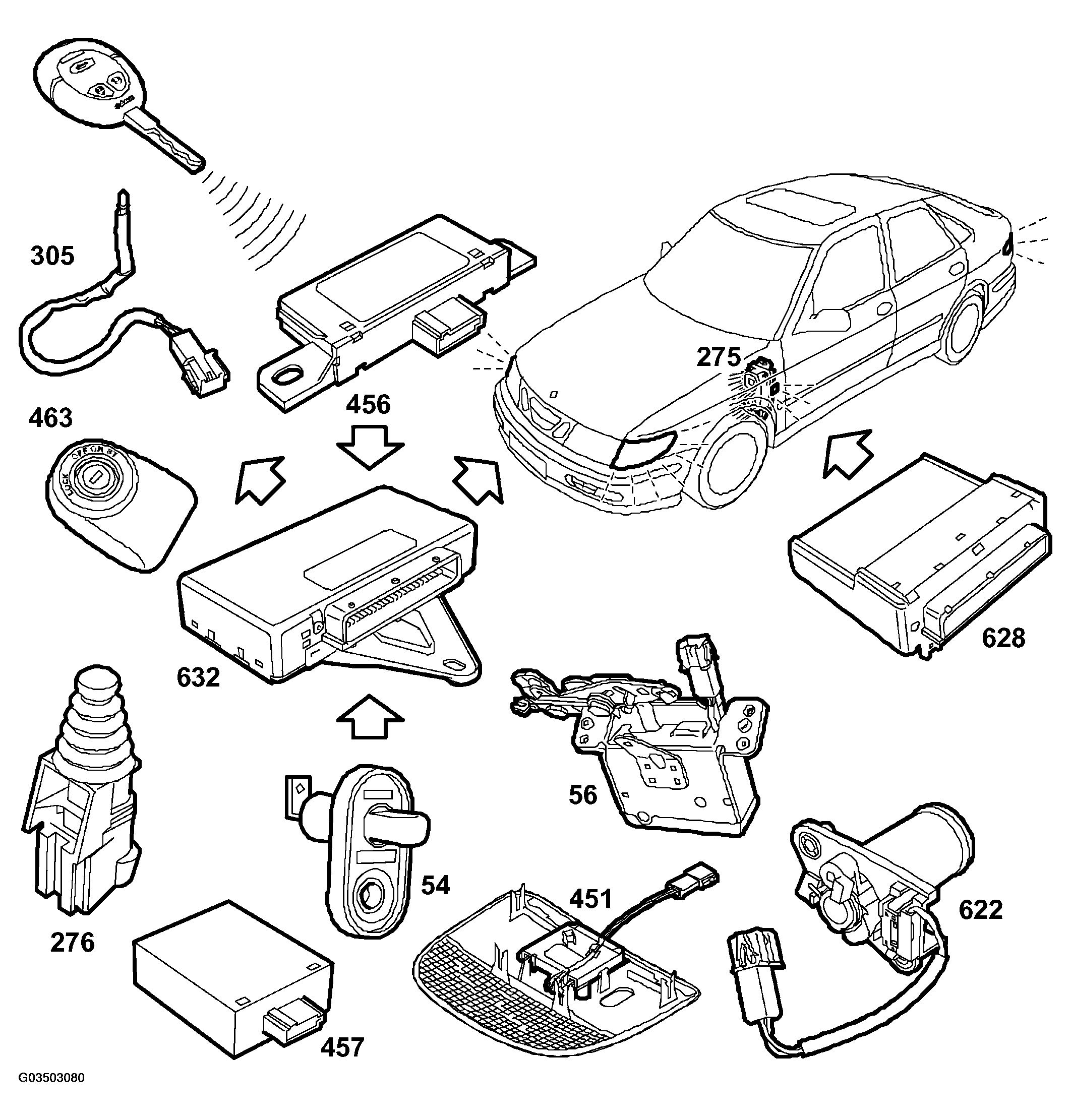

The following are used for the function of the anti-theft alarm:
- Remote control for arming and disarming the anti-theft alarm
- An LED (305) which shows the alarm status in various situations
- The following sensors which can detect a break-in situation:
- Door switches (54)
- Switch, luggage compartment illumination (56)
- Microswitch in luggage compartment lock, US/CA/LA (622)
- Bonnet switch (276)
- Glass breakage sensor (451)
- Angle sensor (457)
- The siren (275) and direction indicators (27) which sound and flash when the alarm is tripped.
