Glass Break Sensor, Front and/or Rear. No response

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

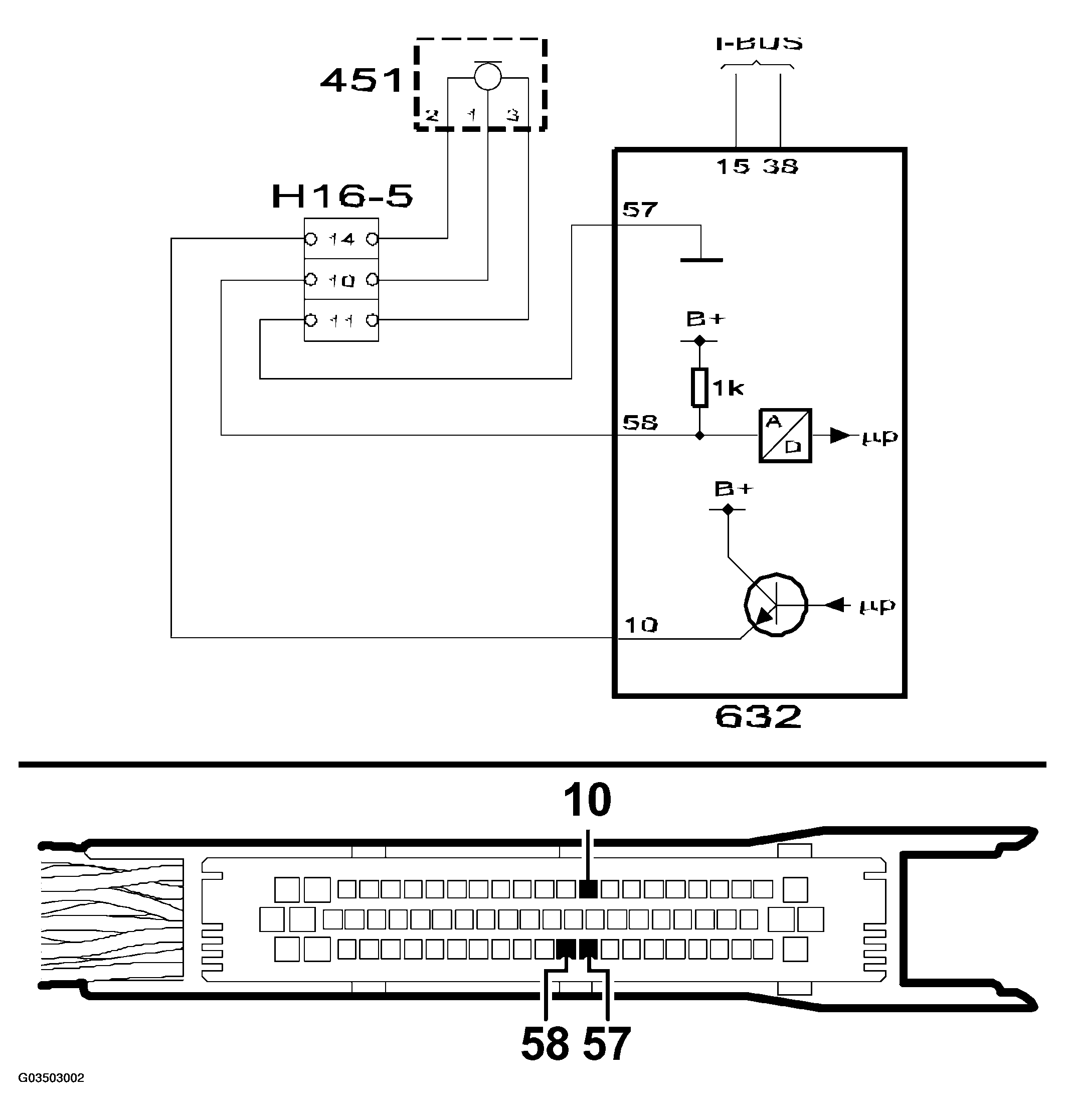

Fig 1: Circuit Diagram - Glass Break Sensor (Front Or Rear)
G03503002Courtesy of SAAB-SCANIA OF AMERICA, INC.
