Ignition switch (20)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

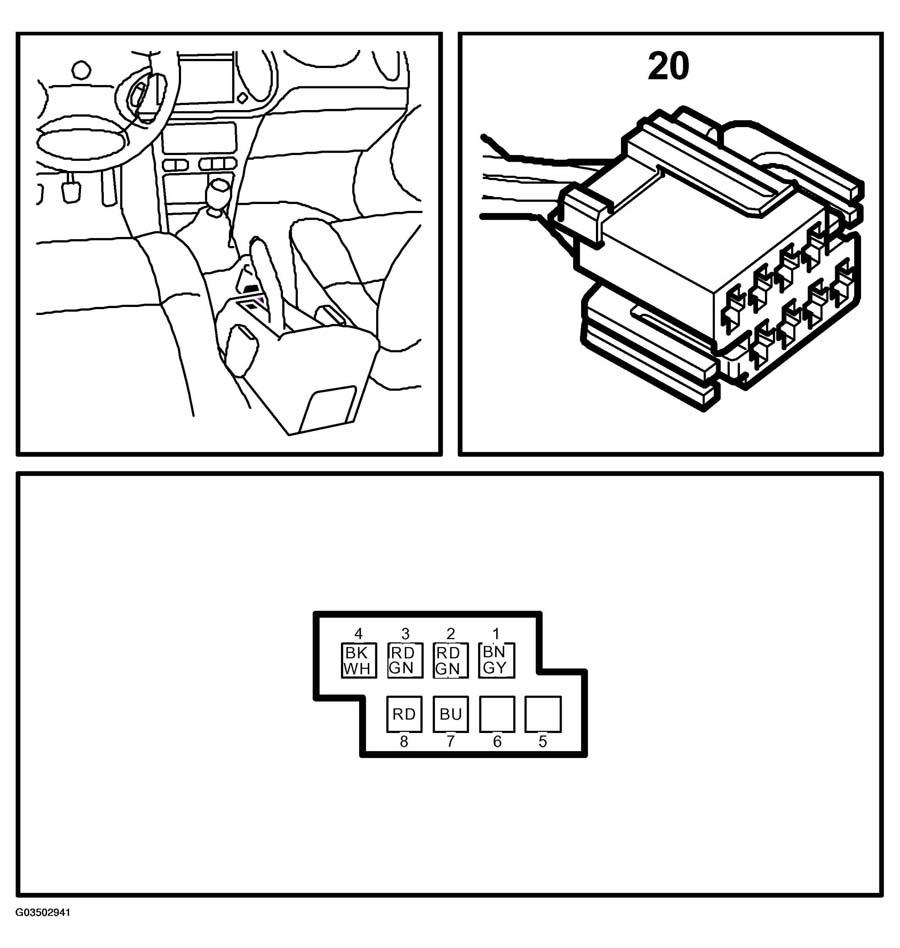

Fig 1: Identifying Ignition Switch Connector Pinouts
G03502941Courtesy of SAAB-SCANIA OF AMERICA, INC.
