To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

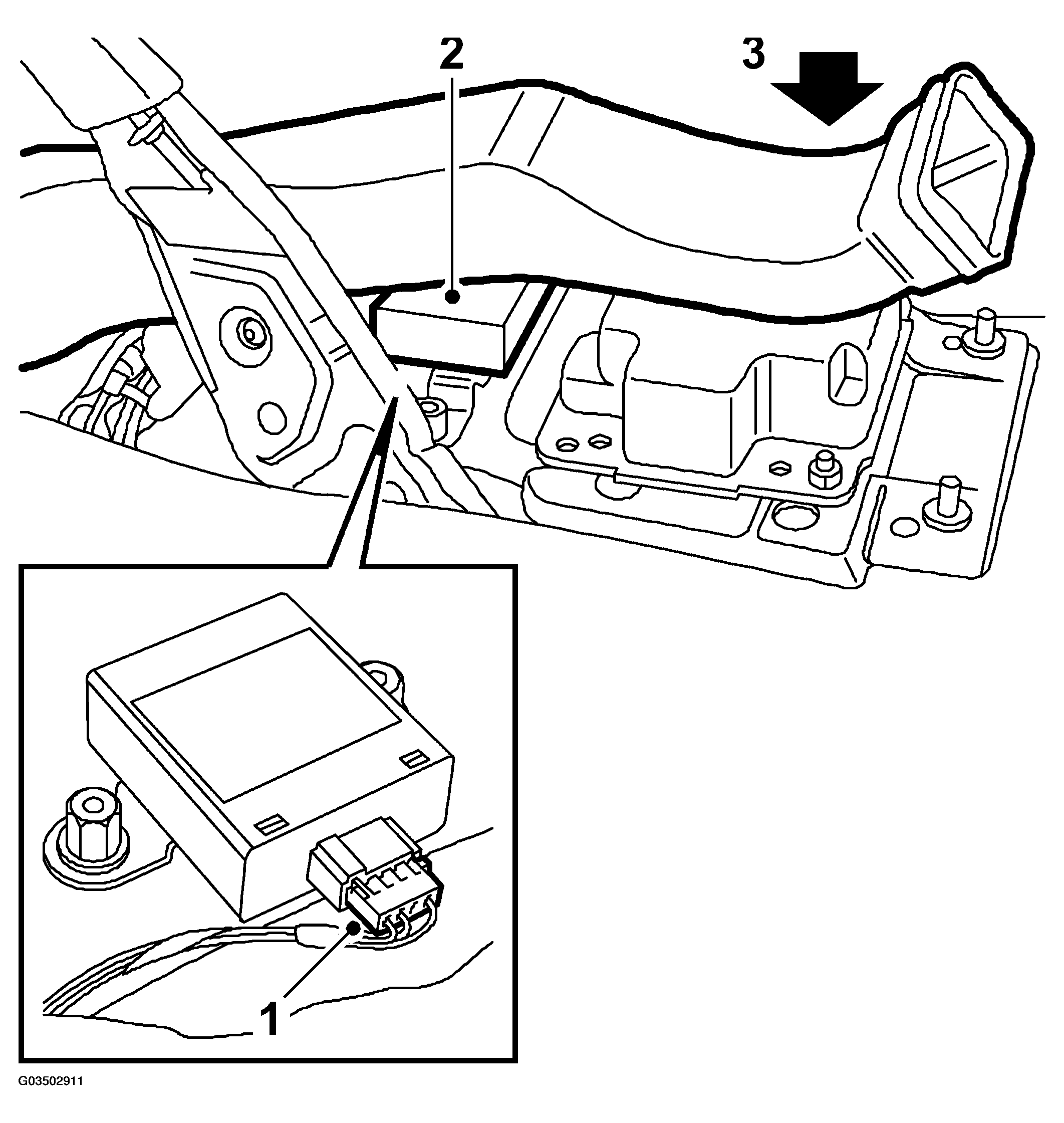

Fig 1: Illustration For Steps 1-3
G03502911Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the connector to the tilt sensor.
  2. Fit the sensor on its holder.
  3. Fit the floor duct in position.
  4. Fit the floor console in position.

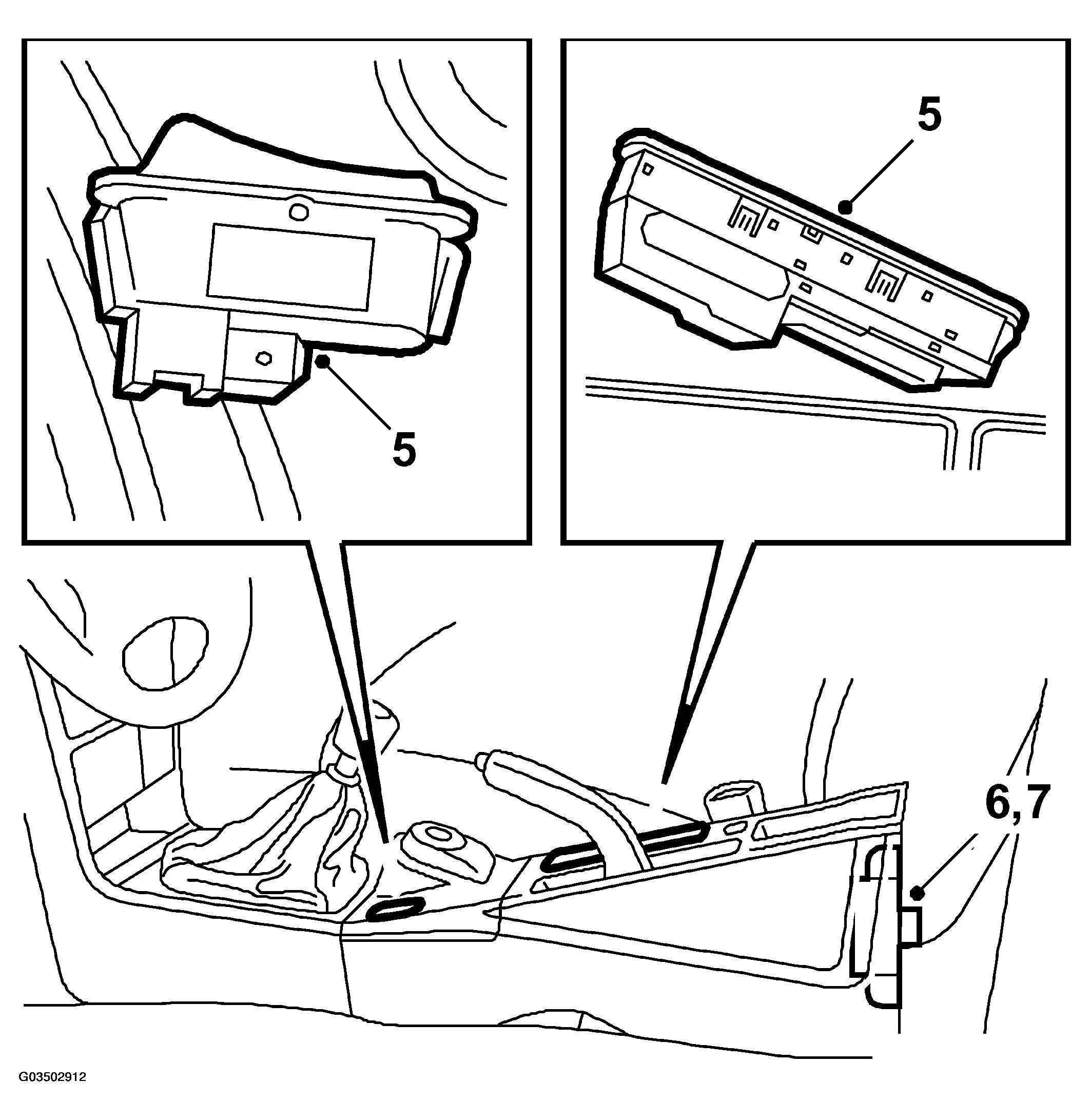

    Fig 2: Illustration For Steps 5-7
    G03502912Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the switch.
  6. Fit the remote control receiver.
  7. Fit the connector on the receiver.
  8. Screw the floor console in position with the 2 screws and 2 nuts.

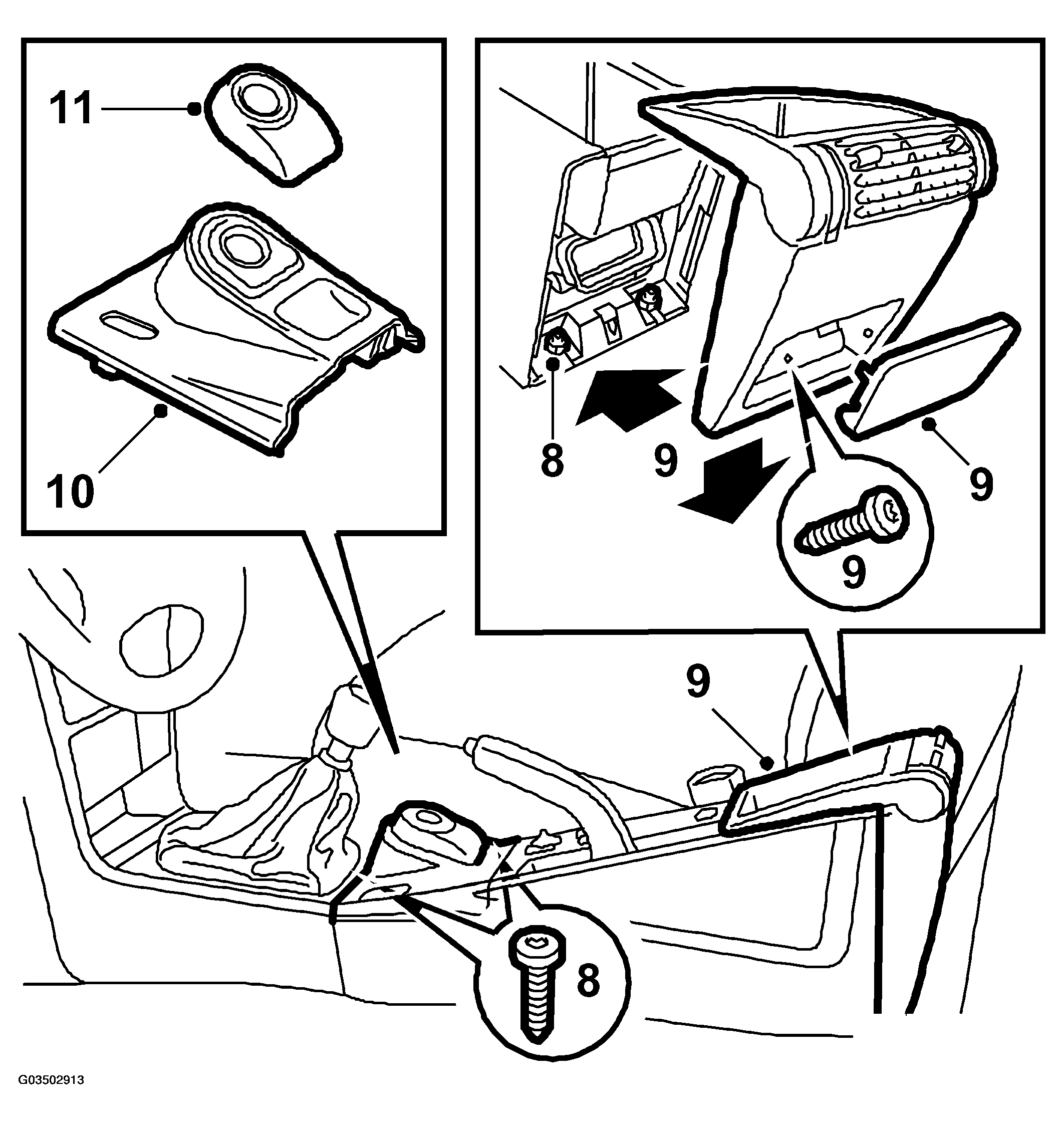

    Fig 3: Illustration For Steps 8-11
    G03502913Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Fit the rear section of the floor console.
  10. Fit the ignition switch cover.
  11. Fit the antenna unit.
