To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

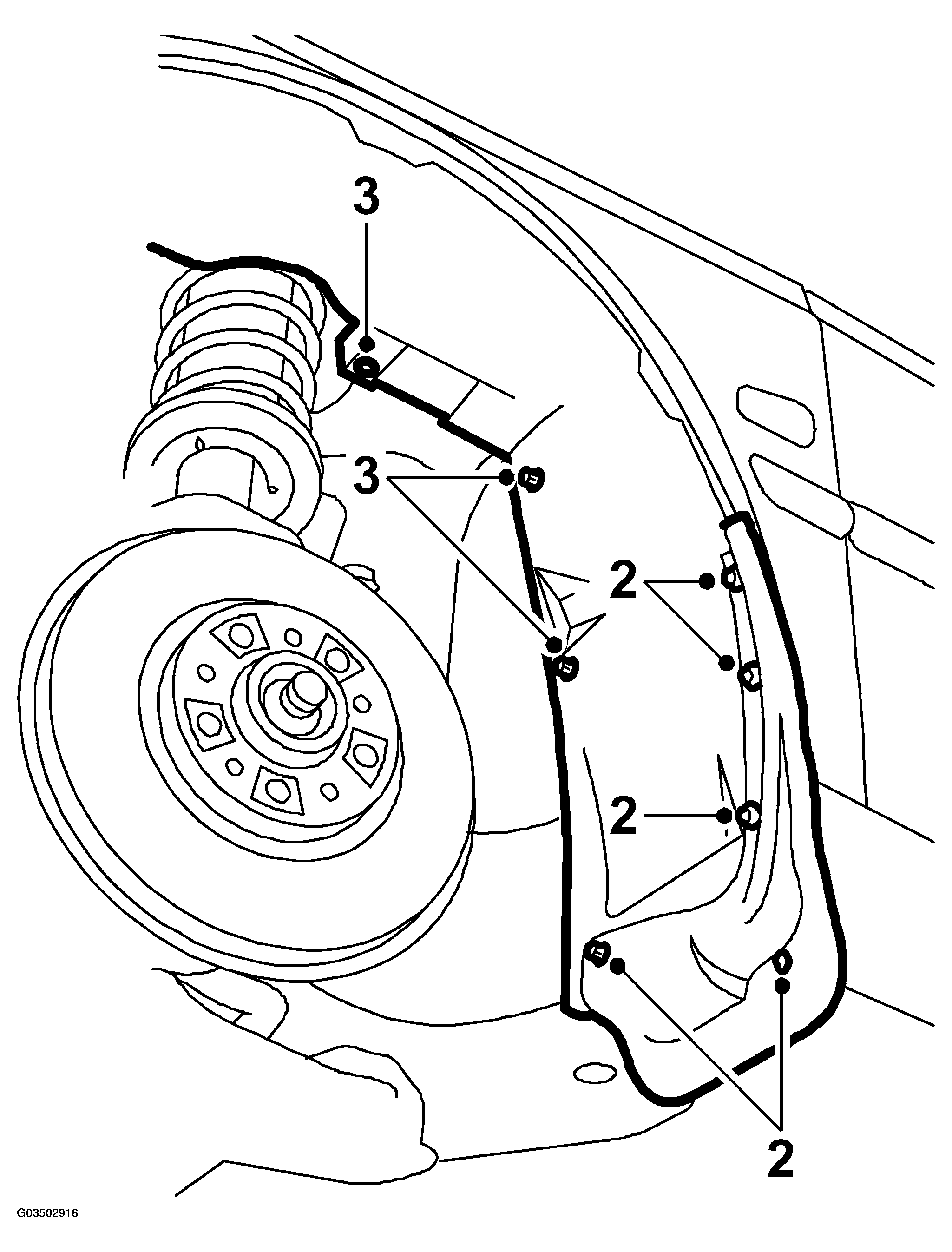

Fig 1: Illustration For Steps 2-3
G03502916Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car and remove the left front wheel.
  2. Remove the left front mudflap.
  3. Loosen 2 nuts and a rivet that hold the rear edge of the wing liner.
  4. Remove the 2 nuts that hold the siren.

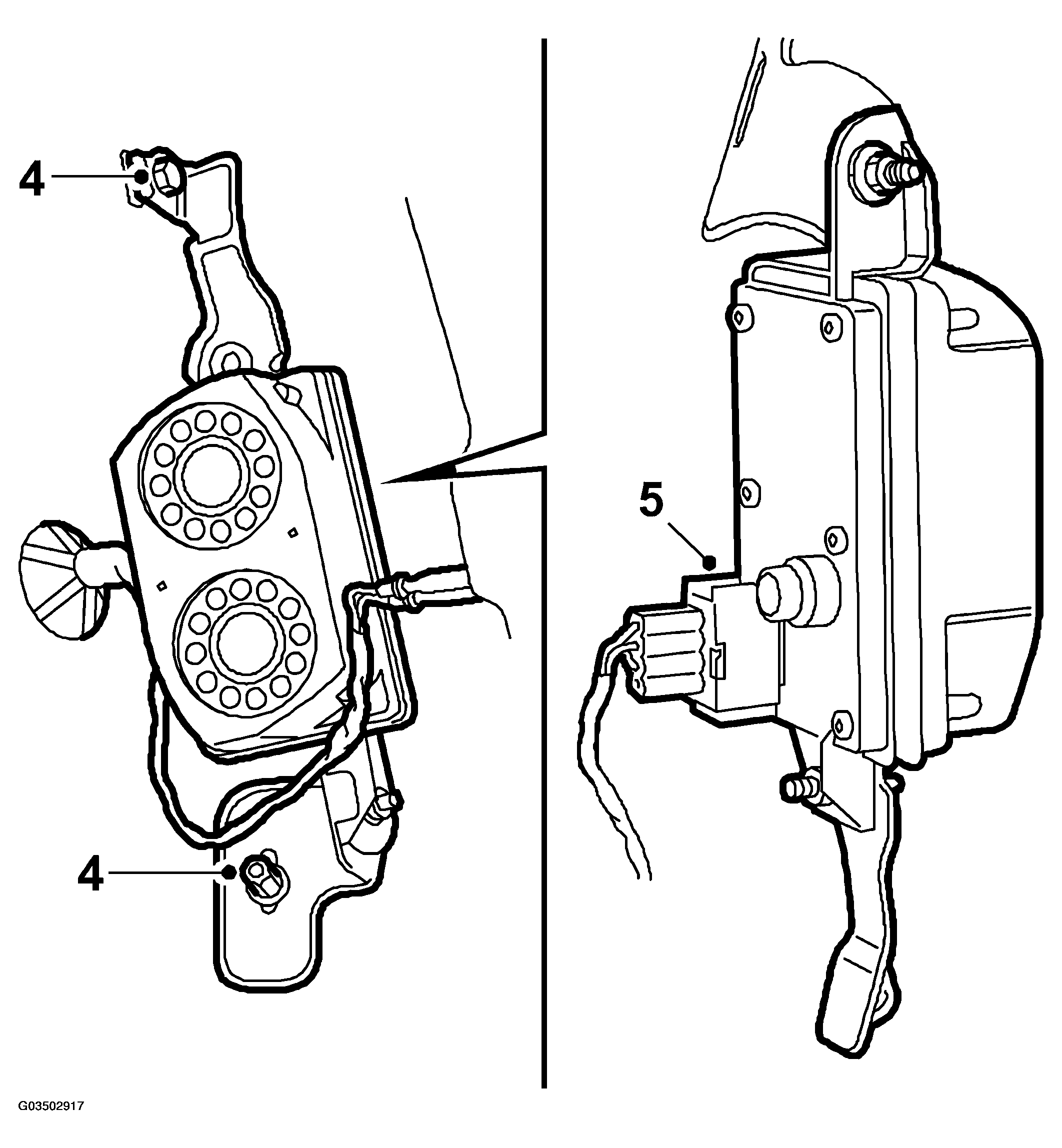

    Fig 2: Illustration For Steps 4-5
    G03502917Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Disconnect the electrical connector and remove the siren.
