To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

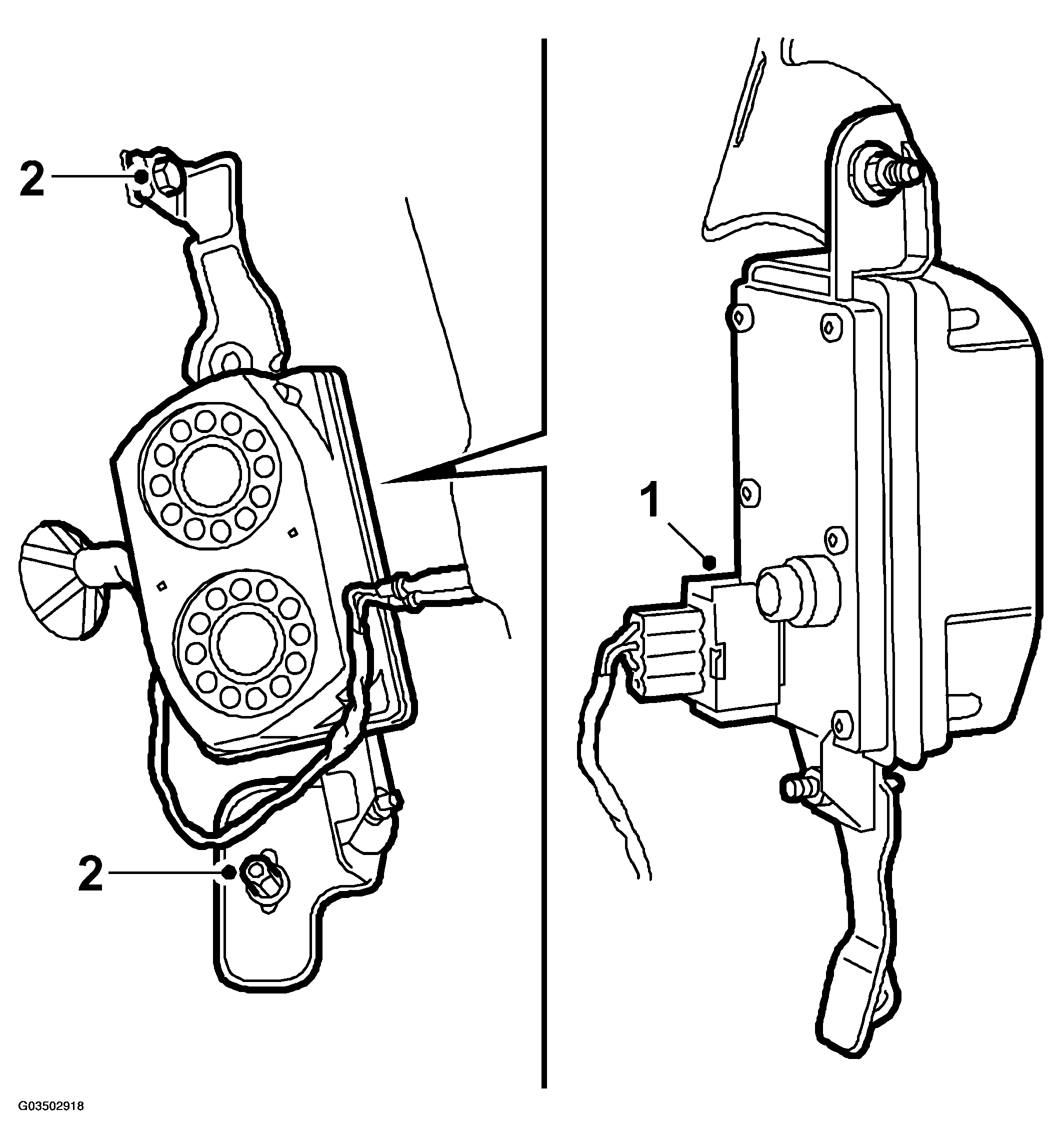

Fig 1: Illustration For Steps 1-2
G03502918Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the connector on the siren.
  2. Fit the siren.
  3. Fit the wing liners using the 2 nuts and a rivet.

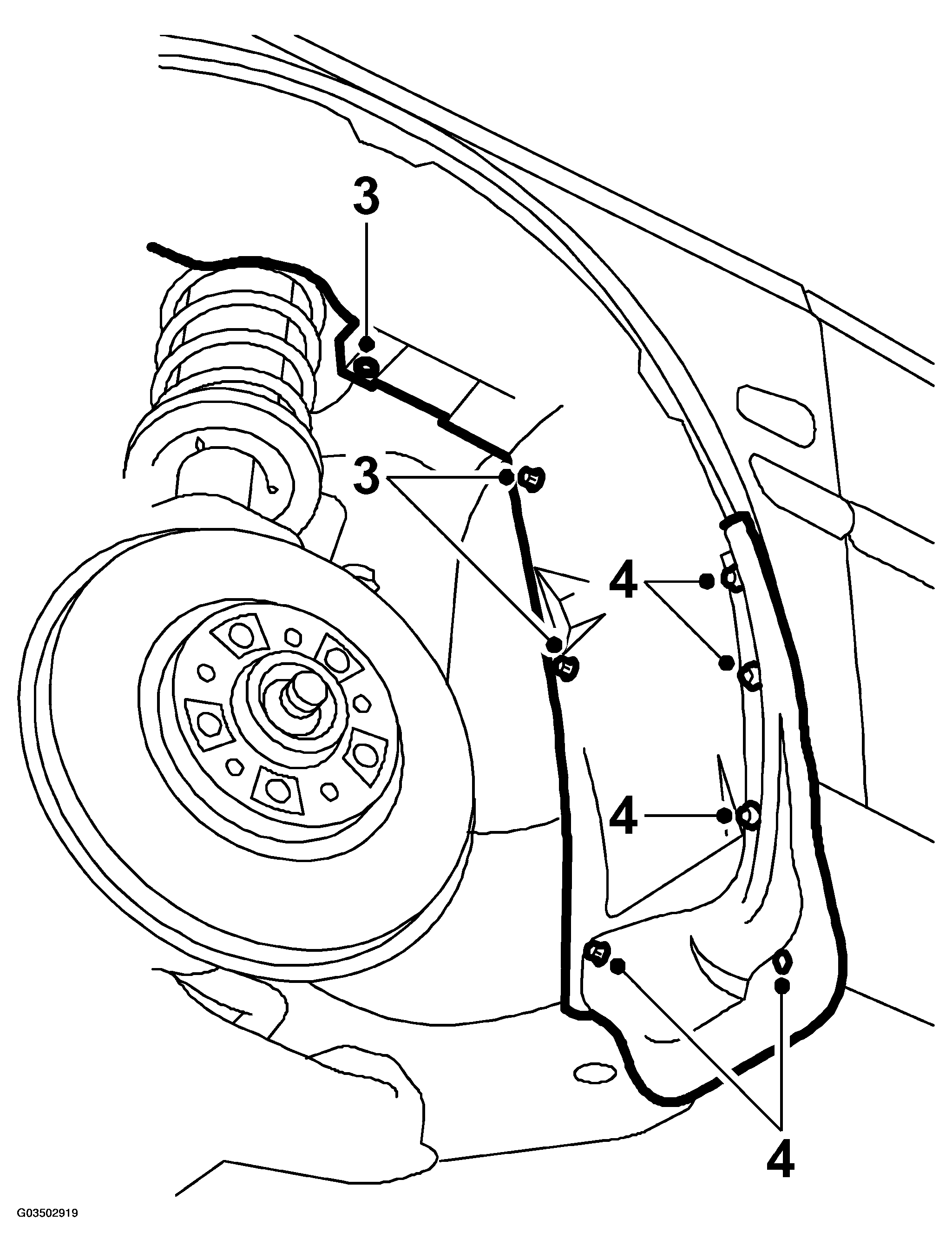

    Fig 2: Illustration For Steps 3-4
    G03502919Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the mudflap.
  5. Fit the left front wheel and lower the car to the ground.
