To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

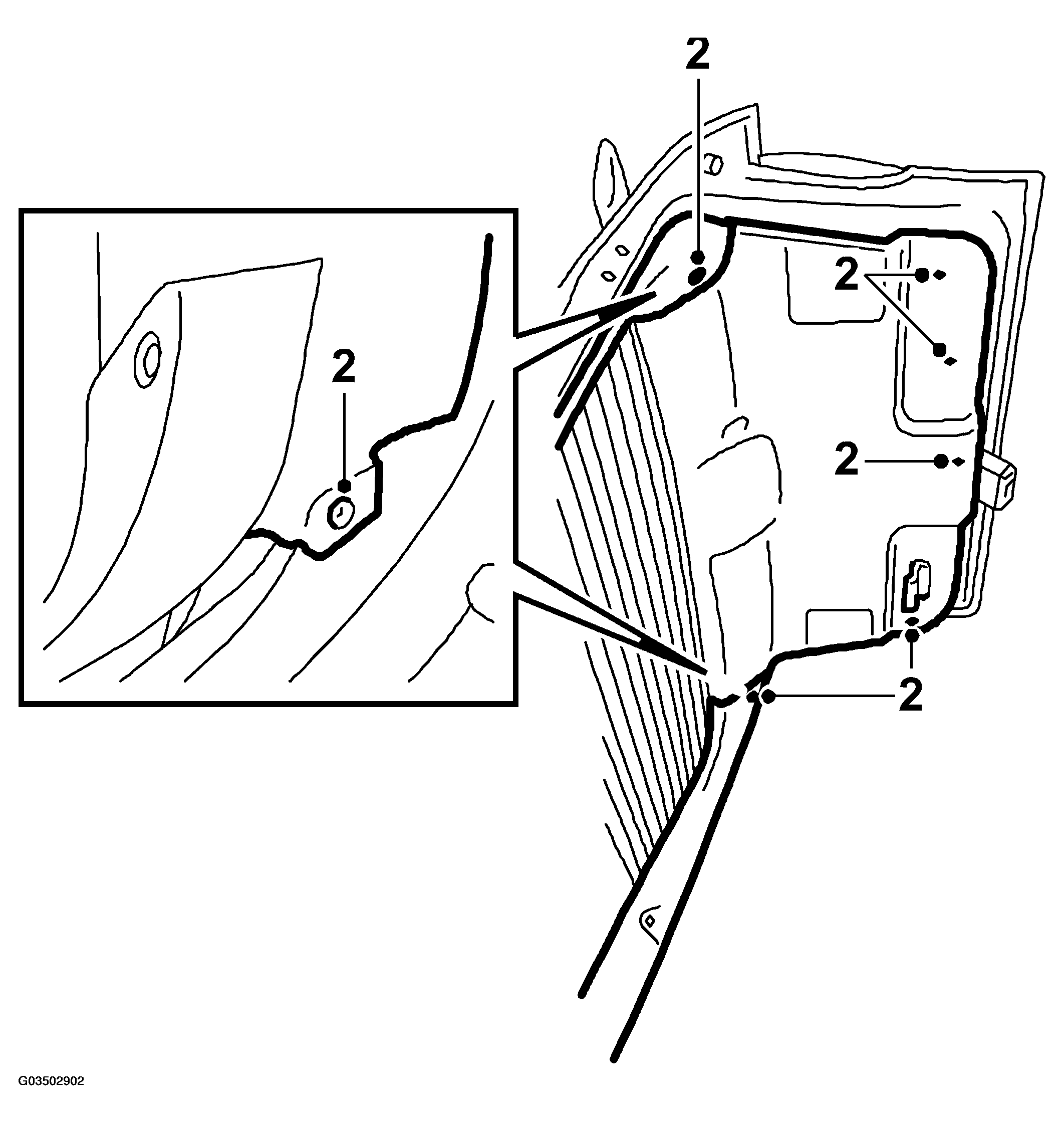

Fig 1: Illustration For Steps 2
G03502902Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the tailgate.
  2. Remove the tailgate trim.

    See DOOR TRIM, TAILGATE .

  3. Disconnect the electrical connector from the microswitch.

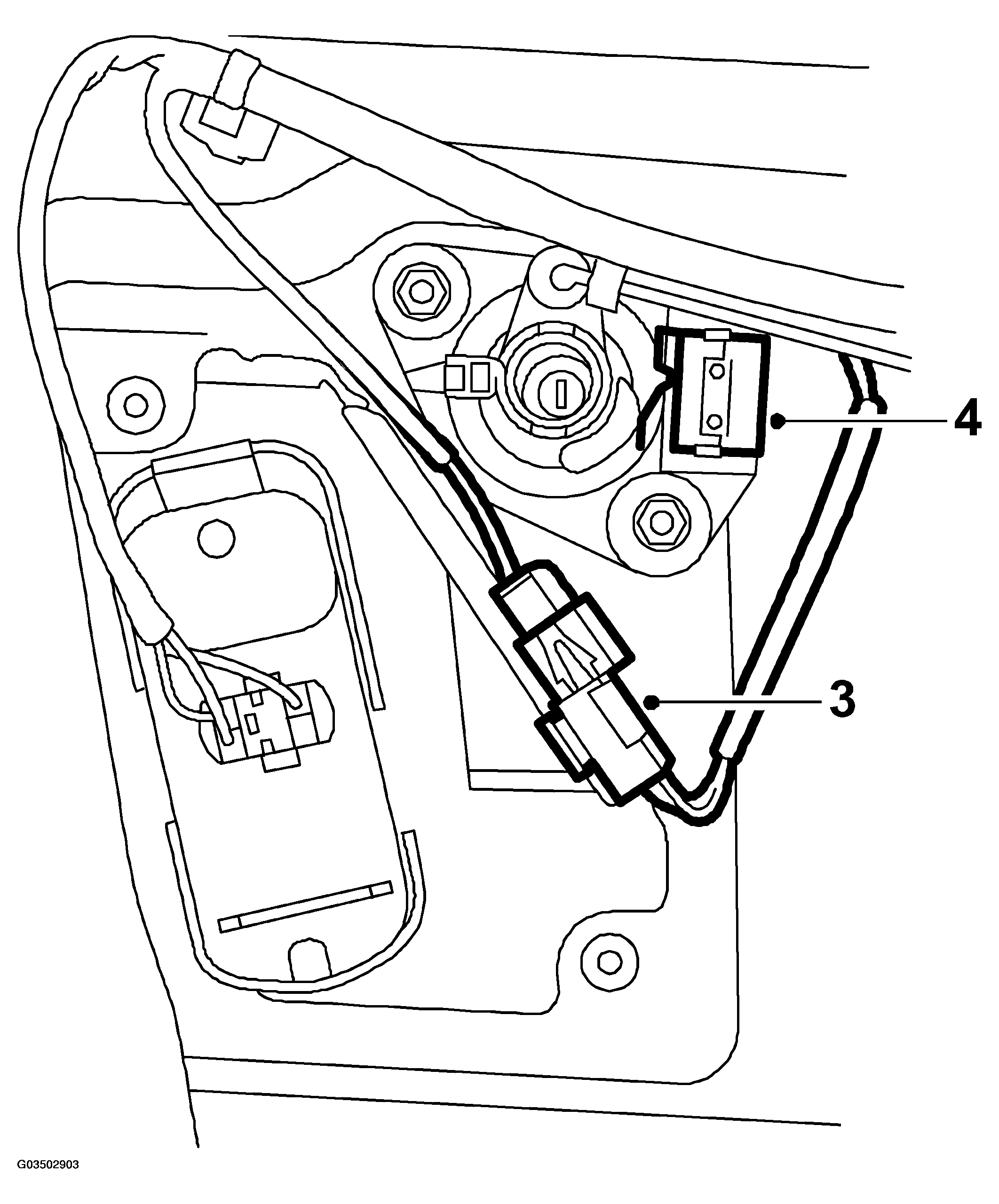

    Fig 2: Illustration For Steps 3-4
    G03502903Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Release the microswitch from the luggage compartment lock.
