To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

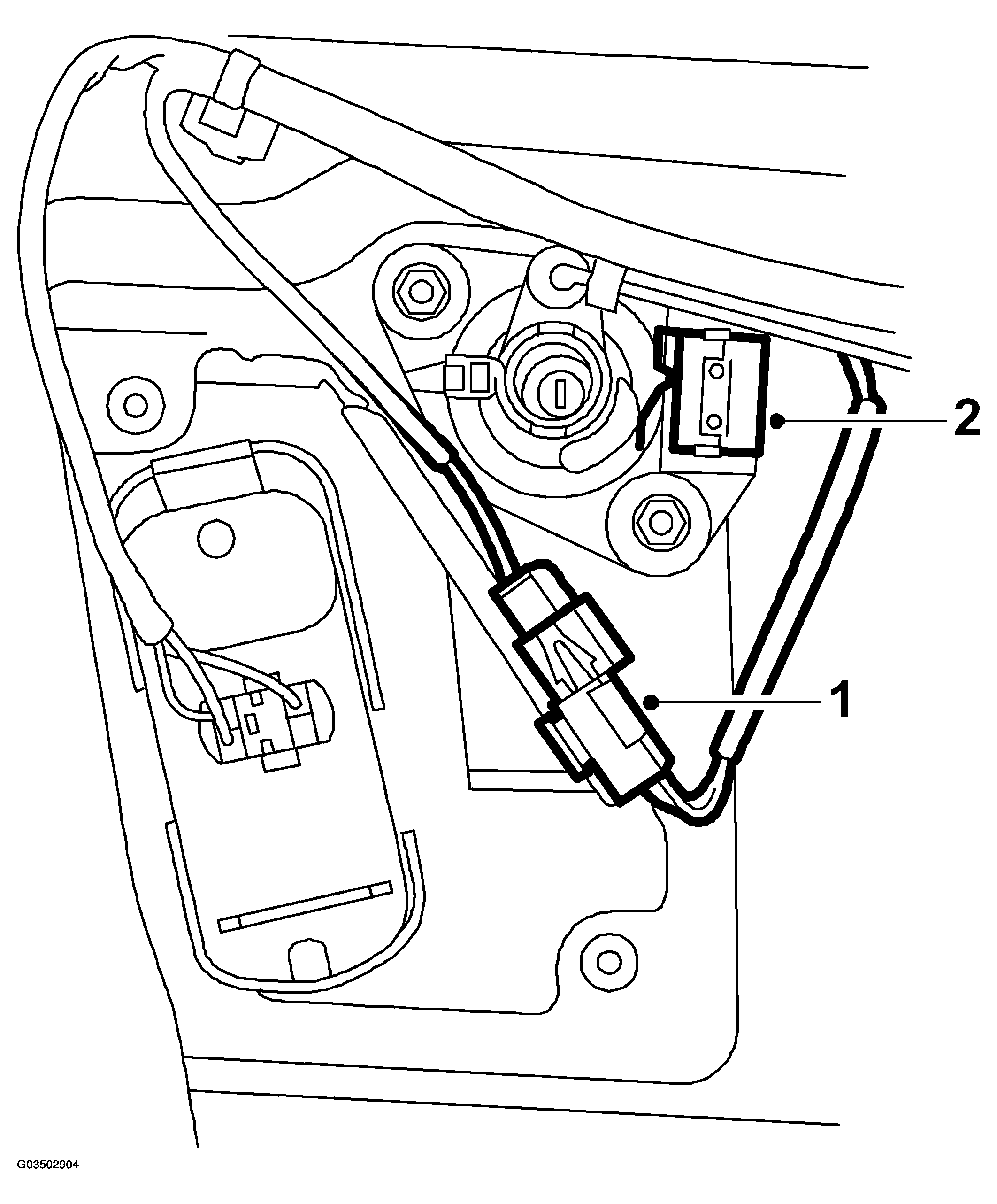

Fig 1: Illustration For Steps 1-2
G03502904Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Push the electrical connector on to the microswitch.
  2. Fit the microswitch.
  3. Fit the trim.

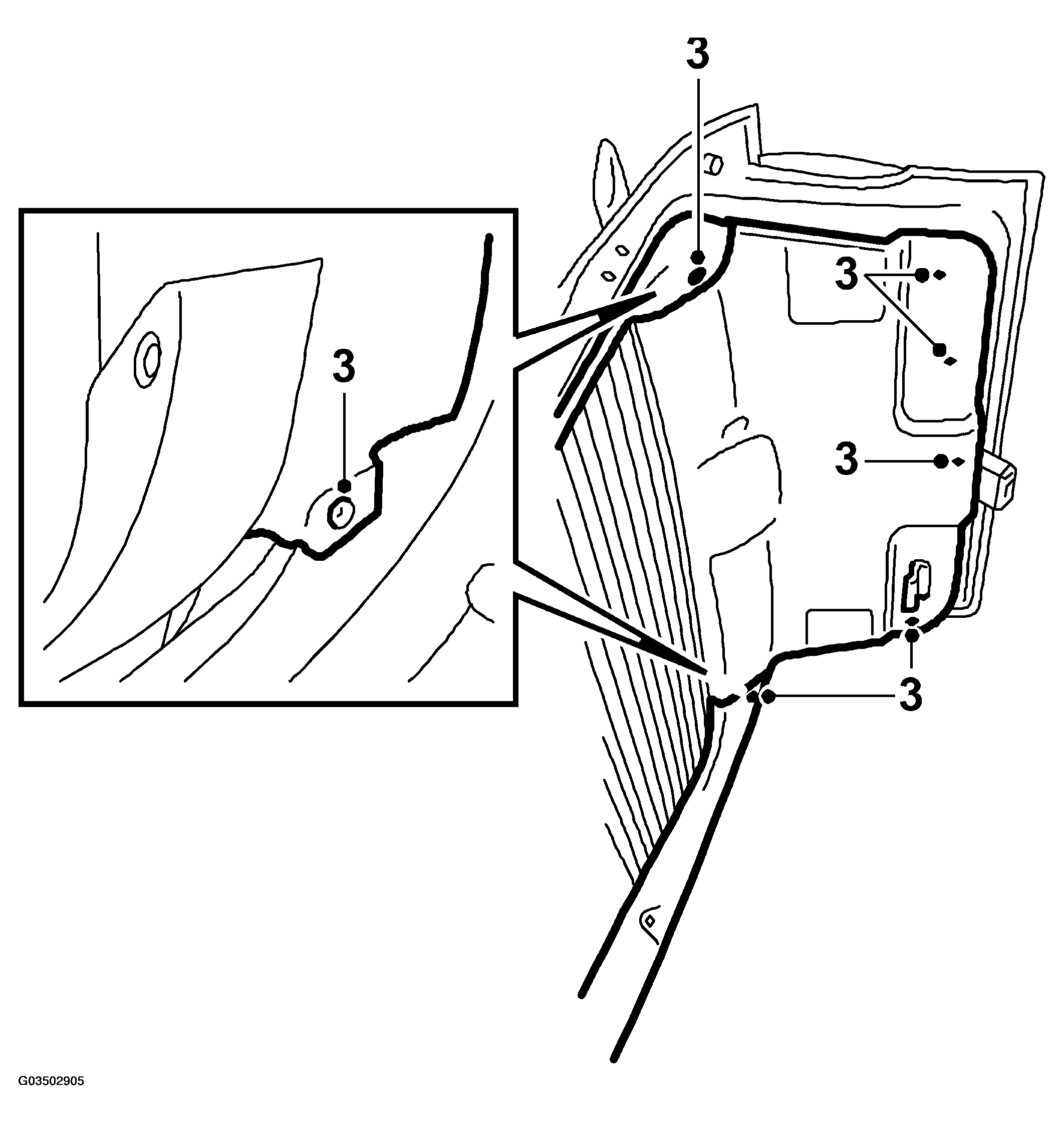

    Fig 2: Illustration For Steps 3
    G03502905Courtesy of SAAB-SCANIA OF AMERICA, INC.
