To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

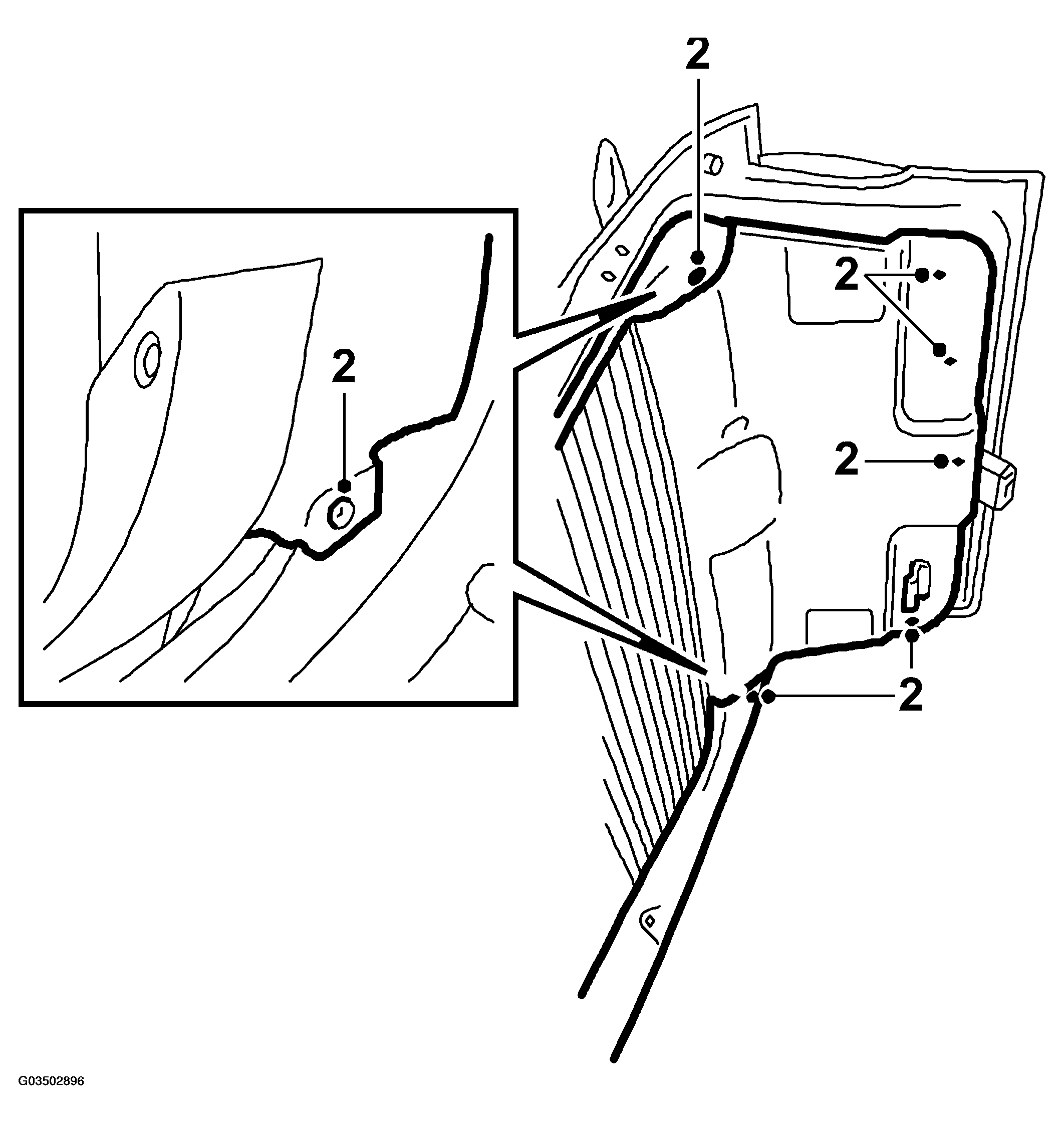

Fig 1: Illustration For Steps 2
G03502896Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The luggage compartment switch is not stocked separately as a spare part. The complete lock must be replaced.
  1. Open the tailgate.
  2. Remove the tailgate trim.

    See DOOR TRIM, TAILGATE .

  3. Loosen the pull rods from the lock (2 clips) and let them hang from the plastic joint and door handle respectively.

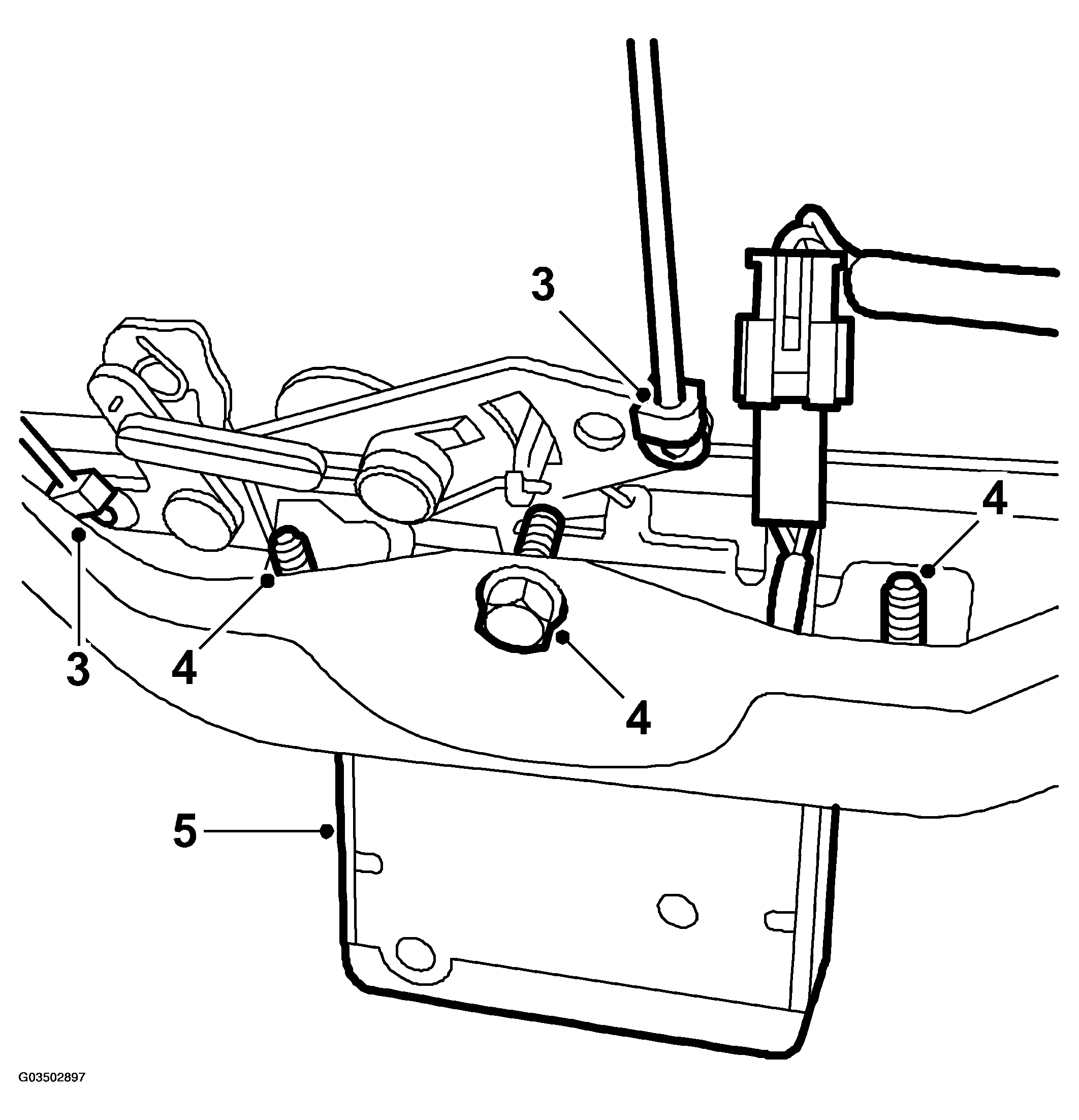

    Fig 2: Illustration For Steps 3-5
    G03502897Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the three screws holding the lock.
  5. Take the lock out from the front.
